Pepwave AP Pro
Rugged Outdoor Wi-Fi that Goes the Distance

Rugged Outdoor Wi-Fi that Goes the Distance

Call us Today at 844-294-0779 for a price quote!

Pepwave Products
Pepwave AP Pro
Peplink AP Pro
#APP-GN
List Price: $349.00
Call for Lowest Price!
Peplink AP Pro 300M
#APP-AGN
List Price: $349.00
Call for Lowest Price!
Peplink AP Pro Duo
#APP-AGN2
List Price: $549.00
Call for Lowest Price!

More pricing below, click here!

Overview:

Deliver fast and reliable Wi-Fi in even the harshest conditions with the Peplink AP Pro. The AP Pro's sealed, all-metal IP67 enclosure stands up to dirt, water, and extreme temperatures for years of dependable operation in industrial, public safety, transport, and other applications. Built-in PoE gives you more installation options and reduces deployment costs. And intuitive console- and cloud-based control makes configuration and maintenance simple for everyone.

Heat, Cold, Dust, and Water. All in a Day's Work.Heat, Cold, Dust, and Water. All in a Day's Work.
Built from tough aircraft-grade aluminum and sealed against water and dust, the AP Pro handles just about anything the factory floor, construction site, or Mother Nature can dish out. The AP Pro can also withstand temperatures from -46° to 65°C, and it's protected against ESD and surges, so it stays up and running in conditions that would quickly shut down other access points.

DC and PoE. The Power to Install Anywhere.DC and PoE. The Power to Install Anywhere.
Power can be a problem in outdoor and industrial environments. But not for the AP Pro. With onboard DC and PoE connections, the AP Pro Duo and 300M can be easily installed where other access points can't, and you won't have to spend a fortune on cabling and electricians.



Onsite or in the Cloud.Onsite or in the Cloud. Complete Control, Just a Click Away.

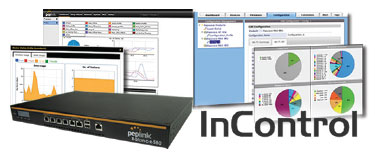

The AP Pro features Peplink's WLAN Controller for quick and simple onsite setup and configuration. Not onsite? Not a problem. Just open a Web browser and take control anywhere with our cloud-based InControl configuration and administration solution.


Features:

Network
  • Bridge Mode
  • Router (NAT) Mode
  • Wireless Distribution System (WDS)
  • Support for PPPoE, Static IP, DHCP
  • Management VLAN (802.1p)
  • Spanning Tree Protocol (802.1d)
Radio
  • Multiple SSID
  • Auto Channel Selection
  • Transmit Power Adjustment
  • Neighbor AP Detection
Client Managment
  • Per SSID
    • VLAN with QoS (802.1p/802.1q)
    • Bandwidth Control
    • MAC Address Filtering
    • Layer 2 Client Isolation
    • Limit on Max. Number of Client
  • Per Client
    • VLAN with RADIUS
    • VLAN with VLAN Pool
    • Bandwidth Control
  • Multicast Filter
  • IGMP Snooping/Multicast Enhancement
AP Security
  • Open, WEP
  • 802.1x with Dynamic WEP
  • WPA-PSK/RADIUS
  • WPA2-PSK/RADIUS
Complete VPN Solution
  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • L2TP
Captive Portal
  • By InControl
  • By FusionHub Controller
  • By Balance WLAN Controller
Device Management
  • Web Administrative Interface
  • InControl Cloud Management
  • FusionHub Controller
  • Peplink Balance WLAN Controller
  • SNMP v1, v2c and v3
Certification
FCC, CE, RoHS

Product Views:

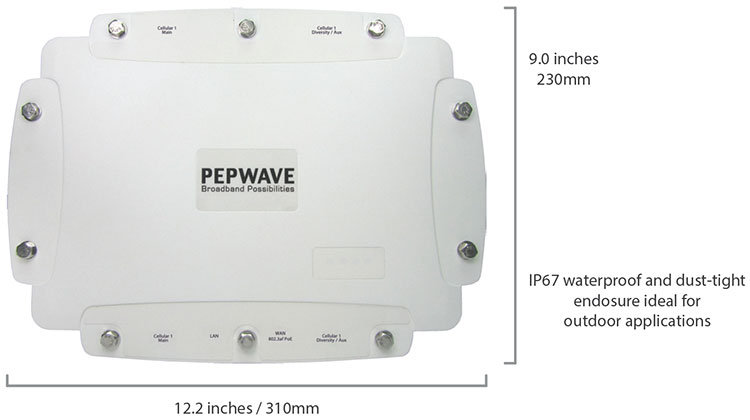

AP Pro front view

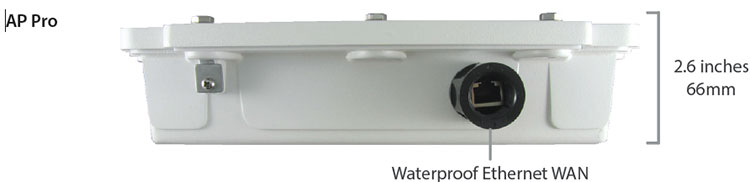

AP Pro back view

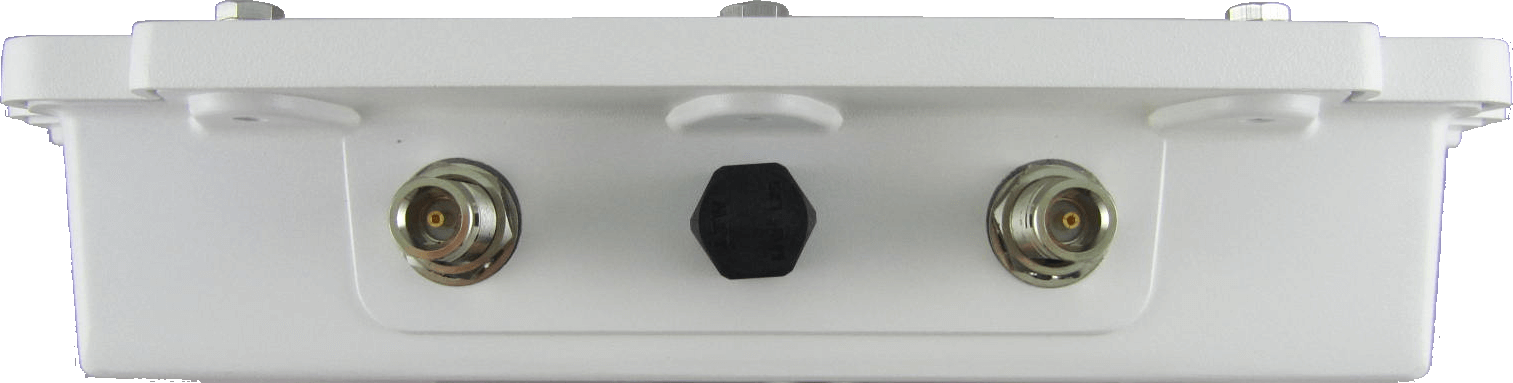

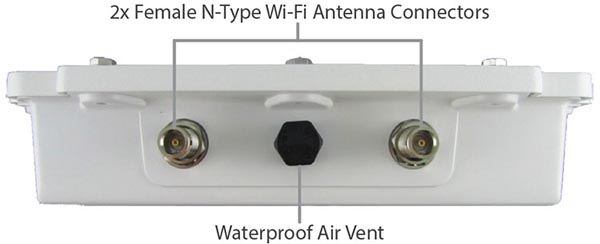

AP pro waterproof

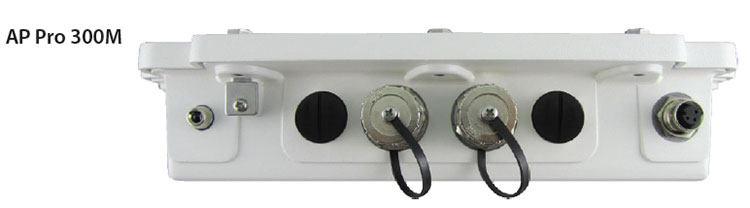

AP Pro 300M back view

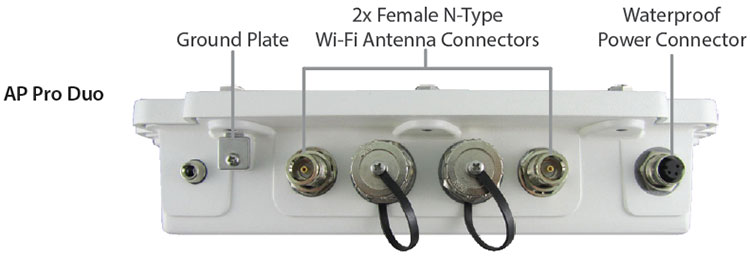

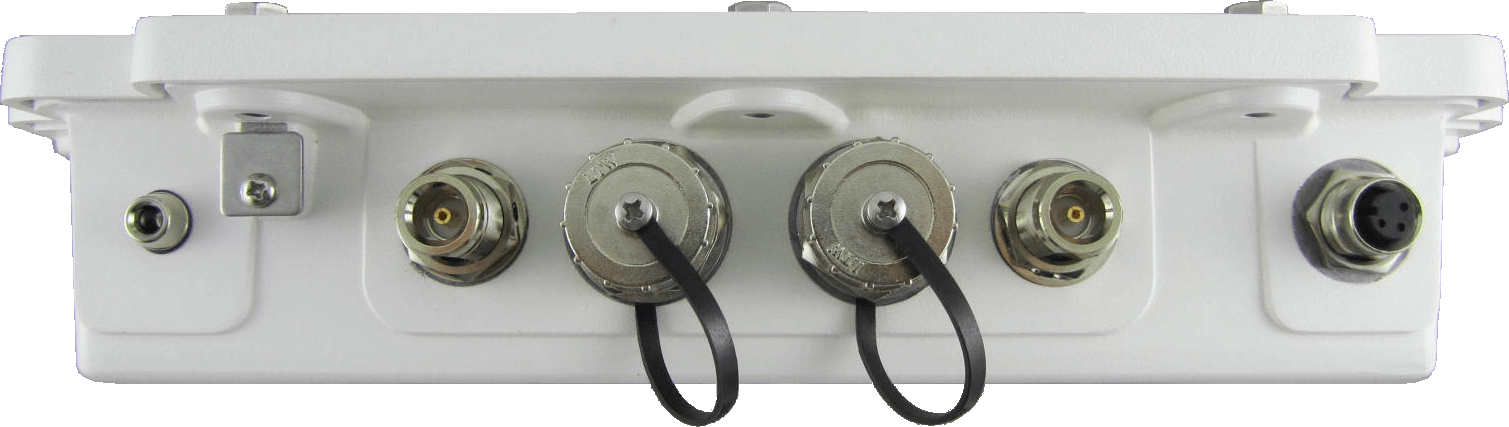

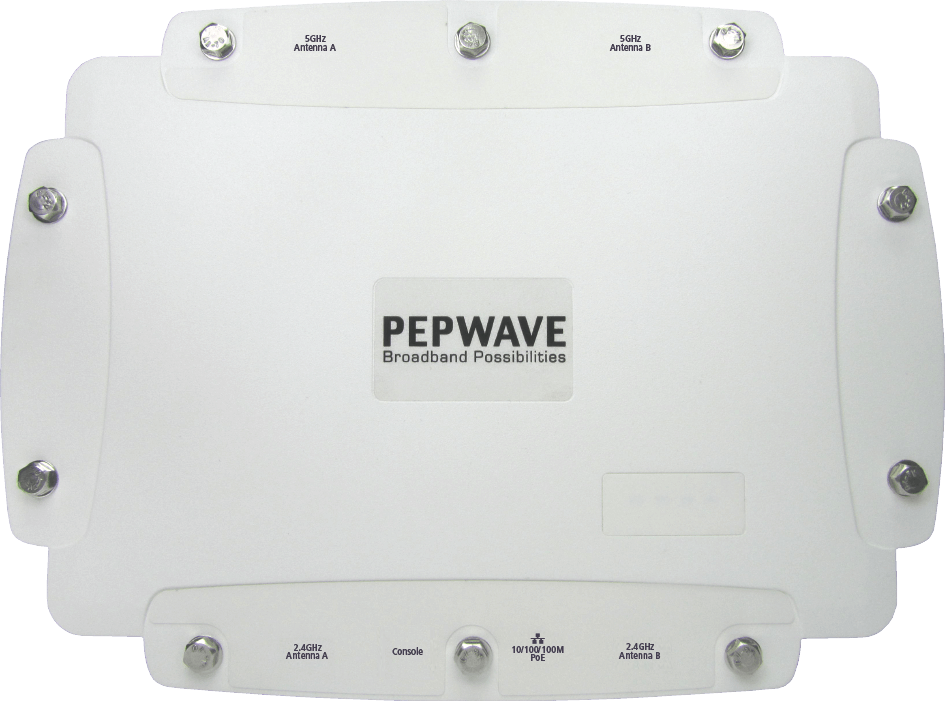

AP Pro Duo back view

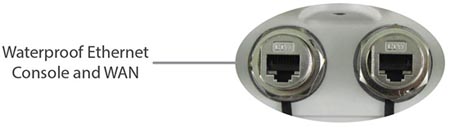

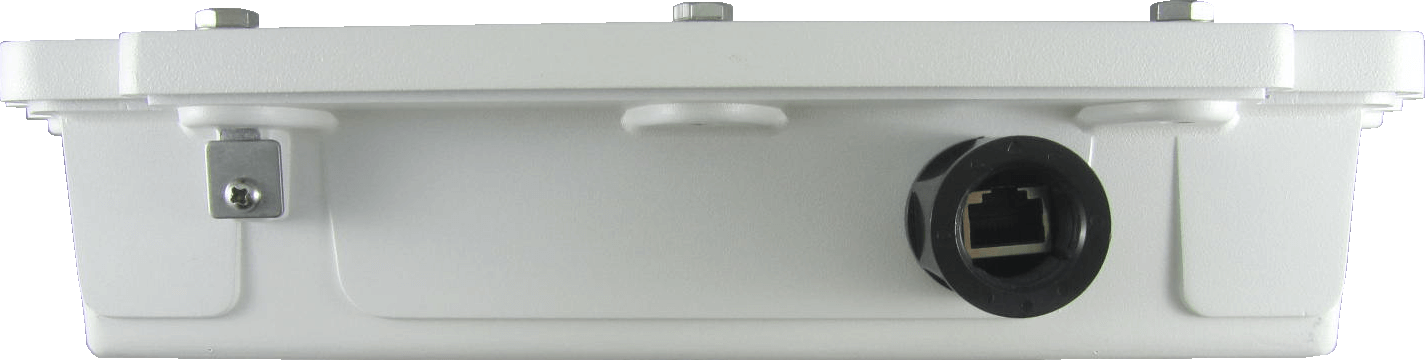

AP pro waterproof WAN

Specifications:


Model AP Pro AP Pro 300M AP Pro Duo
Product Code APP-GN APP-AGN APP-AGN2
WAN Interface 1x 10/100M Ethernet Port
LAN Interface 802.11b/g/n 300Mbps 802.11a/n or 802.11b/g/n
300Mbps
802.11a/n and 802.11b/g/n
600Mbps
Wi-Fi Operating Frequency 2412 – 2472 MHz 2412 – 2472 MHz or
5180 – 5825 MHz
2412 – 2472 MHz and
5180 – 5825 MHz
Antenna Connector 2 x Female N-Type Connector 4 x Female N-Type Connector
Enclosure IP67 Outdoor Metal Enclosure
Dimension 9.0 x 12.2 x 2.6 inches / 230 x 310 x 66 mm
Weight

5.84 pounds / 2.65 kg

Power Input Power over Ethernet 802.3af Power over Ethernet 802.3at
Device: 10V - 30V DC
Power Consumption 13W (max.) 19.5W (max.) 25.5W (max.)
Operating Temperature -40 - 149°F
-40 - 65°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave AP Pro Datasheet (PDF).

Pricing Notes:

Pepwave AP Pro
Peplink AP Pro
#APP-GN
List Price: $349.00
Call for Lowest Price!
Peplink AP Pro 300M
#APP-AGN
List Price: $349.00
Call for Lowest Price!
Peplink AP Pro Duo
#APP-AGN2
List Price: $549.00
Call for Lowest Price!
Accessories
Outdoor Wi-Fi Antenna Kit - for 802.11b/g/n 300Mbps Wi-Fi
#ACW-823
List Price: $199.00
Call for Lowest Price!
Outdoor Wi-Fi Antenna Kit - for 802.11a/n 300Mbps Wi-Fi
#ACW-824
List Price: $199.00
Call for Lowest Price!
Outdoor Wi-Fi Antenna Kit - for 802.11a/n and b/g/n 600Mbps Wi-Fi
#ACW-825
List Price: $399.00
Call for Lowest Price!
802.3af/at PoE Injector
#ACW-107
List Price: $79.00
Call for Lowest Price!
Extended Warranty
Extended Warranty for AP Pro, 1-Year
#SVL-745
List Price: $59.00
Call for Lowest Price!
Extended Warranty for AP Pro 300M, 1-Year
#SVL-746
List Price: $59.00
Call for Lowest Price!
Extended Warranty for AP Pro Duo, 1-Year
#SVL-747
List Price: $109.00
Call for Lowest Price!
Extended Warranty for AP Pro, 2-Year
#SVL-623
List Price: $109.00
Call for Lowest Price!
Extended Warranty for AP Pro 300M, 2-Year
#SVL-624
List Price: $109.00
Call for Lowest Price!
Extended Warranty for AP Pro Duo, 2-Year
#SVL-625
List Price: $179.00
Call for Lowest Price!
