Peplink Balance 750
Multi-WAN Routers - Now for every network!

Peplink Balance 750

The Peplink Balance 750 has been discontinued.



Overview:

MediaFast is our supercharged content caching solution. Designed with education and entertainment in mind, it downloads and accelerate video, iTunes U, iOS updates, app download, and other content for uninterrupted learning and fun anytime.

Prefetch. Off-Peak Downloads. Anytime, Anywhere Playback.

Schedule one-time or recurring content downloads during off-peak hours, and then playback downloaded content anytime. Need HD video and other content in places with spotty or congested Internet connections? Download whenever and wherever the connection is best. Then pack up and take the MediaFast anywhere you need seamless content delivery.

Cache. Download x1. Playback x ∞ .

Cache iTunes/iTunes U and other content automatically by domain and file type. With MediaFast, you can download once and play back over and over again, cutting loading time, bandwidth usage and cost. Keep content as long as you like or purge it automatically by file type and age.

Reporting. Insight. On-Demand.

Check bandwidth usage and savings. Track popular URLs and file types. You can also monitor client IP addresses, find your heaviest users, and more, all from a single intuitive interface.

iOS and App Caching.

Managing hundreds of iPads at your campus? The MediaFast can cache iOS updates and app downloads. Download the updates once, and apply to all iPads without consuming extra bandwidth or stressing the network.

SpeedFusion. Bonded Bandwidth. 24/7 Connectivity.

Take advantage of all available connections with SpeedFusion bandwidth bonding and load balancing. Automatic failover keeps your learners learning and teachers teaching, even when a link fails.

InControl 2 and AP Controller. Your Network. At Your Fingertips.

Monitor and manage routers, access points, and other connected devices with InControl 2 and AP Controller. Wi-Fi networks are easy to set up, and you get complete control over your entire wireless and wired network from any compatible web browser

Features:

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB 4G LTE/3G Modem Support
  • Support for Dynamic DNS Services
  • IPv6 Support

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Options
  • DHCP Reservation
  • DNS Proxy for LAN Clients

DNS*

  • Built-in Authoritative DNS
    • Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT Records

Advanced QoS

  • User Groups
    • Bandwidth Reservation *
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups SIP, HTTPS, VPN QoS Custom Application QoS

Caching

  • Video Caching
    • iTunes
    • iTunes U
    • TED.com
  • Content Caching
    • HTML
    • JavaScript
    • Image
  • Flash Application

Networking

  • NAT and IP Forwarding
  • Static Routes
  • S Port Forwarding
  • S Many to One, One to One NAT
  • S NAT Pool
  • S SIP ALG, H.323 ALG
  • S UPnP, NAT-PMP
  • SWINS Server
  • S OSPF and RIPv2 support *

AP Controller

  • Support for Pepwave AP Series
  • SAuto AP Discovery
  • SAuto AP Firmware Management
  • SAP Profile Configuration
  • S Wi-Fi usage statistics

Load Balancing

  • Intelligent Failover
  • S Session Persistence
  • S Per-Service Load Distribution
  • S Multiple Algorithms

Complete VPN Solution

  • PepVPN/SpeedFusion
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Intelligent Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • PPTP VPN Server
    • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network)

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Managment
  • Router Utility Mobile App
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Security

  • Stateful Firewall
  • DoS Prevention

Compare:


MediaFast Compare
  Branch Office/Hotspot School/Campus
Model Balance with MediaFast 200 Balance with MediaFast 500 Balance with MediaFast 750 Balance 580 Balance 710
Product Code MFA-200-W MFA-500-B MFA-750-B BPL-580 BPL-710
Disk Drive 120GB SSD 500GB SSD 1TB SSD
Cache Throughput2 200Mbps 800Mbps 1Gbps
Router Throughput3 200Mbps 800Mbps 1Gbps 800Mbps 1Gbps
Ethernet WAN Ports 2 5 7 5 7
Ethernet LAN Ports 8 (GbE)
802.3af PoE Output+
3 (GbE) 3 (GbE) 3 (GbE) 3 (GbE)
Wi-Fi Interface Simultaneous Dual-Band 802.11a/b/g/n AP
USB 4G LTE/3G WAN1 1 1 1 1 1
Wi-Fi Data Rates4 2x2 MIMO,
2.4GHz: 300Mbps
5GHz: 300Mbps
Core Functionality
Load Balancing
Video Caching
Content Caching
InControl Cloud Management
Drop-In Mode
AP Controller
Manage Pepwave AP Series
Maximum Number of AP Supported 50 100 250 100 250
Manage Remote AP & Multiple Config Profiles
VPN Functionality
PepVPN
SpeedFusion Hot Failover ^
SpeedFusion WAN Smoothing ^
SpeedFusion Bandwidth Bonding ^
Number of PepVPN/SpeedFusion Peers 2 50 300 50 300
Advanced QoS Functionality
Bandwidth Usage Monitor
QoS for VoIP and E-Commerce
User Groups Bandwidth Control
Web Blocking
Hardware
Operating Temperature 32° – 104°F
0° – 40°C
Power Consumption 38W 50W 70W 50W 70W
1U Rackmount
LAN Bypass
1 For a list of supported modems, please refer to http://www.peplink.com/modem.
2 Cache Throughput refers to the speed of routing content from hard disk to LAN.
3 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
4 The frequency range for 2.4GHz and 5GHz are 2412−2472 MHz and 5180−5825 MHz respectively.
+ Optional PoE Activation Kit is required to activate 802.3af PoE output.
^ Available as an optional add-on.

Specifications:

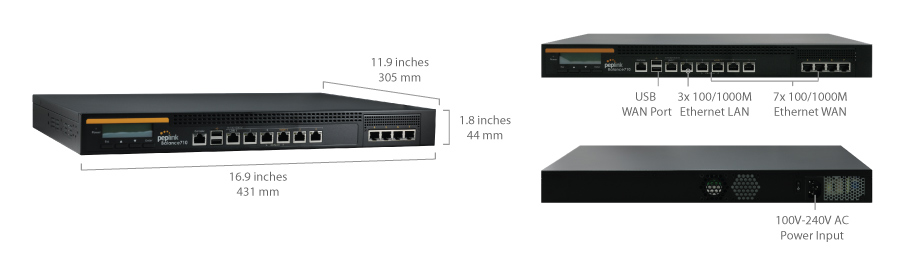

Balance 750 specs

Software

  • Peplink MediaFast Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
    • PING
    • DNS Lookup
    • HTTP
  • Bandwidth Allowance Monitor
  • IPv6 Support
  • USB 4G/3G Modem Support

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • Support for Dynamic DNS services
    • changeip.com
    • dyndns.org
    • no-ip.org
    • tzo.com
    • DNS-O-Matic
  • DNS Proxy for LAN Clients

Caching

  • Video Caching
    • ted.com
    • iTunes
    • iTunes U
  • Content Caching
    • HTML
    • JavaScript
    • Image
  • Flash Application

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Complete VPN Solution^

  • SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Intelligent Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 certificate support
  • PPTP VPN Server
  • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network)
    • X.509 certificate support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • OSPF and RIPv2 support

AP Controller

  • Support for Pepwave AP Series
  • Auto AP Discovery
  • Auto AP Firmware Management
  • AP Profile Configuration
  • Wi-Fi usage statistics

Captive Portal Support

  • Support for wired and wireless LAN clients
  • Support RADIUS authentication
  • Support LDAP authentication
  • Time and usage quotas on Open Access mode
  • Built-in customizable splash page

DNS

  • Built-in Authoritative DNS
    • Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records

Security

  • DoS Prevention
  • Stateful Firewall
  • Web Blocking

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Support and Warranty

  • 1-Year Standard Warranty
  • 1-Year Standard Support 5
  • Unlimited 8×5 Email Support
  • 90 Days Telephone Support
  • 1-Year Firmware Upgrade

Power Requirements

  • MediaFast 500: Universal Input 100V – 240V AC
  • MediaFast 200, MAX HD2 & HD4 with MediaFast, and : 12V – 48V DC

Package Content

  • MediaFast 200
    • MediaFast 200
    • 12V4A Power Supply
  • MediaFast 500
    • MediaFast 500
    • Power Cord
    • 1 Pair of Mounting Brackets
  • MediaFast 750
    • MediaFast 750
    • Power Cord
    • 1 Pair of Mounting Brackets

Certifications

  • CE
  • FCC
  • RoHS
^ Available as an optional add-on.
5 Only valid for customers who have purchased Peplink Balance devices directly from Peplink.

Feature not available in every model. Please refer to model comparison for details.
All specifications are subject to change without notice.

Documentation:

Download the Peplink Balance Datasheet (PDF).
