Pepwave Device Connector Rugged
Vendor Neutral, Long Range Wireless Bridge

Pepwave Device Connector Rugged

Call us Today at 844-294-0779 for a price quote!

Pepwave Products
Pepwave Device Connector Rugged
Device Connector Rugged
Carrier Grade 802.11n Wireless Client Bridge, 300M DB, 802.11abgn 100mW Tx Power, Rugged Metal Enclosure, PoE Injector not included.
#DCS-RUG
List Price: $299.00
Call for Lowest Price!

More pricing below, click here!

Overview:

More than a repeater, the Device Connector is a complete wireless network extension solution with advanced TruePower technology that keeps signals clean, clear, and strong from start to finish. And it's compatible with any access point and available in three rugged enclosure styles, so you can just drop it in and go – no network reconfiguration or device upgrades needed. Vendor Neutral, Long Range Wireless Bridge. Device Connector

The Coverage You Need. Made Plug-and-Play Easy.

Easily extend Wi-Fi coverage in minutes with Pepwave's Device Connector. The Device Connector gets your devices talking over a large area without wires or configuration headaches. And because it works transparently at Layer 2, the Device Connector is compatible with any access point, so there's no need to upgrade your gear to get industry-leading Wi-Fi range and performance.

Reliability in Extreme Environments.

The Device Connector is designed and manufactured with the strictest standards. It is rated to operate in almost any environment imaginable. It is just as comfortable working in desert, marine, and arctic environments as it is in the office, making it the ultimate go-anywhere drop-in solution.

CarFi Fast Roaming. WAN Reliability with Wi-Fi Mobility (Add-on Feature. Available Soon.).

CarFi Fast Roaming, available as an optional software upgrade, lets your Device Connector hop from AP to AP in a matter of seconds. Seamlessly. Without dropouts or downtime. Whether you're commanding an emergency situation, coordinating a construction project, or keeping the shelves stocked in a supermarket or warehouse, CarFi Fast Roaming keeps everyone communicating at all times.

TruePower Device Bridging. Strong Signals End-to-End.

The Peplink Device Connector features our TruePower RF technology, which delivers maximum transmission power across all links at even the highest data rates. With TruePower, you get reliable, fast connections at distances that put other radios out of reach.

Three Durable Enclosures. A Device Connector for Every Job.

Whether you work indoors or outdoors, in a clean, quiet office or on a dirty, noisy construction site, there's a Device Connector model built just for you. For indoor applications, there's our rugged metallic enclosure. For medium-duty outdoor installations, such as a factory floor, there's our IP55 high-impact plastic enclosure. And for those jobs that make other equipment run and hide, there's our aircraft-grade aluminum IP67 housing, tough as nails and ready to handle just about anything you or Nature can throw at it.

Specifications:


Network

  • Bridge Mode
  • Router (NAT) Mode
  • Wireless Distribution System (WDS)
  • Support for PPPoE, Static IP, DHCP
  • Management VLAN (802.1p)
  • Spanning Tree Protocol (802.1d)

Radio

  • Multiple SSID
  • Transmit Power Adjustment

Client Authentication

  • EAP-TTLS/EAP-PEAP/EAP-TLS
  • CHAP/MSCHAP/MSCHAPV2/PAP
  • EAP Outer Authentication Identity
  • RADIUS Server with Certificate Authentication

AP Security

  • Open, WEP
  • 802.1x with Dynamic WEP
  • WPA-PSK/RADIUS
  • WPA2-PSK/RADIUS

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing

Device Management

  • Web Administrative Interface
  • InControl Cloud Management
  • SNMP v1, v2c and v3

Power Requirements

  • DCS-RUG/DCS-GN-IP55/DCS-AGN-IP55
    • Universal Input
    • 100V – 240V AC

Package Content

  • DCS-AGN
    • 12V2A Power Supply
    • 3x Dual-Band 5dBi Omni Antenn
  • DCS-GN-IP55/DCS-AGN-IP55
    • 12V2A Power Supply

Certification

  • FCC, CE, RoHS

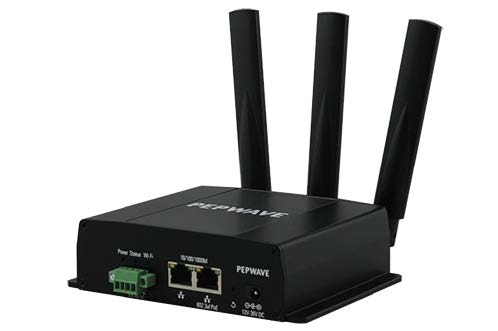

Device Connector – Indoor Rugged

Device Connector – Indoor Rugged Specifications

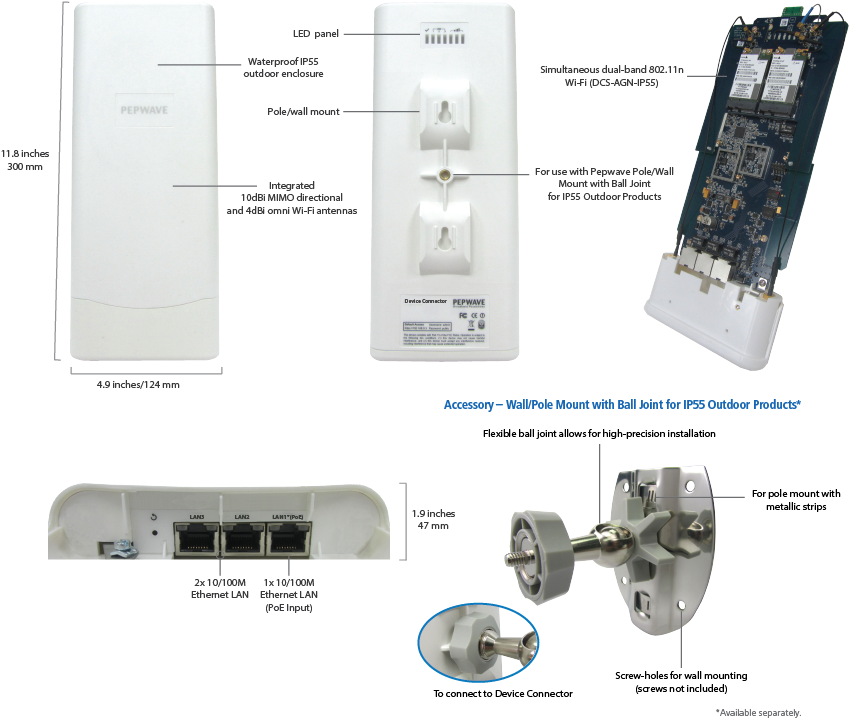

Device Connector – Outdoor IP55 Compact

Device Connector – Outdoor IP55 CompactSpecifications

Model Comparison:


  Indoor Rugged Outdoor IP55 Compact
Model Device Connector Rugged Device Connector IP55
Product Code DCS-RUG DCS-GN-IP55
Wi-Fi Interface
Data Rate 3x3 MIMO,
2.4GHz: 450Mbps,
5GHz: 1300Mbps
2x2 MIMO,
2.4GHz: 300Mbps
802.11b/g/n Wi-Fi
802.11a/n Wi-Fi
Transmit Power 2412 - 2472 MHz: 24dBm (FCC)/17dBm (CE)
5180 - 5825 MHz: 22dBm (FCC)/17dBm (CE)
2412 - 2472 MHz:
26dBm (FCC)
20dBm (CE)
Maximum Concurrent Users 60 60
Built-in Wi-Fi Antenna ^
Ethernet Interface
Ethernet Port 2 3
Hardware Features
Enclosure Indoor Metal IP55 Outdoor Enclosure

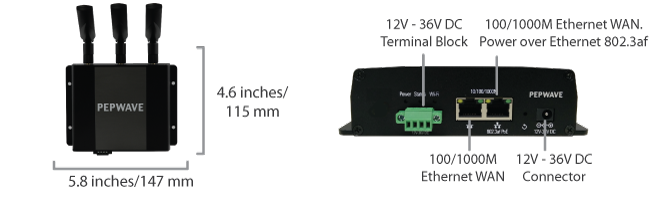

Dimension 5.8 x 4.6 x 1.6 inches
147 x 115 x 40 mm
11.8 x 4.9 inches
300 x 124 mm
Weight 0.93 pound
420 grams
1.15 pounds
520 grams
Power Input AC Adapter: AC Input 100V to 240V, DC Output 12V, 2A
Terminal Block: 12V - 36V DC
Pepwave Passive PoE:
12V – 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)
Power Consumption 13W (max.) 15W (max.)
Operating Temperature -4° – 149°F
-20° – 65°C
Humidity 15% - 95% (non-condensing)
Certifications
FCC, CE, RoHS
RF Port Lighting Immunity:
ITU-T K.20 (+/- 1.5 kV)
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave Device Connector Datasheet (PDF).
