Pepwave MAX 700
The ultimate in mobile connectivity

Pepwave MAX mobile router

Call us Today at 844-294-0779 for a price quote!

Pepwave Products
Pepwave MAX Mobile Router
MAX 700
#MAS-GN2-R
Call for Lowest Price!

More pricing below, click here!

Overview:

Turbocharged Mobile Access. Anytime. Everywhere.

The Pepwave MAX On-The-Go/700 bonds the bandwidth four 4G LTE/3G USB modems using SpeedFusionTM technology to deliver secure and fast Internet or VPN connections anywhere. You can even create your own hotspot or boost your bandwidth with available Wi-Fi connections using built-in 802.11n networking, making the MAX On-The-Go/700 the ultimate mobile connectivity solution.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Unparalleled Modem Compatibility

Supports 250+ USB cellular modems from more than 100 carriers. You can plug in and start surfing instantly. But if not, just connect your modem and turn on Remote Assistance – our engineers will get right to work on adding support for your modem.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Customize Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.

Certified Toughness

In addition to rugged metal enclosure, HD4 has certifications on: Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) Railway applications (EN 50155) Electromagnetic Compatibility (EN 61000)

Applications:

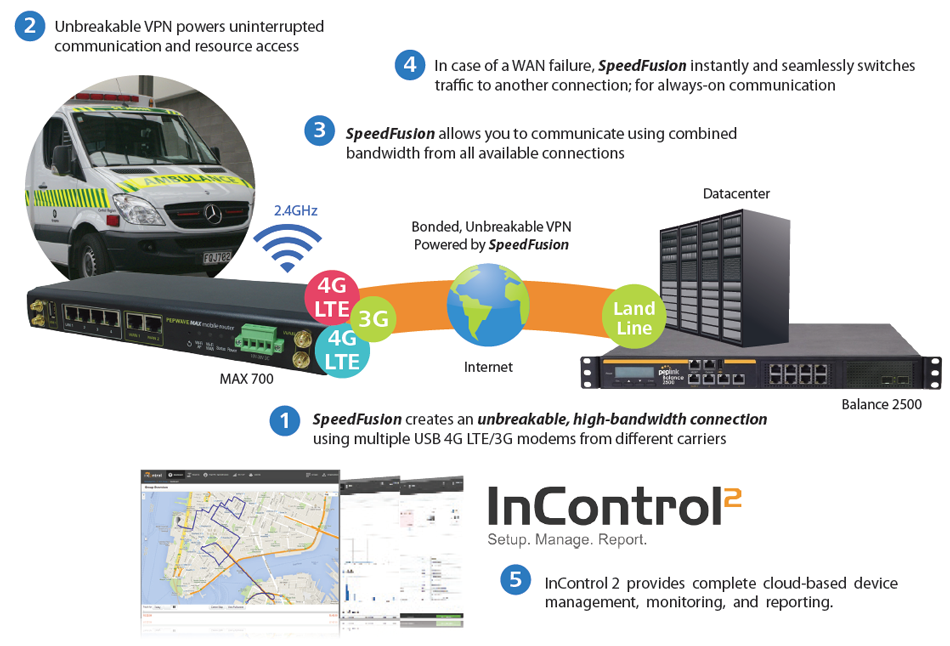

First Responders – Unbreakable VPN for Mission-Critical Emergency Communication

First Responders – Unbreakable VPN for Mission-Critical Emergency Communication

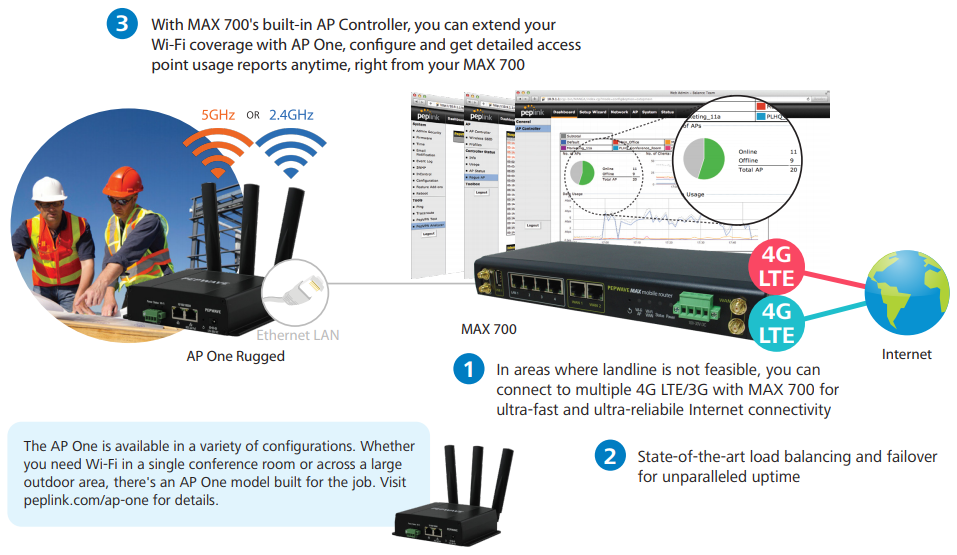

SMBs – Landline Alternative for Construction Site and Remote/Temporary Workstation

SMBs – Landline Alternative for Construction Site and Remote/Temporary Workstation

Broadcasting and Media – Blazing Fast Video Broadcast on Multiple 4G LTE/3G Links

Broadcasting and Media – Blazing Fast Video Broadcast on Multiple 4G LTE/3G Links



Specifications:

Software

  • Pepwave MAX Firmware

USB Cellular Modem Support

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB Cellular Modem Support
  • IPv6 Support
  • Support for Dynamic DNS services

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • IPsec VPN (Network-to-Network) 1
    • X.509 Certificate Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA support

Captive Portal Support

  • Support for Wired and Wireless LAN Clients
  • Support for RADIUS Authentication
  • Support for LDAP Authentication2
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Package Content

  • MAX 700
  • 12V3A Power Supply
  • 4x 5dBi Wi-Fi Antennas
  • 1 Pair of Mounting Brackets

Certifications

  • FCC, CE, RoHS
  • Shock and Vibration Resistance – EN 61373:1999 IEC 61373:1999
  • RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)

1 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
2 Feature is available as an upgrade.

MAX On-The-Go/700 Specifications

All specifications are subject to change without notice.

Compare:

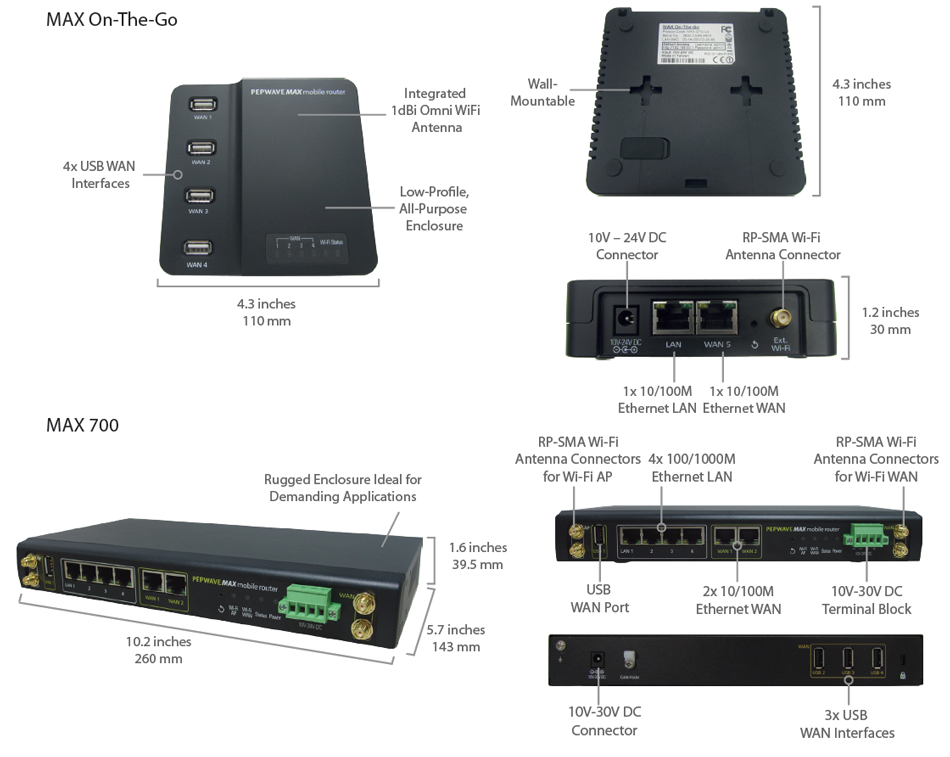

Model MAX On-The-Go MAX 700
Ethernet WAN Ports 1 (FE) 2 (GE)
Ethernet LAN Ports 1 (FE) 4 (GE)
USB WAN Modem Port 4 4
Wi-Fi WAN 1 *
Wi-Fi AP 1
Wi-Fi Standard 802.11a/n or /b/g/n 150Mbps 802.11b/g/n
300Mbps 2x2 MINO
Transmit Power (2.4GHz) 20dBm 29dBm
Transmit Power (5GHz) 20dBm
Recommended Users 2 1-25 1-50
Router Throughput 3 100Mbps 100Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion Bandwidth Bonding #
Number of PepVPN SpeedFusion Peers 2 2
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 60Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 30Mbps
Central Management
InControl Cloud Management
GPS Fleet Management
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Support 10
Hardware Features
Enclosure Low-Profile, All-Purpose Indoor Metal
Terminal Block Power Connector for
Mobile/Vehicular Deployment
Dimensions
(Height x Width x Depth)
1.2 x 4.3 x 4.3 inches
30 x 110 x 110 mm
1.6 x 10.2 x 5.7 inches
39.5 x 260 x 143 mm
Weight 0.43 pound
195 grams
2.65 pounds
1.2 kg
Operations
AC Adapter AC Input 100V-240V
DC Output 12V, 2A
AC Input 100V - 240V
DC Output 12V
Power Input DC 12V - 48V 2A DC 10V - 30V DC, 3A
Terminal Block DC 10V - 30V DC, 3A
Power Consumption 9W (without modems)
20W (max.)
25W (max.)
Operating Temperature -14° – 149°F
-10° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Certifications – Rolling Stock
Shock and Vibration Resistance:
EN 61373:1999 IEC 61373:1999
Warranty 1-Year Limited Warranty

1The frequency range for 802.11b/g/n Wi-Fi and 802.11a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
* The MAX On-The-Go supports only one of 802.11b/g/n and 802.11a/n Wi-Fi at a time.
# Feature is available only on MAX-OTG-U4-SF.

Documentation:

Download the Pepwave On-The-Go/700 Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).
