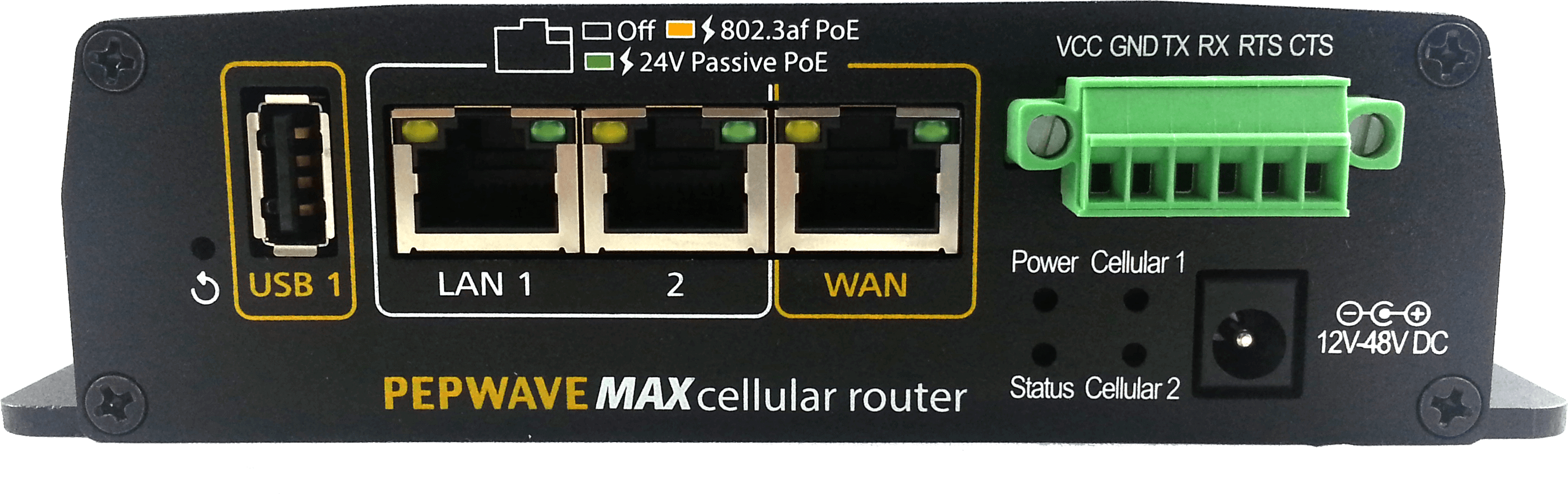

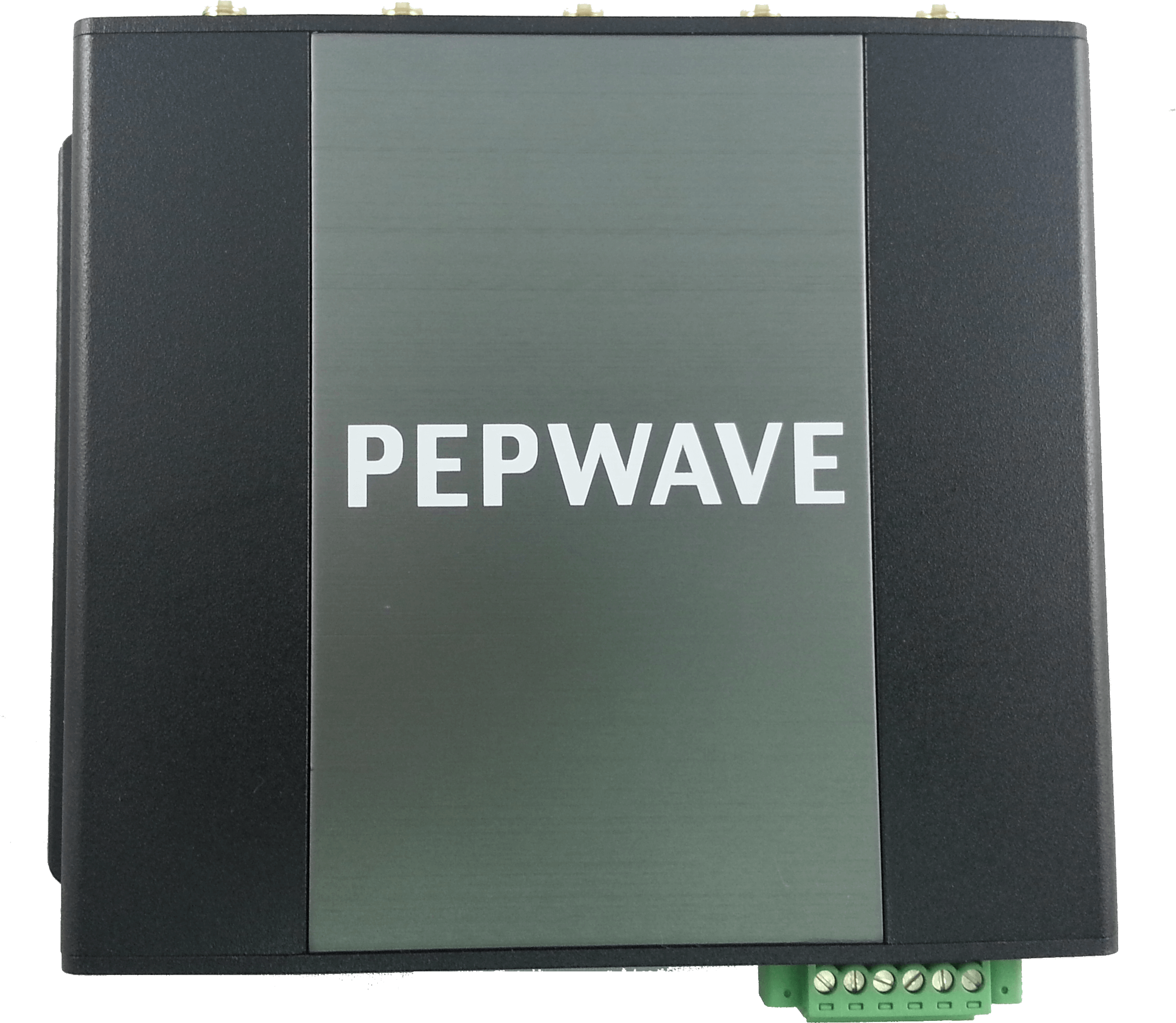

Pepwave MAX HD2 Mini
Mission Critical 4G LTE/3G Bandwidth Bonding Router

Pepwave MAX HD2 Mini

Call us Today at 844-294-0779 for a price quote!

Pepwave Products
Pepwave MAX HD2 mini
MAX HD2 mini LTE
#MAX-HD2-MINI-LTE-US-T
Call for Lowest Price!

More pricing below, click here!

Overview:

Compact Dual 4G LTE Mobile Router

The HD2 mini packs big features, such as dual embedded cellular, SpeedFusion bandwidth bonding, and PoE, into a tough, compact enclosure that stands up to life on the go.

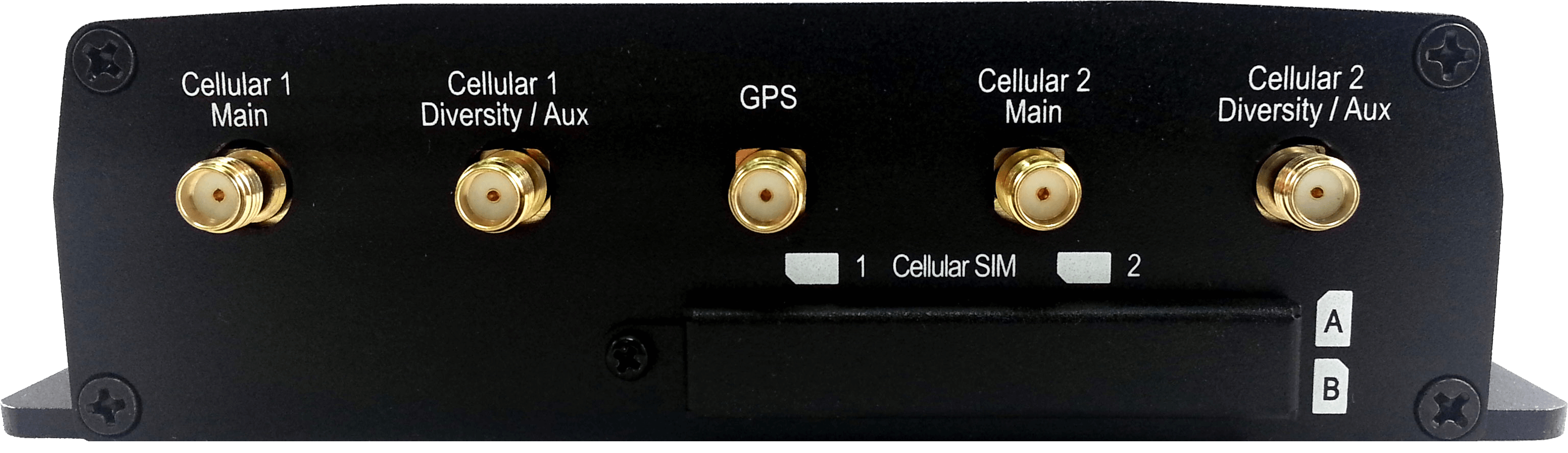

Dual Cellular and Redundant SIM Slots

Dual Cellular and Redundant SIM slots allow you to use the same or different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Meet Strict Security Compliance

Got a strict no-Wi-Fi security policy? Configured without Wi-Fi, the BR1 ENT is a great choice for deployments with compliance requirements.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Customize Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.

Certified Toughness

In addition to rugged metal enclosure, HD2 mini has certifications on: RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV) Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) Railway applications (EN 50155) Electromagnetic Compatibility (EN 61000)

Applications:

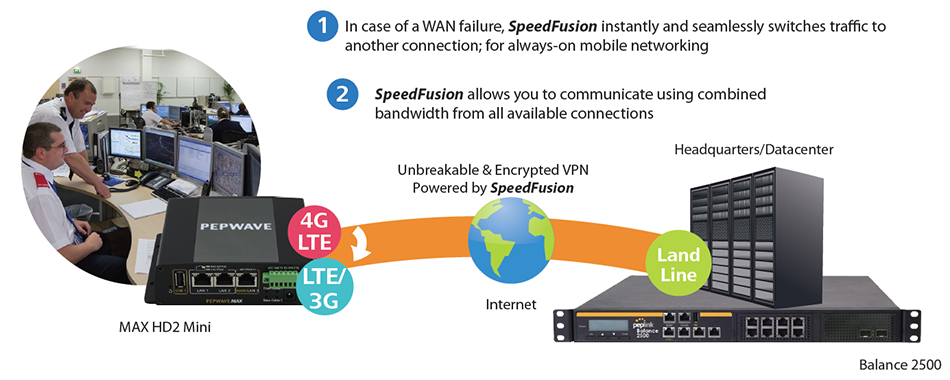

Government/Military – Uninterrupted Communication and Resource Access

Government/Military – Uninterrupted Communication and Resource Access

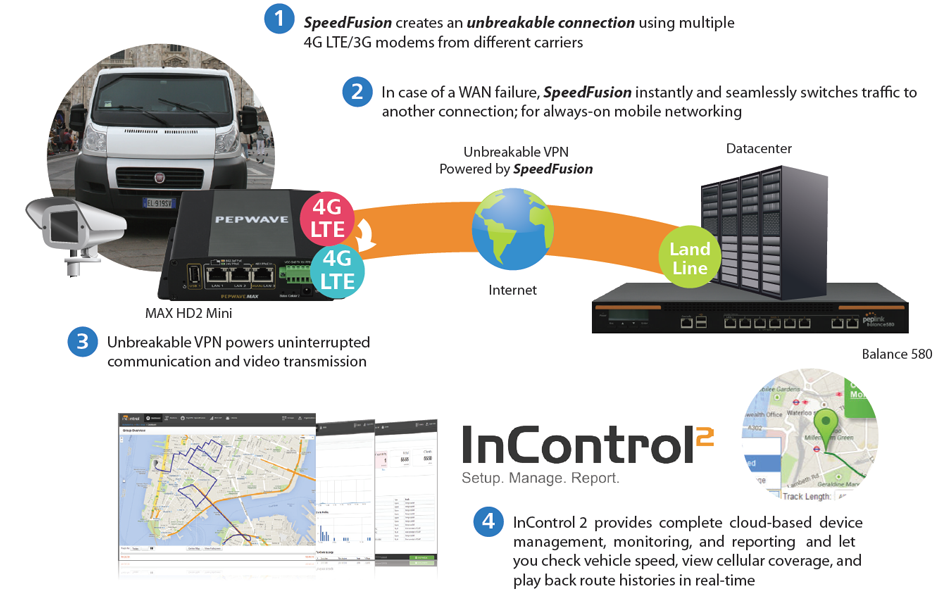

Armored Vehicles/Highway Patrol – Video Streaming Solution

Armored Vehicles/Highway Patrol – Video Streaming Solution

Specifications:


Software

  • Pepwave MAX Firmware

USB 3G/4G LTE Modem Support

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB 3G/4G LTE Modem Support
  • IPv6 Support
  • Support for Dynamic DNS services

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow
    • Least Used
    • Lowest Latency

Global Positioning System

  • Integrated GPS
  • Device Location Map
  • Location Tracking Data
    • GPS eXchange Format (GPX)
    • Up to Seven Days
  • Fleet Management with InControl 2

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Bandwidth Aggregation
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • PPTP VPN Server
    • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) 1
    • X.509 Certificate Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server
  • VRRP HA support

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Advanced QoS

  • User Groups
    • Bandwidth Reservation
    • Individual Bandwidth Limit
  • Application Prioritization
    • By User Groups
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Captive Portal Support

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Package Content

  • MAX HD2 mini
  • 12V2A Power Supply
  • 1x GPS Active Antenna
  • 4x 2dBi 4G LTE Antennas

Certifications

  • FCC, CE, RoHS
  • Shock and Vibration Resistance – EN 61373:1999 IEC 61373:1999
  • RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)

1 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

MAX HD2 Mini Specifications

All specifications are subject to change without notice.

Compare:


Model MAX HD2 MAX HD2 mini MAX HD4 MAX HD2/HD4 with MediaFast
Ethernet WAN Ports 2 (GE) 1 (GE) 2 (GE) 2 (GE)
Ethernet LAN Ports 4 (GE) 2 (GE) 8 (GE) 8 (GE)
Embedded 4G LTE/3G 2 2 4 2/4
Redundant SIM Slots
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
USB WAN Modem Port 1 1 1 1
Wi-Fi WAN 1
Wi-Fi AP 1
Wi-Fi Standard 802.11b/g/n
300Mbps 2x2 MIMO
802.11a/b/g/n
300Mbps 2x2 MIMO
802.11a/b/g/n
300Mbps 2x2 MIMO
Transmit Power (2.4GHz) 29dBm 24dBm 24dBm
Transmit Power (5GHz) 18dBm 18dBm
Recommended Users 2 1-50 1-50 50-500 1-50/50-500
Router Throughput 3 100Mbps 200Mbps 300Mbps 80Mbps
Cache Throughput 4 150Mbps
Disk Drive 120GB SSD
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion Bandwidth Bonding *
Number of PepVPN SpeedFusion Peers 2 2 2 2
PepVPN/SpeedFusion Throughput
(No Encryption)
60Mbps 100Mbps 150Mbps 150Mbps*
PepVPN/SpeedFusion Throughput
(256-bit AES)
30Mbps 60Mbps 120Mbps 120Mbps*
Central Management
InControl Cloud Management
GPS Fleet Management
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Support 10 10 10 10
Hardware Features
Enclosure Indoor Metal Indoor Metal Indoor Metal Indoor Metal
PoE Output Up To Three 802.3af PoE Outputs # Up to Eight 802.3af PoE Outputs # Up to Eight 802.3af PoE Outputs #
Terminal Block Power Connector for Mobile/Vehicular Deployment

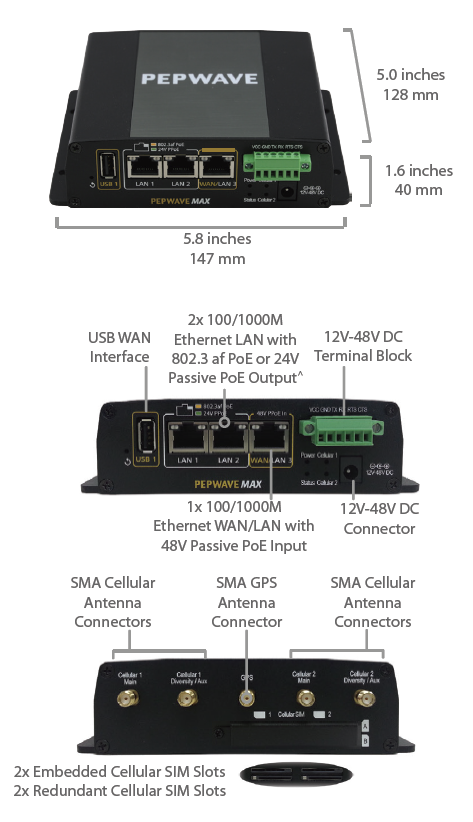

Dimensions
(Height x Width x Depth)
1.6 x 10.2 x 5.7 inches
40 x 260 x 143 mm
1.6 x 5.8 x 5 inches
40 x 147 x 128 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
1.9 x 11.5 x 6.9 inches
50 x 292 x 177 mm
Weight 2.65 pounds
1.2 kg
0.96 pounds
0.5 kg
4.20 pounds
1.9 kg
4.20 pounds
1.9 kg
Operations
AC Adapter AC Input 100V - 240V
DC Output 12V
AC Input 100V - 240V
DC Output 12V or 48V
AC Input 100V - 240V
DC Output 12V
AC Input 100V - 240V
DC Output 12V
Power Input DC 10V - 30V, 3A DC 12V - 48V, 2A DC 12V - 48V, 4A DC 12V - 48V, 4A
Terminal Block DC 10V - 30V, 3A DC 12V - 48V, 2A DC 12V - 48V, 4A DC 12V - 48V, 4A
Power Consumption 25W (max.) 15W (max.) 38W (max.) 38W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)
Certifications – Motor Vehicle
E-Mark
Certifications – Rolling Stock
Shock and Vibration Resistance:
EN 61373:1999 IEC 61373:1999
EN 50155: Railway Applications -
Electronic Equipment used on Rolling Stock
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

1 The frequency range for 802.11b/g/n Wi-Fi and 802.11a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
4 Cache Throughput refers to the speed of routing content from disk drive to LAN.
* Available as an optional add-on.
# Optional PoE Activation Kit is required to activate 802.3af PoE Output.

Documentation:

Download the Pepwave MAX HD2 Mini Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).
