Peplink - Dual-WAN, Multi-WAN Internet Link Load Balancing Routers

Peplink Max Transit
Multi-LTE Router for Transportation Wi-Fi

Peplink Max Transit

Call us Today at 844-294-0779 for a price quote!

Peplink Products
Peplink Max Transit
MAX Transit 1xLTE
Industrial-Grade M2M 4G Router, 1x Embedded 4G LTE Modem (North America), 1x Ethernet WAN, 802.11ac/a/b/g/n Wi-Fi AP, GPS/Fleet Tracking, Full antenna set
#MAX-TST-US-T
List Price: $899.00
Call for Lowest Price!
MAX Transit 2xLTE
Multi-LTE Router for Transportation Wi-Fi, 2x Embedded International LTE Modems, 1x Ethernet WAN, 802.11 ac/a/b/g/n, Full antenna set
#MAX-TST-DUO-US-T
List Price: $1,499.00
Call for Lowest Price!

More pricing below, click here!

Overview:

The MAX BR1 Slim is compact (1.1 x 3.8 x 4.8 inches) and tough enough to install just about anywhere, and it offers advanced features such as GPS fleet tracking, remote management, and USB or terminal block power capability.

carriers supported

dual sim slots

Dual Embedded Cellular and Redundant SIM Slots
Up to two cellular modems and redundant SIM slots allow you to use up to four different cellular providers for bandwidth bonding, data overage protection or eliminating blind spots.

dual band wifi

Simultaneous Dual-Band Wi-Fi
Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi gives you two independent networks that also work together, maximizing the throughput that your passengers can enjoy.

social wifi

Captive Portal with Social Wi-Fi
The MAX Transit comes with a customizable captive portal what allows passengers to login with Facebook. As they login, you can use InControl 2 to see insightful reports on user demographics.

advertising servers

External Captive Portal for Advertising Servers
The MAX Transit also supports external captive portals, enabling you to connect to an advertising server. That way, your Wi-Fi hotspots can become a source of revenue.

install anywhere

Install it Anywhere
With mounting ears that can be installed from many angles and optional DIN rail mounts, the MAX Transit is ready to fit into just about any space you have available.

certification

Certified Toughness
In addition to rugged metal enclosure, the MAX Transit has certifications on: Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) Railway applications (EN 50155) Electromagnetic Compatibility (EN 61000) eMark (ref: E13*10R00*10R05*13664*00)

Specifications:


MAX Transit Specifications
  MAX-TST MAX-TST-DUO
Cellular WAN Interfaces Single LTE Modem Dual LTE Modems
SpeedFusion Hot Failover
SpeedFusion WAN Smoothing
SpeedFusion Bandwidth Bonding
Outbound Policy
WAN Interface 1x GE+
LAN Interface 1x GE
Load Balancing/Failover
Router Throughput 400Mbps
SpeedFusion Throughput (No Encryption) 100Mbps
SpeedFusion Throughput (256-bit AES) 60Mbps
Recommended Users 150
LTE Modem Downlink/Uplink Datarate: 100Mbps/50Mbps
LTE-A Modem Downlink/Uplink Datarate: 300Mbps/50Mbps
Wi-Fi Standard 802.11ac/a/b/g/n 2x2 MIMO
2.4GHz / 5GHz 300Mbps / 866Mbps
Simultaneous Dual-Band Wi-Fi AP

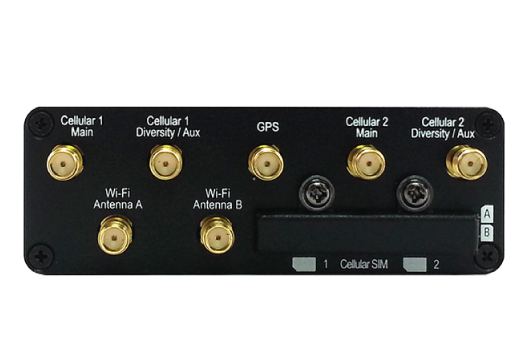

Antenna Connectors 2x SMA Cellular*, 1x SMA GPS, 2x RP-SMA Wi-Fi
Power Input Device: 12V – 48V DC
AC Adapter: AC Input 100V – 240V / DC Output 12V
Terminal Block: 12V – 48V DC
Power Consumption 18W (max.)
Dimensions 7.3 x 3.8 x 1.3 inches
185 x 97 x 33.5 mm
(L x W x H)
Weight 1.3 pounds
590 grams
Operating Temperature -40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Warranty 1-Year Limited Warranty

Documentation:

Download the Peplink MAX Transit Datasheet (PDF).

Pricing Notes:

Peplink Products
Peplink Max BR1 Slim
MAX Transit 1xLTE
Industrial-Grade M2M 4G Router, 1x Embedded 4G LTE Modem (North America), 1x Ethernet WAN, 802.11ac/a/b/g/n Wi-Fi AP, GPS/Fleet Tracking, Full antenna set
#MAX-TST-US-T
List Price: $899.00
Call for Lowest Price!
MAX Transit 2xLTE
Multi-LTE Router for Transportation Wi-Fi, 2x Embedded International LTE Modems, 1x Ethernet WAN, 802.11 ac/a/b/g/n, Full antenna set
#MAX-TST-DUO-US-T
List Price: $1,499.00
Call for Lowest Price!
InControl Subscription
1-Year InControl 2 Subscription Per Device
Suitable for: MAX Transits
#ICS-011
List Price: $49.00
Call for Lowest Price!
Add-on License
Pepwave MAX Transit Duo
SpeedFusion Bonding License Key for MAX Transit Duo
#MAX-TST-DUO-LC-SF
List Price: $1,200.00
Call for Lowest Price!
FrontierCARE
Peplink FrontierCARE 1-Year for MAX Transit
#PSC-116
List Price: $229.00
Call for Lowest Price!
Peplink FrontierCARE 1-Year for MAX Transit Duo
#PSC-117
List Price: $379.00
Call for Lowest Price!
Peplink FrontierCARE 3-Year for MAX Transit
#PSC-316
List Price: $629.00
Call for Lowest Price!
Peplink FrontierCARE 3-Year for MAX Transit Duo
#PSC-317
List Price: $1,039.00
Call for Lowest Price!
Extended Warranty
1-Year Extended Warranty for MAX Transit
#SVL-793
List Price: $159.00
Call for Lowest Price!
1-Year Extended Warranty for MAX Transit Duo
#SVL-794
List Price: $259.00
Call for Lowest Price!
2-Year Extended Warranty for MAX Transit
#SVL-688
List Price: $299.00
Call for Lowest Price!
2-Year Extended Warranty for MAX Transit Duo
#SVL-689
List Price: $499.00
Call for Lowest Price!
