Peplink - Dual-WAN, Multi-WAN Internet Link Load Balancing Routers

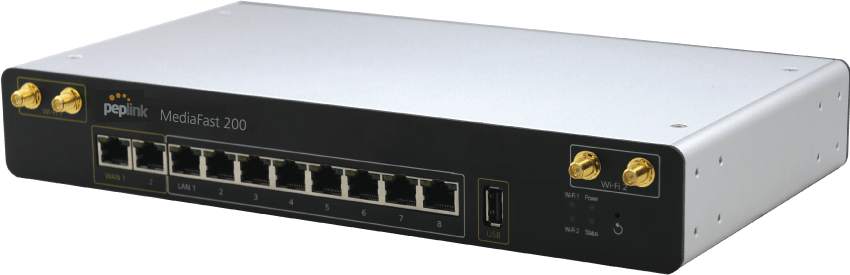

Peplink MediaFast 200
Lightning Fast Content Delivery. And So Much More.

Peplink MediaFast 200

Call us Today at 844-294-0779 for a price quote!

Peplink Products
Peplink MediaFast
Peplink MediaFast 200
#MFA-200-W
Call for Lowest Price!

More pricing below, click here!

Overview:

MediaFast is our supercharged content caching and all-in-one mobile device management solution. Designed with education and entertainment in mind, it downloads and buffers video, audio, iTunes/iTunes U, HTTP, and other content for uninterrupted learning and fun anytime.

Prefetch. Off-Peak Downloads. Anytime, Anywhere Playback.

Prefetch. Off-Peak Downloads. Anytime, Anywhere Playback.

Schedule one-time or recurring content downloads during off-peak hours, and then playback downloaded content anytime. Need HD video and other content in places with spotty or congested Internet connections? Download whenever and wherever the connection is best. Then pack up and take the MediaFast anywhere you need seamless content delivery.

Reporting. Insight. On-Demand.

Reporting. Insight. On-Demand.

Check bandwidth usage and savings. Track popular URLs and file types. You can also monitor client IP addresses, find your heaviest users, and more, all from a single intuitive interface.

MDM. Complete iOS Device Control. All in One Place.

Provision and manage iOS devices without additional gear or software tools. It’s easy to track device inventory, monitor battery levels, and install or remove apps. You can even lock devices, set restrictions, and erase content, right from MediaFast.

Cache. Download x1. Playback x∞.

Cache iTunes/iTunes U and other content automatically by domain and file type. With MediaFast, you can download once and play back over and over again, cutting loading time, bandwidth usage and cost. Keep content as long as you like or purge it automatically by file type and age.

SpeedFusion. Bonded Bandwidth. 24/7 Connectivity.

SpeedFusion. Bonded Bandwidth. 24/7 Connectivity.

Take advantage of all available connections with SpeedFusion bandwidth bonding and load balancing. Automatic failover keeps your learners learning and teachers teaching, even when a link fails.

InControl 2 and AP Controller. Your Network. At Your Fingertips.

Monitor and manage routers, access points, and other connected devices with InControl 2 and AP Controller. Wi-Fi networks are easy to set up, and you get complete control over your entire wireless and wired network from any compatible Web browser.

Features:


WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB 4G LTE/3G Modem Support
  • Support for Dynamic DNS Services
  • IPv6 Support

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Options
  • DHCP Reservation
  • DNS Proxy for LAN Clients

DNS

  • Built-in Authoritative DNS
  • Support for A, CNAME, NS, MX, PTR,
  • SOA, SRV, TXT Records

Advanced QoS

  • User Groups
  • Bandwidth Reservation
  • Individual Bandwidth Limit
  • Application Prioritization
  • By User Groups
  • SIP, HTTPS, VPN QoS
  • Custom Application QoS



Caching

  • Video Caching
  • iTunes
  • iTunes U
  • ted.com
  • Content Caching
  • HTML
  • JavaScript
  • Image
  • Flash Application

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server

AP Controller

  • Support for Pepwave AP Series
  • Auto AP Discovery
  • Auto AP Firmware Management
  • AP Profile Configuration
  • Wi-Fi usage statistics

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms



Complete VPN Solution

  • PepVPN/SpeedFusion
  • Site-to-Site VPN
  • Bandwidth Aggregation
  • Intelligent Failover
  • 256-bit AES Encryption
  • Pre-shared Key Authentication
  • Dynamic Routing
  • PPTP VPN Server
  • RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network)

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Managment
  • Router Utility Mobile App
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Security

  • Stateful Firewall
  • DoS Prevention

Applications:


Deliver Uninterrupted, On-Demand Learning with Content Caching

Deliver Uninterrupted, On-Demand Learning with Content Caching

Centrally Manage and Provision iOS Devices with MDM

Centrally Manage and Provision iOS Devices with MDM*

Accelerate Branch/Offsite Networking with Content Prefetching

Accelerate Branch/Offsite Networking with Content Prefetching

Turbocharge Existing Wi-Fi Hotspots with Cached Content

Turbocharge Existing Wi-Fi Hotspots with Cached Content

Compare:


  Mobile Command/Vehicle/Hotspot Branch Office/Hotspot School/Campus
Model MAX HD2 LTE with MediaFast MAX HD4 LTE with MediaFast MediaFast 200 MediaFast 500
Category 4G LTE + Wired Wired Only
Ethernet WAN Ports 2 2 1/25 1/55 5
Embedded 4G LTE 2 4
Wi-Fi Interface 1x 802.11a/n or b/g/n as WAN
1x 802.11a/n or b/g/n as AP
1x 802.11a/n or b/g/n as WAN
1x 802.11a/n or b/g/n as AP
Simultaneous Dual-Band 802.11a/b/g/n AP
USB 4G LTE/3G WAN1 1 1 1 1
Disk Drive 120GB SSD 120GB SSD 120GB SSD 120GB SSD 240GB SSD
Cache Throughput2 150Mbps 150Mbps 150Mbps 500Mbps
Router Throughput3 80Mbps 80Mbps 80Mbps 250Mbps
Ethernet LAN Ports 8 (GbE)
802.3af PoE Output
8 (GbE)
802.3af PoE Output
8 (GbE)
802.3af PoE Output
3 (GbE)
Core Functionality
Load Balancing 6 6
Video Caching
Content Caching
InControl Cloud Management
Drop-In Mode
GPS Fleet Management
AP Controller
Manage Pepwave AP Series
Maximum Number of AP Supported 107 107 10/507 10/1007
VPN Functionality
PepVPN
SpeedFusion Hot Failover 6 6 6 6
SpeedFusion Bandwidth Bonding 6 6 6 6
Number of PepVPN/SpeedFusion Peers 2 2 2 2/508 50
Advanced QoS Functionality
Bandwidth Usage Monitor
QoS for VoIP and E-Commerce
User Groups Bandwidth Control
Web Blocking
Hardware
Power Consumption 38W 38W 38W 50W
1U Rackmount
LAN Bypass
1 For a list of supported modems, please refer to http://www.peplink.com/modem.
2 Cache Throughput refers to the speed of routing content from hard disk to LAN.
3 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
4 MAX HD2 and HD4 with MediaFast is available in different configurations. Please refer to ordering information for details.
5 Only WAN 1 is activated. With purchase of optional Load Balancing or SpeedFusion Bonding license key, you can activate WAN 2 in MFA-200-W and WAN 2-5 in MFA-500-A.
6 Available as an optional add-on.
7 All MediaFast devices come with free license to manage 10 Pepwave AP devices. With purchase of optional AP Controller license, MediaFast 200 and MediaFast 500 can manage up to 50 and 100 Pepwave AP respectively.
8 MFA-500-A supports 2 PepVPN peers. With purchase of optional SpeedFusion License, MFA-500-A can connect to up to 50 SpeedFusion peers.

Documentation:

Download the Peplink MediaFast Datasheet (PDF).

Pricing Notes:

Peplink Multi-WAN Routers
Peplink MediaFast 200
#MFA-200-W
Call for Lowest Price!
Accessories
PoE Activation Kit
Includes 1x 48V Power Supply. Enables 802.3af PoE Output Ports (PoE License automatically applied after kit purchase)
#ACW-609
List Price: $79.00
Call for Lowest Price!
License Key
Load Balancing License Key for MediaFast 200
#MFA-200-LC-LB
Call for Lowest Price!
Load Balancing and SpeedFusion Bonding License Key for MediaFast 200
#MFA-200-LC-SF
Call for Lowest Price!
Peplink SmartCare
SmartCare for MediaFast 200, 1-Year
#PSC-171
Call for Lowest Price!
SmartCare for MediaFast 200, 3-Year
#PSC-311
Call for Lowest Price!
Extended Warranty
Extended Warranty for MediaFast 200, 1-Year
#SVL-772
Call for Lowest Price!
Extended Warranty for MediaFast 200, 2-Year
#SVL-672
Call for Lowest Price!
