Pepwave AP One Rugged
Fast, Secure and Manageable Enterprise Wireless for Every Environment

Pepwave AP One Rugged

Sorry, this product is no longer available, please contact us for a replacement.

More pricing below, click here!


Pepwave AP One access points deliver enterprise-grade performance, the flexibility to deploy anywhere, and easy setup and management. From the tiny but mighty AP One AC Mini to the super tough AP One Flex 300M, the AP One series offers fast, secure, long-range Wi-Fi that goes wherever you do.

AP One Features

Go the Distance.

Our exclusive signal-boosting technology virtually eliminates dead spots and dropouts. You get full transmit power across all channels, unmatched range and reliability with less equipment and less management effort.

Go for Easier AP Management.

It’s simple to configure AP One series access points wherever you work. For onsite management, you have complete control and comprehensive reporting from any Peplink Balance/MAX# router. And with InControl 2, our cloud management solution, you get real-time client lists and bandwidth activity, plus a handy device snapshot, all from any device running a supported web browser.

Go Wireless Anywhere.

Indoors or outdoors, there’s an AP One access point for any job.
#MAX routers include MAX 700 & HD series only.

AP One Flex 300M
The AP One Flex features an IP55 all-weather enclosure and provides seamless coverage over large areas.

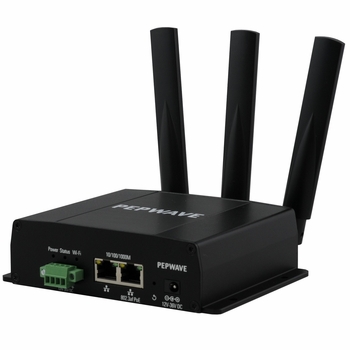

AP One Rugged
Housed in tough metal enclosures and easy to integrate with the rest of your network, the AP One Rugged set the standard for high-performance, low-maintenance indoor Wi-Fi.

AP One In-Wall
The AP One In-Wall mounts on a standard electrical outlet box for installations without big boxes or nests of wires.

AP One AC mini
Compact and capable, the AP One AC mini delivers true AP One power in a palm-sized package that fits in your pocket.

AP One Enterprise
Powered by PoE, the AP One Enterprise has 3x3 MIMO dualradio Wi-Fi transmits wireless data at up to 1750Mbps. You can mount it directly to the ceiling at office.

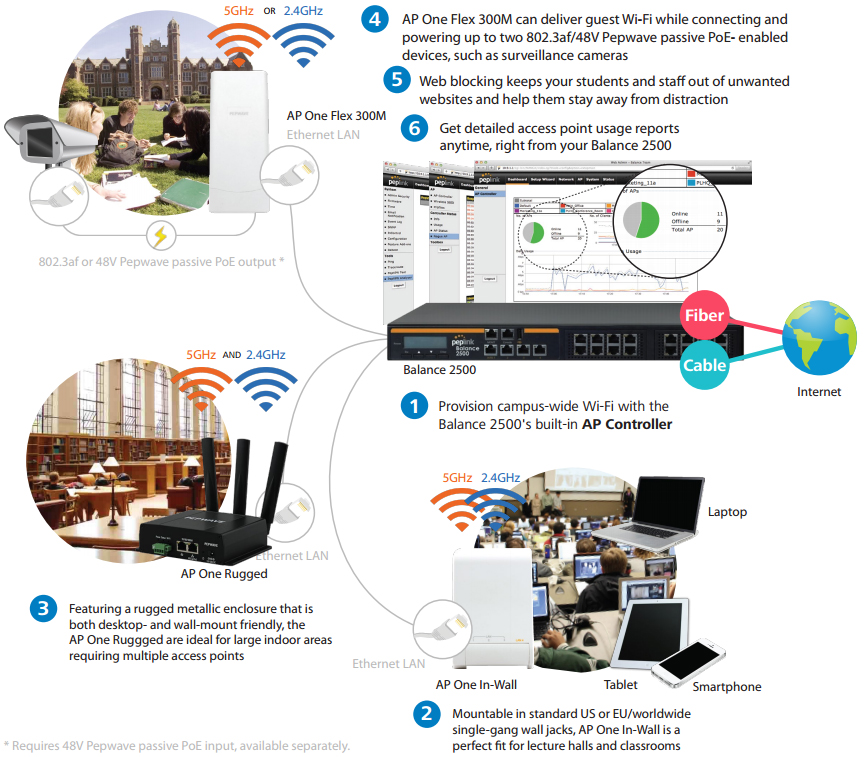

For Education – Setup, Manage, and Monitor Campus Wi-Fi from Your Peplink Balance/MAX#

For Education

AP Controller is a software-based AP management tool for Balance and selected MAX routers. It lets you manage your entire wireless network, with AP One and AP Pro, from your Balance or MAX router.

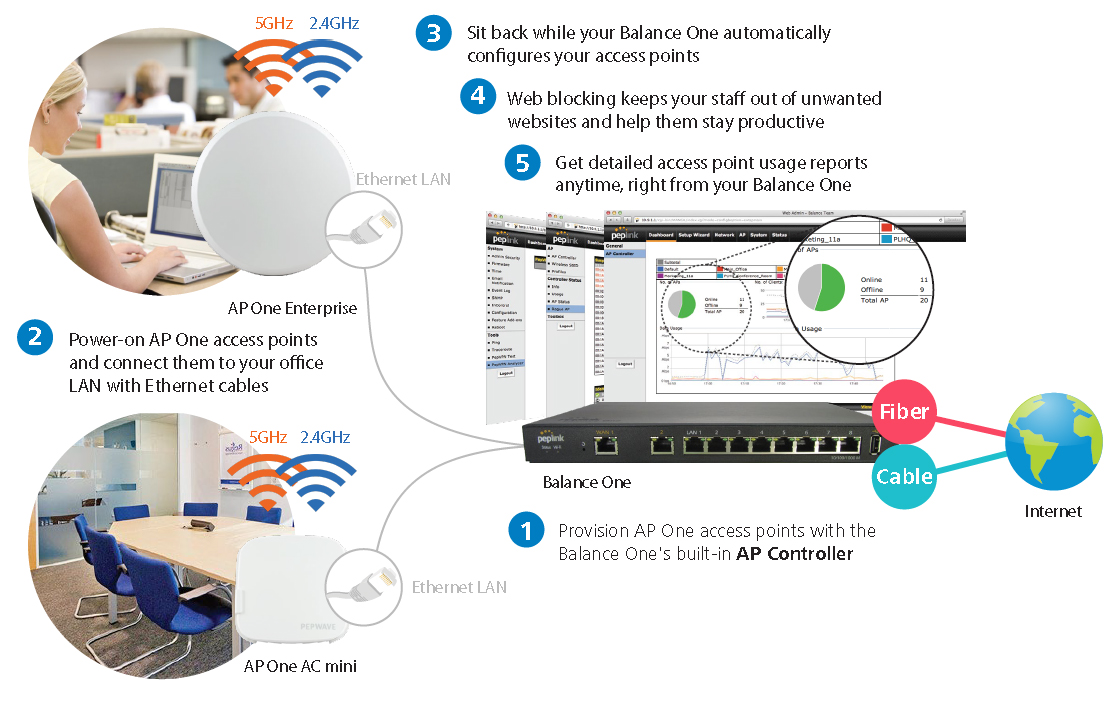

For SMBs – Setup, Manage, and Monitor Office Wi-Fi from Your Peplink Balance/MAX#

For SMBs

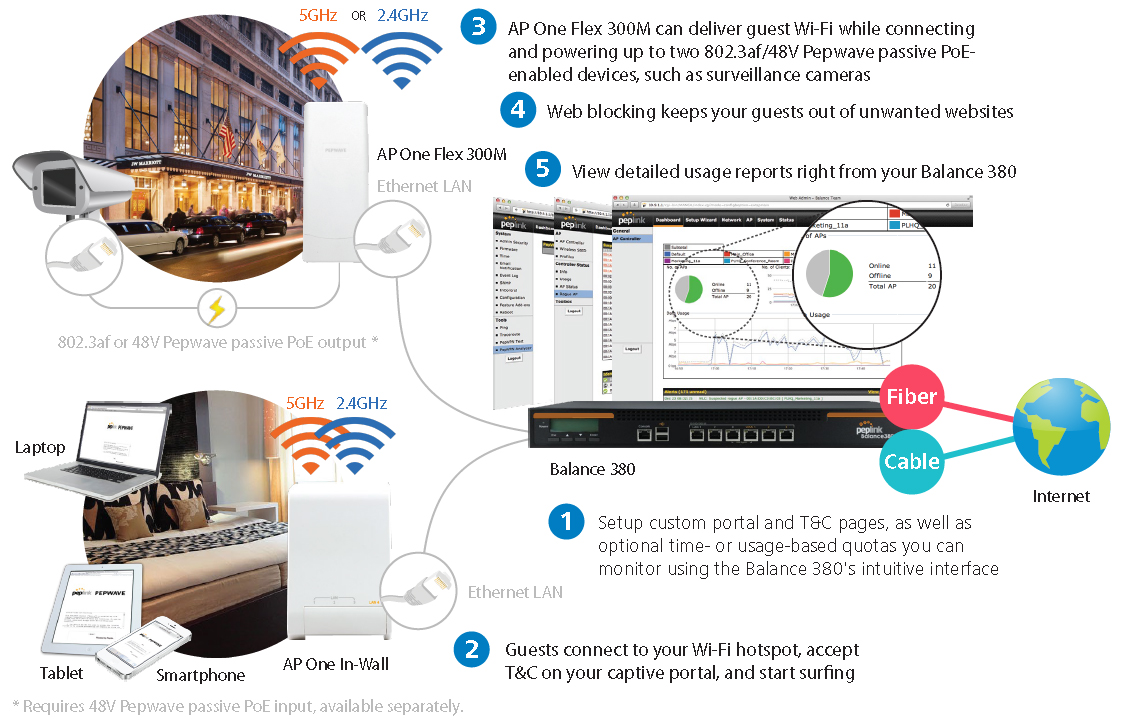

For Hospitality – Offer Guest Hotspots Complete with Captive Portals

For Hospitality


AP One AC Mini AP One Rugged AP One Enterprise AP One In-Wall AP One Flex 300M
Ethernet Port 1x GE 2x GE 2x GE 1x FE Uplink 4x FE 1x FE
Simultaneous 802.11ac/a/n and 802.11b/g/n Simultaneous 802.11ac/a/n and 802.11b/g/n Simultaneous 802.11ac/a/n and 802.11b/g/n Simultaneous 802.11a/n and 802.11b/g/n Simultaneous 802.11a/n and 802.11b/g/n 802.11b/g/n
Data Rates 2x2 MIMO 2.4 GHz: 300Mbps 5GHz: 866Mbps 3x3 MIMO 2.4GHz: 450Mbps 5GHz: 1300Mbps 3x3 MIMO 2.4GHz: 450Mbps 5GHz: 1300Mbps 2x2 MIMO 2.4 GHz: 300Mbps 5 GHz: 300Mbps 2x2 MIMO 2.4 GHz: 300Mbps
Recommended Concurrent Users Per Radio 60 60 60 60 60
SSID Per Radio 16 16 16 16 16
Transmit Power 2412 – 2472 MHz: 23dBm 5180 – 5825 MHz: 17dBm 2412 – 2472 MHz: 25dBm 5180 – 5825 MHz: 22dBm 2412 - 2472 MHz: 24dBm 5180 - 5825 MHz: 23dBm 2412 – 2472 MHz: 17dBm 5180 – 5825 MHz: 17dBm 2412 – 2472 MHz: 28dBm
Included Antenna Built-In Omni Antenna Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz 2x Dual-Band Omni Antenna Antenna gain: 3dBi for 2.4GHz, 5dBi for 5GHz Built-in Omni antenna Antenna gain: 3dBi for 2.4GHz, 4dBi for 5GHz Built-In MIMO Omni Antenna Antenna gain: 2dBi for 2.4GHz, 4dBi for 5GHz Built-In, Switchable 10dBi MIMO Directional (75° Horizontal x 35° Vertical Beamwidths) and 4dBi MIMO Omni Antennas
Antenna Connector N/A 2x RP-SMA Connectors N/A N/A N/A
Enclosure Plenum-rated, Indoor Plastic Ruggedized Metal Plenum-rated, Indoor Plastic Plenum-rated, Indoor Plastic . Mounts Into Standard US/EU Single Gang Wall Jack Waterproof IP55 Outdoor
Weight 0.33 pound
150 grams
0.93 pound
420 grams
0.57 pound
260 grams
0.37 (US) / 0.34 pound
170 (US) / 155 grams
1.15 pounds
520 grams
Power Input AC Adapter: AC Input 100V –
240V, DC Output 12V
802.3af PoE (Injector Not Included)
802.3af PoE (Injector Not Included) 48V DC Connector
802.3af/802.3at PoE
Pepwave Passive PoE: 12V – 48V DC
(48V Pepwave Passive PoE Input is Needed
for 802.3af or Pepwave Passive PoE Output)
Power Consumption 12W (max.) 13W (max.) 13W (max.) 15W (max.) 15W (max.)
Operating Temperature 23° - 113°F
-5° - 45°C
-4° – 149°F
-20° – 65°C
23° - 113°F
-5° - 45°C
-4° – 104°F
-20° – 40°C
-4° – 149°F
-20° – 65°C
Humidity 15% – 95% (non-condensing)
Certi cations FCC, CE, RoHS

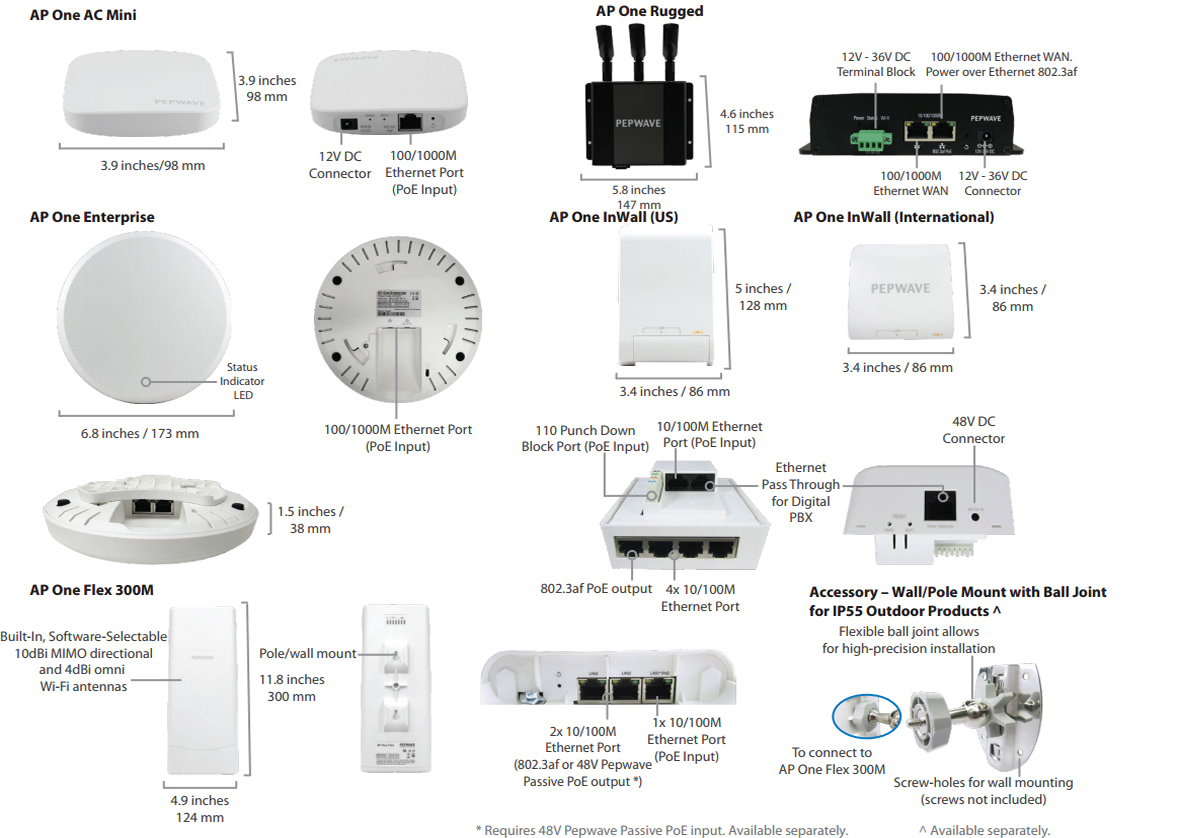

AP One Specs

Technical Specifications:


  • Bridge Mode
  • Router (NAT) Mode
  • Wireless Distribution System (WDS)
  • Support for PPPoE, Static IP, DHCP
  • Management VLAN (802.1p)
  • Spanning Tree Protocol (802.1d)


  • Multiple SSID
  • Auto Channel Selection
  • Transmit Power Adjustment
  • Neighbor AP Detection

AP Security


Device Management

  • Web Administrative Interface
  • InControl Cloud Management
  • Peplink AP Controller
  • SNMP v1, v2c and v3

Client Managment

  • Per SSID
    • VLAN with QoS (802.1p/802.1q)
    • Bandwidth Control
    • MAC Address Filtering
    • Layer 2 Client Isolation
    • Limit on Max. Number of Client
  • Per Client
    • VLAN with RADIUS
    • VLAN with VLAN Pool
    • Bandwidth Control
    • Multicast Filter
    • IGMP Snooping/Multicast Enhancement

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing

Captive Portal

  • By InControl

Package Content

  • AP One AC mini
    • AP One AC mini
    • 12V2A Power Supply
    • Mounting Bracket
  • AP One Enterprise
    • AP One Enterprise
    • Mounting Bracket
  • AP One In-Wall
    • AP One In-Wall
    • Mounting Bracket for US or EU/Worldwide Single Gang Wall Jack
  • AP One Rugged
    • AP One Rugged
    • 12V2A Power Supply
    • 3x 5dBi Omni Antenna
  • AP One Flex 300M
    • AP One Flex 300M
    • 12V2A Power Supply
    • Pepwave Passive PoE Injector

Certifications 1

  • FCC, CE, RoHS
1 Certification differs for different models, please refer to the respective model for details

All specifications are subject to change without notice.


Download the Pepwave AP One Datasheet (PDF).
