Peplink Balance SDX
Futureproof Enterprise-Grade Branch Router


Peplink Balance SDX

Call us Today at 844-294-0779 for a price quote!

Peplink Products

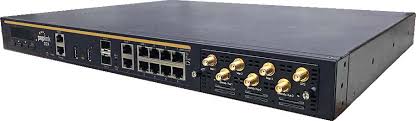

Peplink Balance SDX
Peplink Balance SDX
SDX Base Model, No Expansion module, 2x GE WAN Ports, 2x 10GbE SFP+ WAN ports, 8x GE LAN ports, 2x USB WAN
#BPL-SDX
Contact us for Pricing!

More pricing below, click here!

Overview:

Extreme Performance

As a member of our “X” series, the SDX offers extreme performance and futureproof design at a practical price point. With 12 Gbps of throughput, the SDX can handle the bandwidth requirements of any enterprise branch network. The SDX also supports a FlexModule, enabling you to customize the router with your choice of ports, as well as instantly apply new technology as we release new modules.


Investment Protection – Futureproof Design

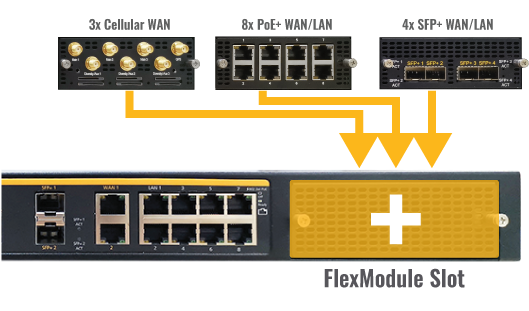

The SDX has a slot for a FlexModule, which is available in three versions:

  • 3x cellular WAN: Combine cellular links for wireless SD-WAN backup to the primary connection. 5G FlexModule coming soon!
  • 8x copper WAN/LAN: Connect PoE-enabled modems on the WAN, or connect PoE devices such as cameras, IP phones, and Wi-Fi APs on the LAN.
  • 4x fiber WAN/LAN: Build an all-Fiber network by connecting Fiber WANs and LAN Switches.

We will build additional FlexModules as new technologies such as 5G emerge. Simply insert the new FlexModule and the SDX will become 5G ready; no need to purchase a new router.

Futureproof Design

SDX Ready Out of the Box

Enterprise-Ready Out-Of-The-Box

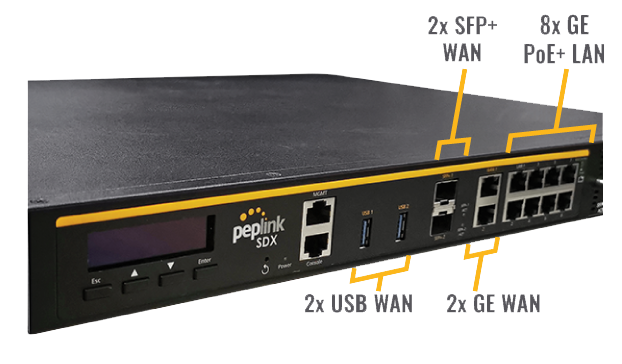

Even without a FlexModule, the SDX is already prepared for any enterprise branch deployment. It comes equipped with 2x Ethernet WAN, 2x Gigabit Fiber WAN, and 2x USB WAN, enabling connectivity from multiple sources. The 8x integrated LAN ports can also power devices via PoE+. These integrated ports provide a baseline level of connectivity on which users can add FlexModules to increase the capabilities of the SDX. This is also useful for scaling deployments where growth is anticipated.


Unbreakable Cloud Connectivity

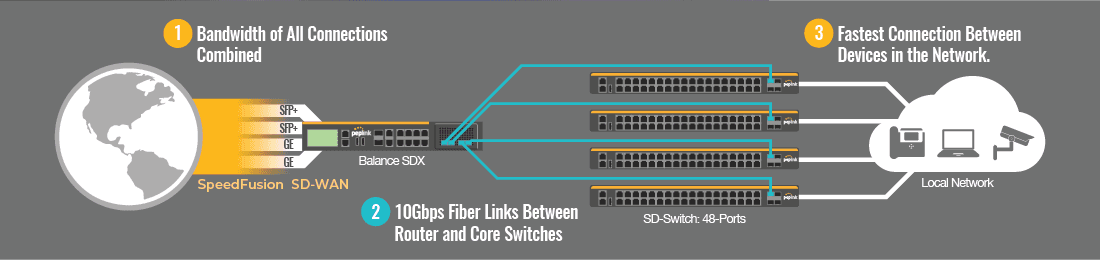

A chain is only as strong as its weakest link. Likewise, the speed of a local network is determined by its slowest connection. Insert a fiber FlexModule onto your SDX to create an all-fiber local network. Use the SDX’s built-in WAN ports to combine SFP+ and Ethernet links into a super-fast SpeedFusion VPN connection. Then use the fiber FlexModule to connect 4x 48-port fiber switches to the SDX. This creates a full fiber local network with optimimal connectivity between each client.

The FlexModule is interchangeable between the SDX, EPX, and some of our upcoming modular platforms. This enables enterprises to use different modules to customize the devices to fit their unique network requirements.

SDX Ready Out of the Box


End-to-End Fiber Network for Branch Offices

Whether via datacenter or Azure/AWS cloud, businesses now access their vital ERP, CRM, and POS applications online. To ensure absolute business continuity, the Balance SDX combines Ethernet and SFP+ WAN into an unbreakable Speed-Fusion VPN. If any individual line loses connectivity, others will take its place without skipping a beat.

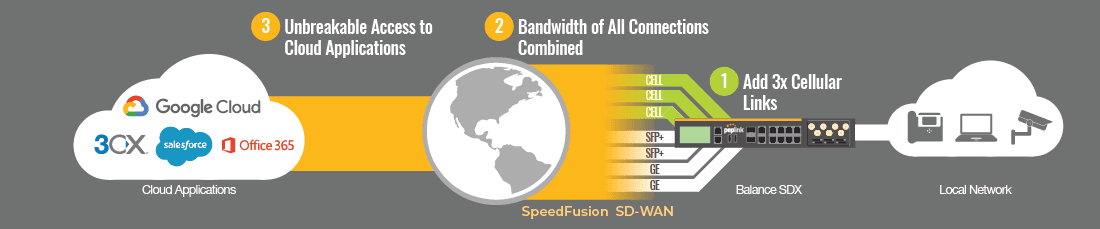

The Balance SDX supports one Flex-Module. By inserting a cellular FlexModule, you can add up to 3x cellular connections to your SpeedFusion VPN. Cellular connectivity creates additional redundancy for your business applications.

SDX Ready Out of the Box


Specifications:


  Balance SDX
WAN Interface 2x 10G SFP+ Ports
2x GE Ports
2x USB 3.0 Ports
1x Expansion Module (Option)
LAN Interface 8x GE Ports
Router Throughput 12 Gbps
PepVPN / SpeedFusion Throughput No Encryption: 1 Gbps 256-bit AES: 600 Mbps
Recommended Users 500-2000
Max PepVPN/SpeedFusion Peers 300
Power Input AC Input 100V - 240V
PoE Output 8x 802.3at PoE+ Output
Power Output Up to Four 802.3af PoE Output
Power Consumption 80W, 330W PoE+ Power Budge
Dimensions 17.2 x 13.3 x 1.7 inches / 438 x 340 x 44 mm
Weight (No Modules) 11.7 pounds / 5.3 kg
Operating Temperature 32° – 104°F / 0° – 40°C
Humidity 5% – 90% (non-condensing)
Certifications FCC, IC, CE
Warranty 1-Year Limited Warranty

Documentation:

Download the Peplink Balance SDX Datasheet (PDF).
