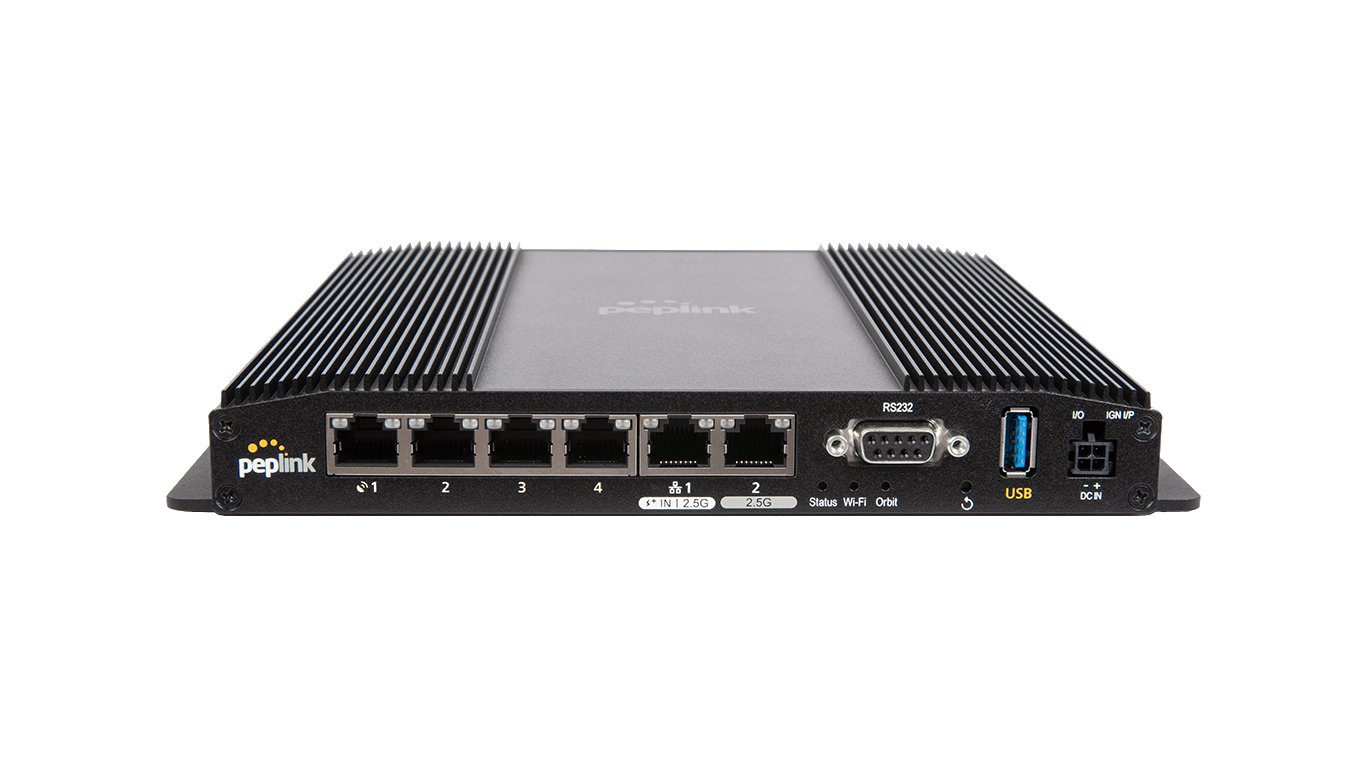

Peplink MAX Orbit 4
Flexible Multi-Terminal Satellite Router

More pricing below, click here!

Overview

Bond up to four satellite terminals for higher aggregate bandwidth and resilience across Starlink, OneWeb and other networks. With 2x 2.5GbE WAN/LAN and a USB 3.0 WAN port, the MAX Orbit 4 is built for hybrid satellite + cellular/fixed deployments — adding integrated GPS and a rugged design, all managed centrally in InControl with SpeedFusion Boost.

Specifications

Router Throughput	1 Gbps
"Orbit" Satellite Ports	4x GbE
WAN / LAN Ports	2x 2.5GbE WAN/LAN (1x PoE-in)
USB WAN	1x USB 3.0
Wi-Fi	Wi-Fi 6
GPS	Integrated
SpeedFusion	Multi-terminal bonding, SpeedFusion Boost, Hot Failover, WAN Smoothing
Management	InControl 2 cloud management (Starlink, OneWeb & Iridium)
Operating Temperature	-40° to 65°C
Warranty	1-Year Limited Warranty

Specifications are subject to change; refer to the official datasheet for complete details. See the full MAX Orbit Series comparison.

Documentation

Download the Peplink MAX Orbit Series Datasheet (PDF).

Pricing Notes:

• Pricing and product availability subject to change without notice.
