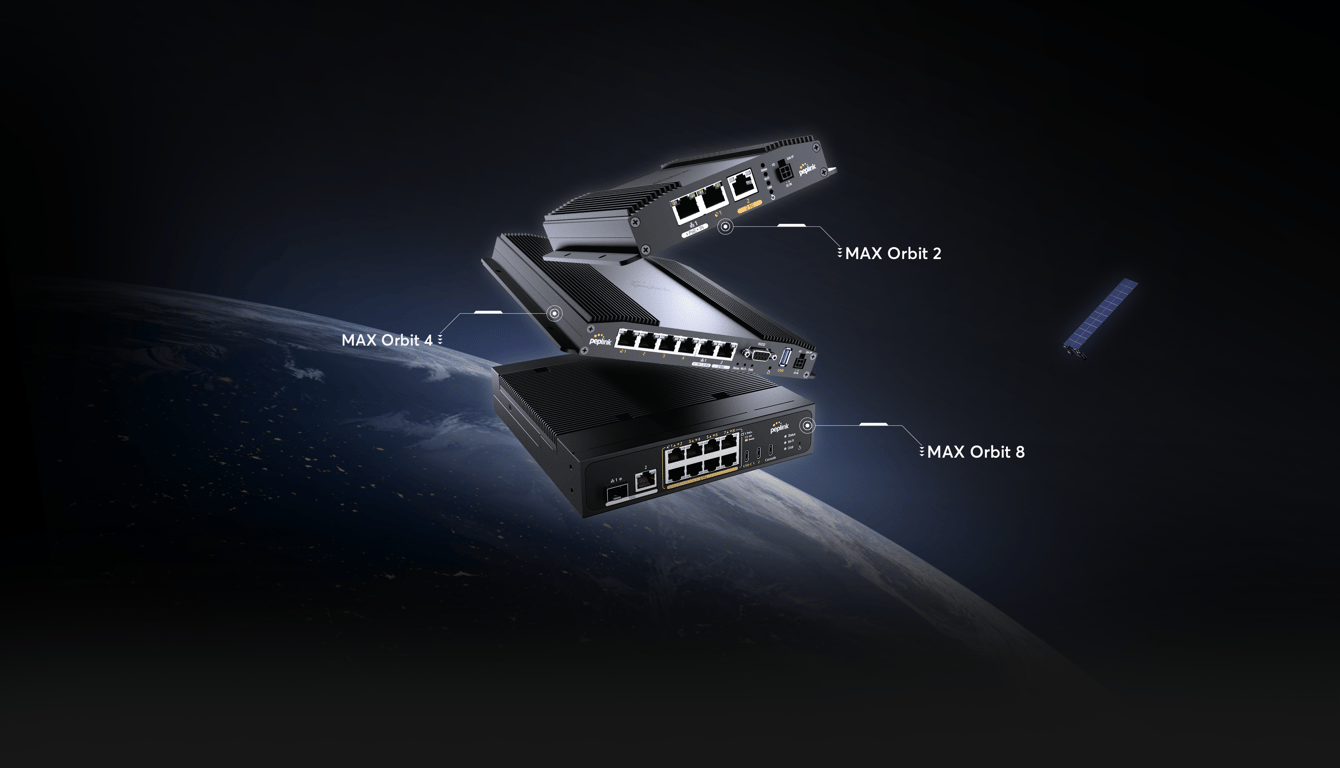

Peplink MAX Orbit Series
Purpose-Built for Robust Multi-Orbit Connectivity
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Overview:

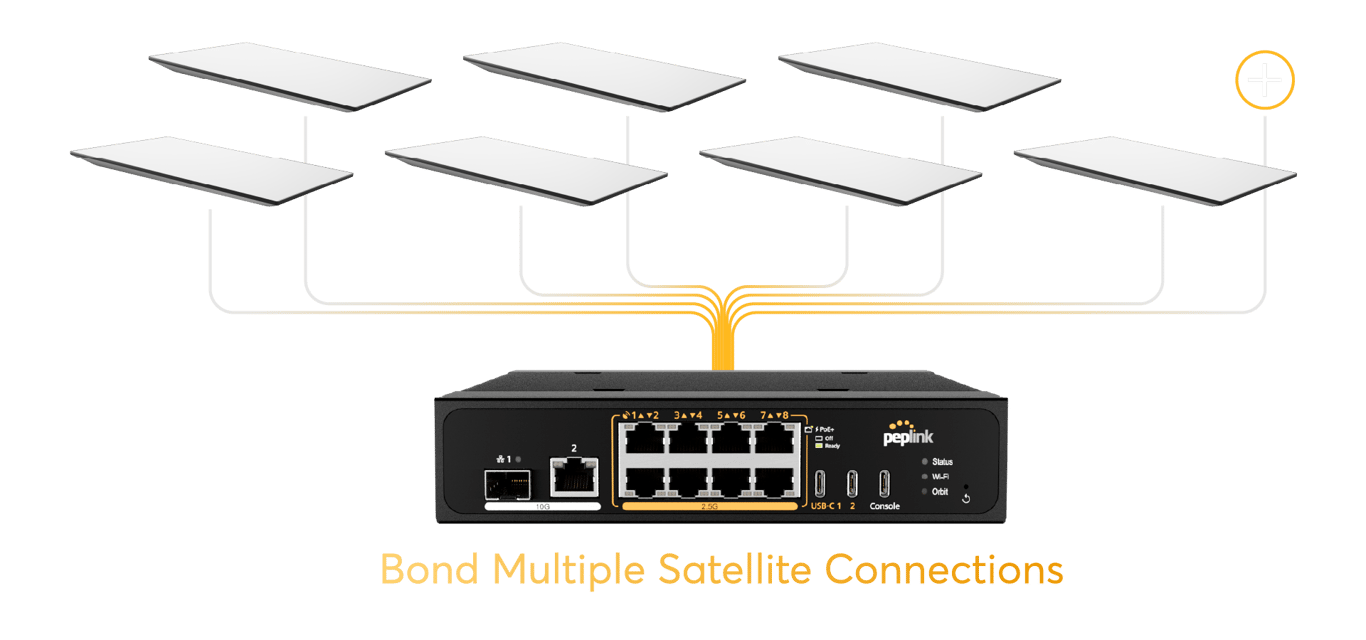

Multi-Terminal Bonding Scales Bandwidth and Reliability
A single satellite terminal can't always deliver the bandwidth or reliability serious operations demand. MAX Orbit lets you combine multiple Starlink, OneWeb, or other connections for greater speed and reliability.

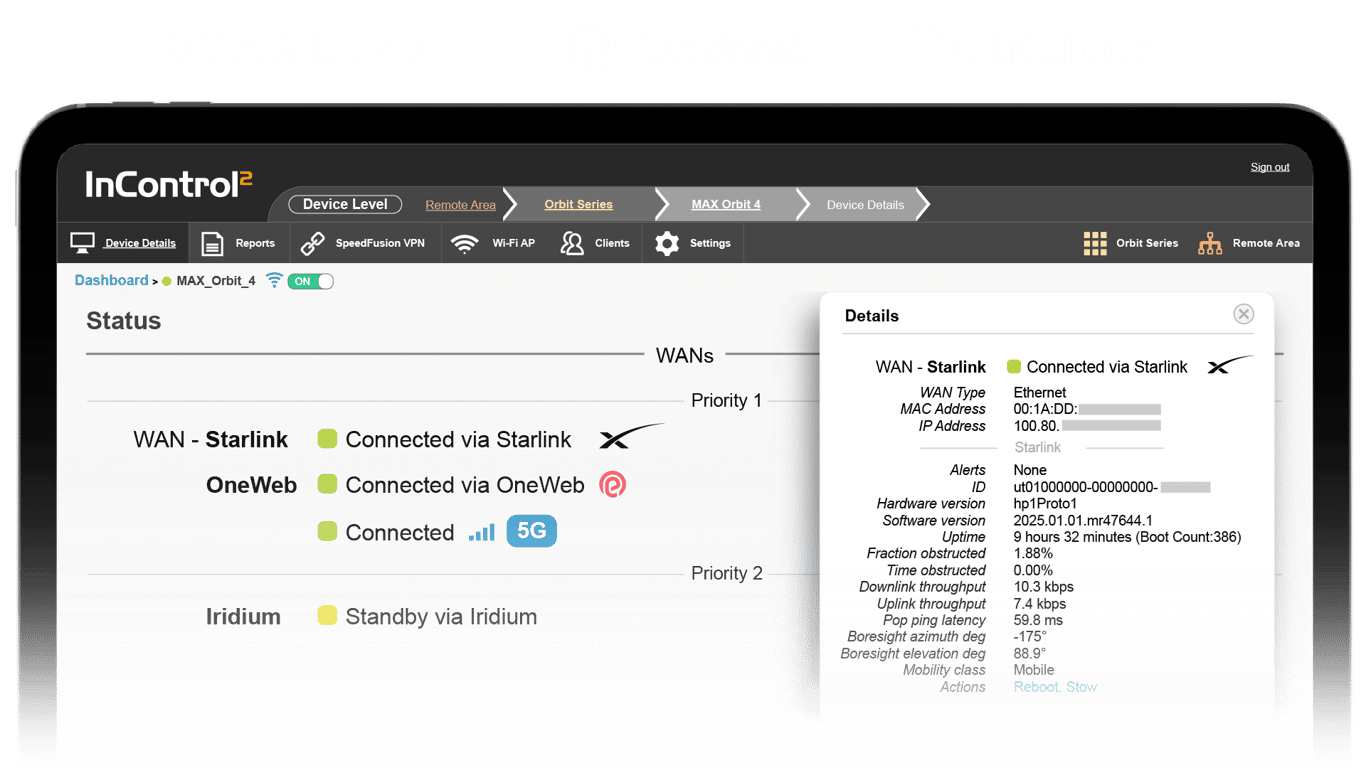

Every Satellite Network Managed from One Place
No need to hop portals. Peplink can manage Starlink, OneWeb, and Iridium via InControl for unified cloud-based management.
SpeedFusion Boost Keeps Multi-Orbit Networks Running at Full Speed
Don't let satellite handovers, obstructions, or bad weather slow you down. SpeedFusion Boost prevents unstable satellite links from dragging down overall throughput, keeping your bonded multi-orbit networks fast, smooth, and efficient. SpeedFusion Score (in InControl) continuously evaluates the health, resilience, and performance of your bonded networks.
Built for the Real World
5G + Satellite
Expand uptime and performance while balancing cost by combining 5G and satellite bandwidth — avoid overages and use each connection most efficiently.
Back Anything Up, Anywhere
Back up critical fiber links for cellular towers, ISPs, warehouses, datacenters, and energy & mining — any location needing high-reliability backup — by bonding multiple satellite terminals and networks.
Built to Go Places
Mobile command units, vessels, or field deployments that relocate weekly — integrated GPS, rugged hardware, and vibration-tolerant design mean reliable multi-orbit connectivity anywhere you go.
Specifications:
The MAX Orbit Series is available in three models. Key differences below; see the datasheet for full details.
| Feature | MAX Orbit 2 | MAX Orbit 4 | MAX Orbit 8 |
|---|---|---|---|
| Router Throughput | 1 Gbps | 1 Gbps | 4 Gbps |
| "Orbit" Satellite Ports | 1x 2.5GbE + 1x GbE | 4x GbE | 8x 2.5GbE with PoE+ output |
| WAN / LAN Ports | 1x GbE LAN (PoE-in) | 2x 2.5GbE WAN/LAN (1x PoE-in) | 1x 10GbE + 1x 10G SFP+ (LAN/WAN) |
| USB WAN | — | 1x USB 3.0 | 2x USB-C |
| Wi-Fi | Wi-Fi 6 | Wi-Fi 6 | Dual-band Wi-Fi 7 |
| GPS | Integrated | ||
| SpeedFusion | Multi-terminal bonding, SpeedFusion Boost, Hot Failover, WAN Smoothing | ||
| Management | InControl 2 cloud management (Starlink, OneWeb & Iridium) | ||
| Operating Temperature | -40° to 65°C | ||
| Humidity | 15% – 95% (non-condensing) | ||
| Certifications | FCC, CE, RoHS, REACH | ||
| Warranty | 1-Year Limited Warranty | ||
Specifications are subject to change; refer to the official datasheet for complete details.
Documentation:
Download the Peplink MAX Orbit Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
