Overview:

The SpeedFusion Engine can be easily integrated to your platform. The SpeedFusion Engine allows users to add bonding capabilities to a variety of network setups. Two embedded cellular modems and a wired WAN port give you up to three connections, which can be bonded with unbreakable VPN for faster data uploads and downloads.

Ultra-Compact SpeedFusion SD-WAN
The SpeedFusion Engine fits in the palm of your hand, making it easy to integrate into your existing products.
Combine 2 Cellular Connections
With a Peplink router at HQ, SpeedFusion SD-WAN technology combines 2 cellular connections to ensure reliable connectivity, no matter where you deploy
Plug-n-Play Integration
With an Ethernet port, a USB port, and 10W consumption, the SpeedFusion Engine can integrate with your devices without complicated software porting

See and Manage Everything on InControl2

Using Peplink’s InControl cloud-based management platform, you can view detailed connectivity, data usage, and even location information on all of your SpeedFusion Engines. In addition, InControl is also capable of emotely accessing the SpeedFusion Engine’s web admin, as well as applying batch configurations and firmware updates to groups of devices.

Pepwave SpeedFusion Engine


Group-Based Configuration

Apply a single configuration to groups of devices at the same time, this is useful in situations where you wish to reconfigure SpeedFusion Engine before deploying it. Firmware configurations can also be pushed onto multiple devices, saving additional time.


Pepwave SpeedFusion Engine

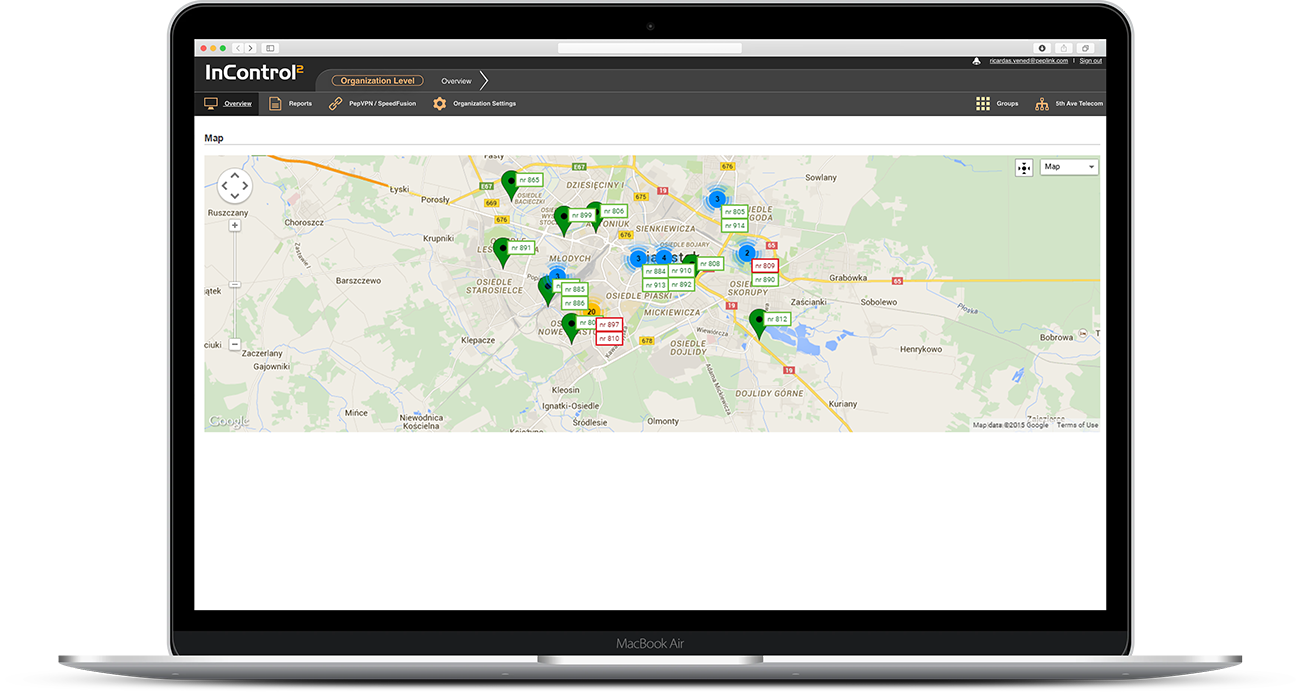

Device Location Tracking

Using InControl, you can keep track of all SpeedFusion Engines and other Peplink devices that you have deployed using a single map. Click any device to see where it has been at any given point of time, as well as traffic and connectivity conditions at that time.

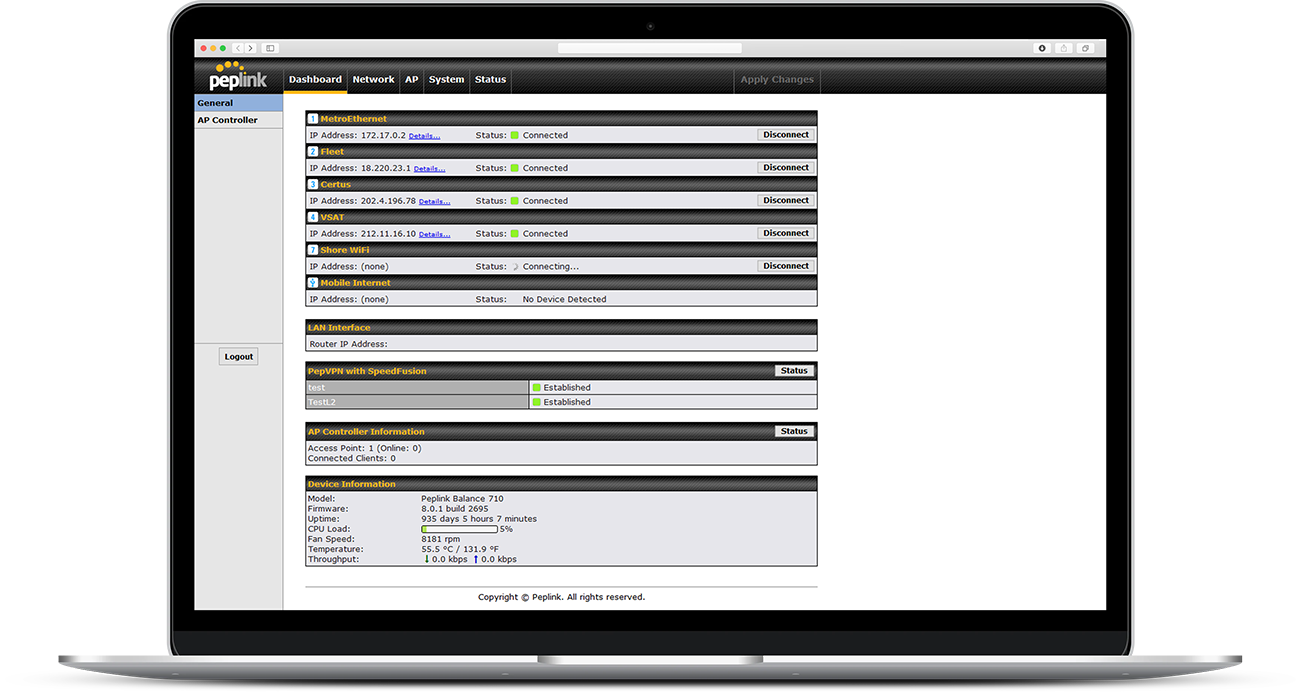

Remote Web Admin

Use InControl to remotely access any connected device's web admin.

Features:


Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Complete VPN Solution

  • PepVPN/SpeedFusion
    • Site-to-Site VPN
    • Hot Failover/ Bandwith Bonding + WAN Smoothing
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support
  • PPTP VPN Server
  • IPsec VPN (Network-to-Network) *
    • X.509 Certificate Support
  • Captive Portal Support

    • Support for Wired and Wireless LAN clients
    • Support RADIUS Authentication
    • Time and Usage Quotas on Open Access Mode
    • Built-in Customizable Splash Page
    • Social Wi-Fi Hotspot support
    • External Captive Portal support

    Load Balancing

    • Intelligent Failover
    • Session Persistence
    • Per-Service Load Distribution
    • Multiple Algorithms
      -Weighted
      -Enforced
      -Persistence
      -Priority
      -Overflow
      -Least Used
      -Lowest Latency

    Device Management

    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notification
    • Active Client and Session Lists
    • Bandwidth Usage Statistics
    • Syslog Service
    • SNMP v1, v2c and v3

    Global Positioning System

    • Integrated GPS
    • Device Location Map
    • Location Tracking Data with InControl 2
    • GPS eXchange Format (GPX)
    • Fleet Management with InControl 2

    Security

    • Stateful Firewall
    • DoS Prevention
    • Web Blocking

    Package Content

    • SpeedFusion Engine
    • Terminal Block
    • 1x Ear Mount Set (ACW-769)

    * IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

    All specifications are subject to change without notice.

    Pepwave SpeedFusion Engine

    Specifications:


    Particulars Pepwave SpeedFusion Engine
    Ethernet WAN Ports 1 (FE, shared)*
    Ethernet LAN Ports 1 (FE, shared)*
    USB LAN Port Micro-USB B
    Embedded 4G LTE / 3G 2
    LTE Modem Downlink/Uplink Datarate: 100Mbps/50Mbps
    LTE-A Modem Downlink/Uplink Datarate: 300Mbps/50Mbps
    SIM Card Size Micro-SIM (3FF)
    Recommended Users 1-60
    Router Throughput3 100Mbps
    IP Passthrough Yes
    WAN as LAN Yes
    Web Blocking Yes
    Web Filtering Blacklist Lite
    PepVPN/SpeedFusion Throughput (No Encryption) / (256-bit AES) 40Mbps / 20Mbps
    Enclosure Compact, Indoor Metal
    Terminal Block Power Connector for Mobile/Vehicular Deployment Yes
    Number of PepVPN SpeedFusion Peers 2
    Dimensions
    (Height x Width x Depth)
    2.95 x 3.25 x 1.65 inches | 75 x 83 x 42 mm
    Weight 0.77 pound | 350 grams
    Power Input | Terminal Block Terminal Block 12V-24V DC
    Power Consumption 13W (max.)
    Operating Temperature -40° – 149°F | -40° – 65°C
    Humidity 15% – 95% (non-condensing)
    Certifications -FCC, CE, RoHS
    -EN 61373:1999 IEC 61373:1999 (Shock and Vibration Resistance)
    -EN 50155 (Railway Applications – Electronic Equipment used on Rolling Stock)
    Warranty 1-Year Limited Warranty

    Documentation:

    Download the Pepwave SpeedFusion Engine (PDF).
