Pepwave Device Connector 300M
Vendor Neutral, Long Range Wireless Bridge

Pepwave Device Connector 300M

Sorry, this product is no longer available, replace by Pepwave Device Connector Rugged. Services and subscriptions can be purchased below.

More pricing below, click here!

Overview:

More than a repeater, the Device Connector is a complete wireless network extension solution with advanced TruePower technology that keeps signals clean, clear, and strong from start to finish. And it's compatible with any access point and available in three rugged enclosure styles, so you can just drop it in and go – no network reconfiguration or device upgrades needed. Vendor Neutral, Long Range Wireless Bridge. Device Connector

The Coverage You Need. Made Plug-and-Play Easy.

Easily extend Wi-Fi coverage in minutes with Pepwave's Device Connector. The Device Connector gets your devices talking over a large area without wires or configuration headaches. And because it works transparently at Layer 2, the Device Connector is compatible with any access point, so there's no need to upgrade your gear to get industry-leading Wi-Fi range and performance.

Reliability in Extreme Environments.

The Device Connector is designed and manufactured with the strictest standards. It is rated to operate in almost any environment imaginable. It is just as comfortable working in desert, marine, and arctic environments as it is in the office, making it the ultimate go-anywhere drop-in solution.

CarFi Fast Roaming. WAN Reliability with Wi-Fi Mobility (Add-on Feature. Available Soon.).

CarFi Fast Roaming, available as an optional software upgrade, lets your Device Connector hop from AP to AP in a matter of seconds. Seamlessly. Without dropouts or downtime. Whether you're commanding an emergency situation, coordinating a construction project, or keeping the shelves stocked in a supermarket or warehouse, CarFi Fast Roaming keeps everyone communicating at all times.

TruePower Device Bridging. Strong Signals End-to-End.

The Peplink Device Connector features our TruePower RF technology, which delivers maximum transmission power across all links at even the highest data rates. With TruePower, you get reliable, fast connections at distances that put other radios out of reach.

Three Durable Enclosures. A Device Connector for Every Job.

Whether you work indoors or outdoors, in a clean, quiet office or on a dirty, noisy construction site, there's a Device Connector model built just for you. For indoor applications, there's our rugged metallic enclosure. For medium-duty outdoor installations, such as a factory floor, there's our IP55 high-impact plastic enclosure. And for those jobs that make other equipment run and hide, there's our aircraft-grade aluminum IP67 housing, tough as nails and ready to handle just about anything you or Nature can throw at it.

Application:

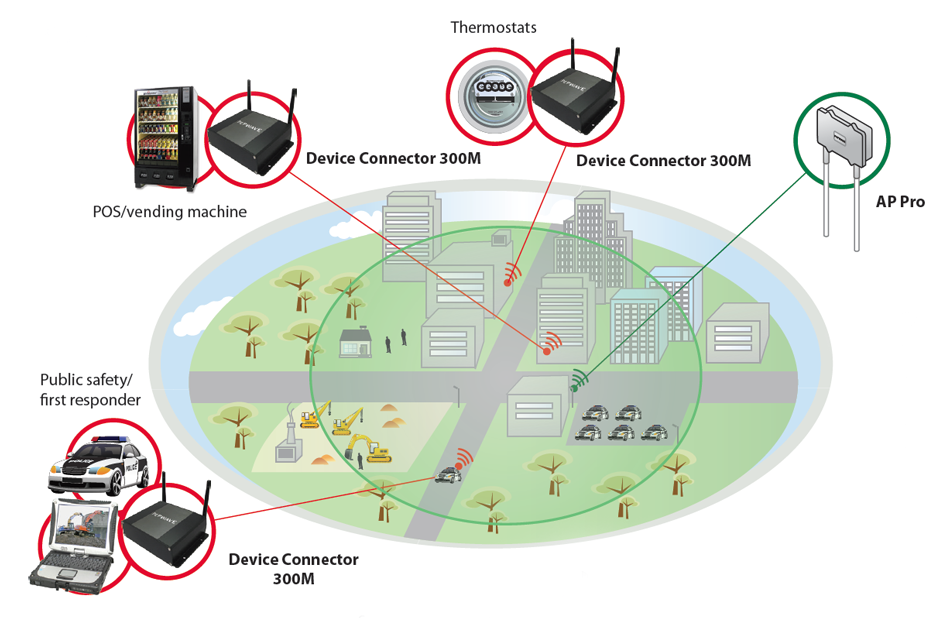

Featuring a compact yet rugged metalic indoor enclosure, the Device Connector indoor models are perfect for:

  • Thermostats/
  • POS/vending machine
  • Public safety/first responder

Government/Military – Uninterrupted Communication and Resource Access

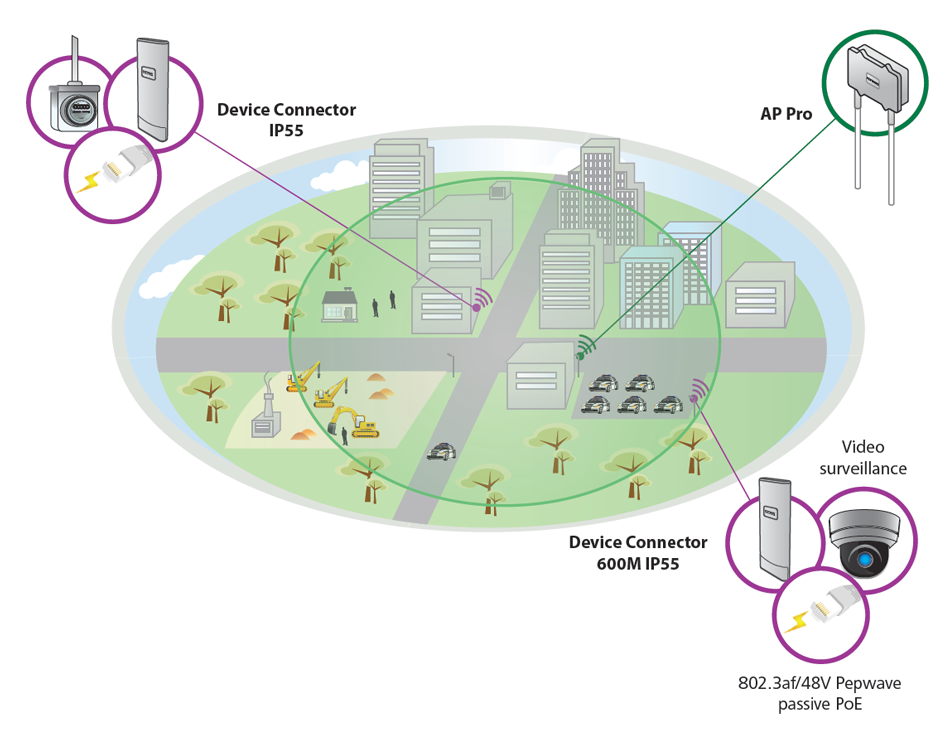

Featuring a waterproof yet light-weight and compact IP55 outdoor enclosure, the Device Connector IP55 models are perfect for:

  • Video surveillance
  • Supervisory control and data acquisition (SCADA)
  • Traffic control

The Device Connector IP55 models also support 802.3af/48V Pepwave passive PoE output. So you can power up to two devices including surveillance cameras and other peripherals on a single power source, reducing cabling hassles and deployment complexity.

Enterprise – Upgrade Existing Network Infrastructure with LTE Backup

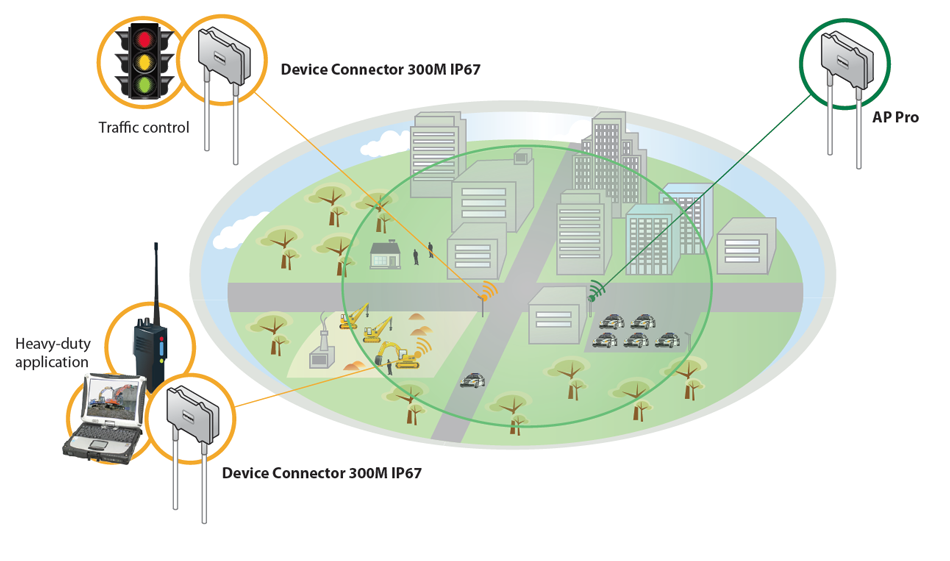

Features a waterproof and dust-tight IP67 outdoor enclosure, the Device Connector IP67 models are perfect for:

  • Oil and gas
  • Manufacturing
  • Construction
  • Mining and exploration
  • Defense

Enterprise – Upgrade Existing Network Infrastructure with LTE Backup

Specifications:


Network

  • Bridge Mode
  • Router (NAT) Mode
  • Wireless Distribution System (WDS)
  • Support for PPPoE, Static IP, DHCP
  • Management VLAN (802.1p)
  • Spanning Tree Protocol (802.1d)

Radio

  • Multiple SSID
  • Transmit Power Adjustment

Client Authentication

  • EAP-TTLS/EAP-PEAP/EAP-TLS
  • CHAP/MSCHAP/MSCHAPV2/PAP
  • EAP Outer Authentication Identity
  • RADIUS Server with Certificate Authentication

AP Security

  • Open, WEP
  • 802.1x with Dynamic WEP
  • WPA-PSK/RADIUS
  • WPA2-PSK/RADIUS

Complete VPN Solution

  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing

Device Management

  • Web Administrative Interface
  • InControl Cloud Management
  • SNMP v1, v2c and v3

Power Requirements

  • DCS-AGN/DCS-GN-IP55/DCS-AGN-IP55
    • Universal Input
      • 100V – 240V AC
  • DCS-GN-IP67/DCS-AGN-IP67
    • 802.3af PoE
  • DCS-AGN2-IP67
    • 802.3af PoE/10V – 30V DC

Package Content

  • DCS-AGN
    • 12V2A Power Supply
    • 2x Dual-Band 5dBi Omni Antenna
  • DCS-GN-IP55/DCS-AGN-IP55
    • 12V2A Power Supply
    • Pepwave Passive PoE Injector
  • DCS-AGN-IP67
    • 1x Waterproof Ethernet Kit

Certification

  • FCC, CE, RoHS

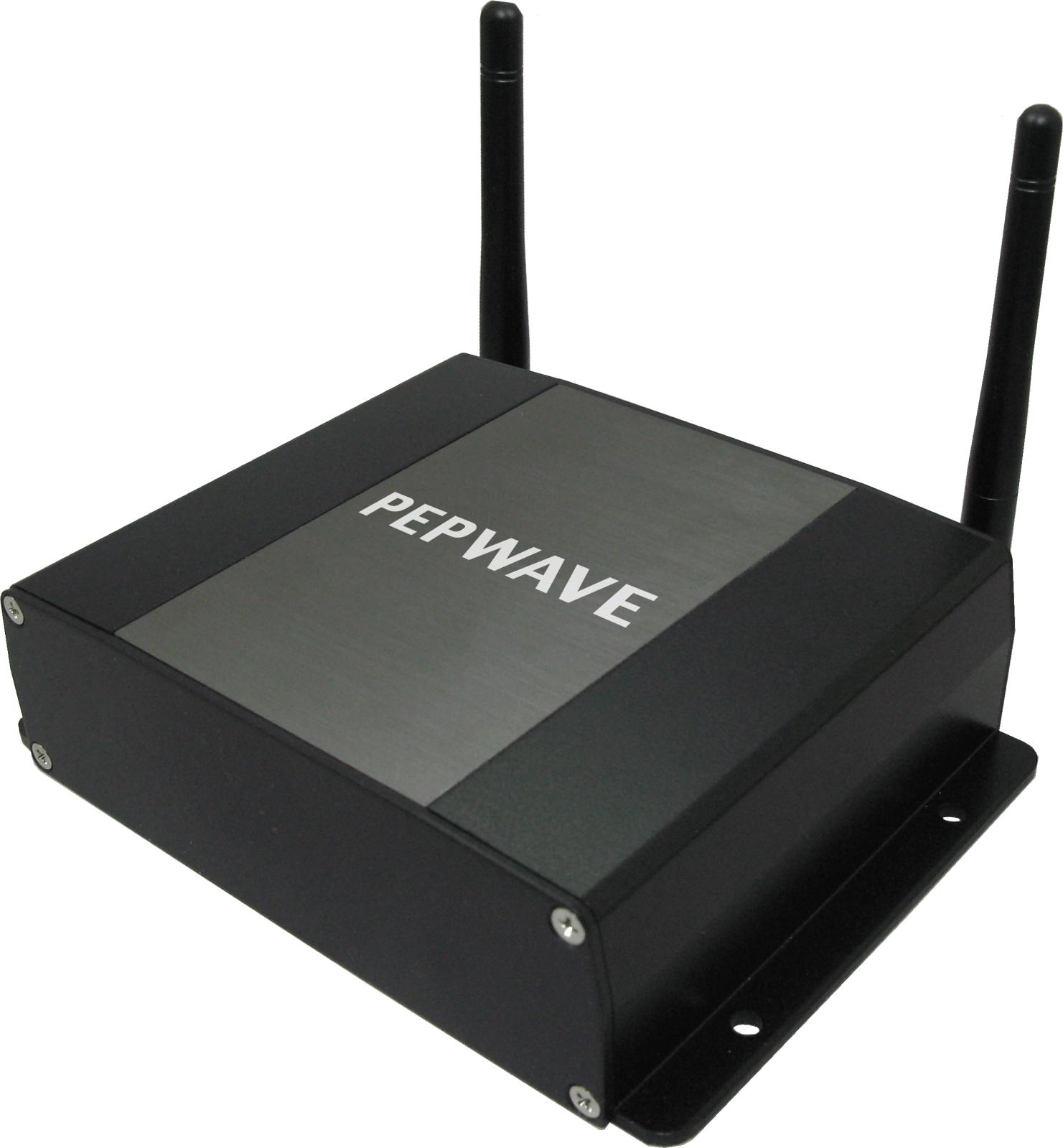

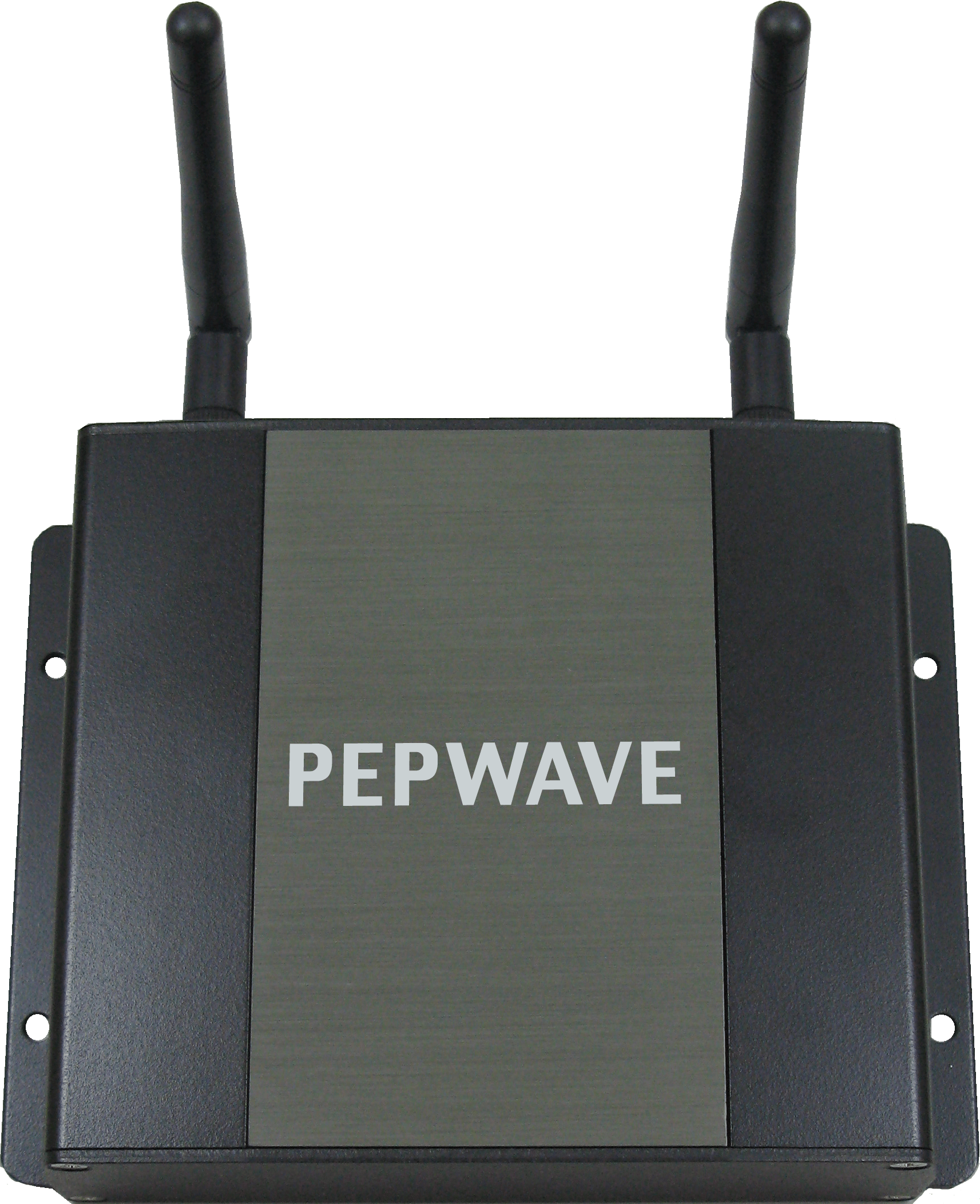

Device Connector – Indoor Rugged

Device Connector – Indoor Rugged Specifications

Device Connector – Outdoor IP55 Compact

Device Connector – Outdoor IP55 CompactSpecifications

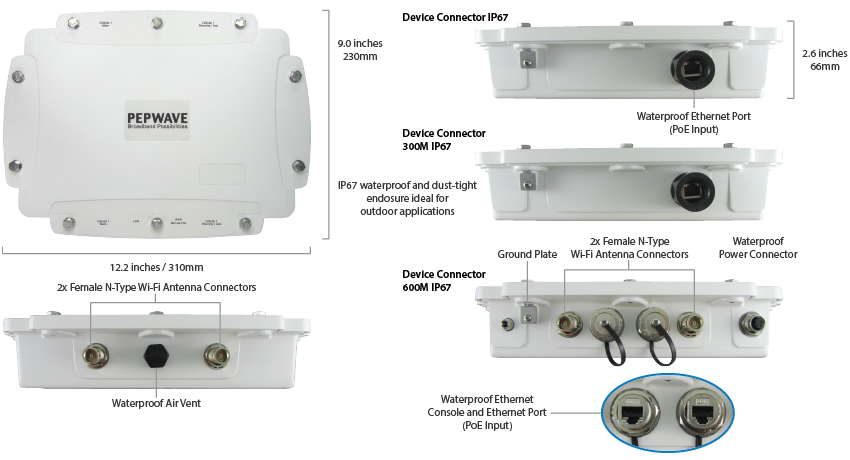

Device Connector – Outdoor IP67 Heavy Duty

Device Connector – Outdoor IP67 Heavy Duty Specifications

All specifications are subject to change without notice.

Model Comparison:


  Indoor Rugged Outdoor IP55 Compact Outdoor IP67 Heavy Duty
Model Device Connector 300M Device Connector IP55 Device Connector 300M IP67
Product Code DCS-AGN DCS-GN-IP55 DCS-AGN-IP67
Wi-Fi Interface
Data Rate 2x2 MIMO,
2.4GHz: 300Mbps or
5GHz: 300Mbps
2x2 MIMO,
2.4GHz: 300Mbps
2x2 MIMO,
2.4GHz: 300Mbps or
5GHz: 300Mbps
802.11b/g/n Wi-Fi * *
802.11a/n Wi-Fi * *
Transmit Power 2412 - 2472 MHz: 17dBm
5180 - 5825 MHz: 17dBm
2412 - 2472 MHz:
26dBm (FCC)
20dBm (CE)
2412 - 2472 MHz: 26dBm (FCC) /20dBm (CE)
5180 - 5825 MHz: 25dBm (FCC) /20dBm (CE)
Maximum Concurrent Users 60 60 60
Built-in Wi-Fi Antenna ^
Ethernet Interface
Ethernet Port 2 3 1 (GbE)
Hardware Features
Enclosure Indoor Metal IP55 Outdoor Enclosure IP67 Outdoor Metal Enclosure
Dimension 5.8 x 5.0 x 1.6 inches
147 x 128 x 40 mm
11.8 x 4.9 inches
300 x 124 mm
9.0 x 12.2 x 2.6 inches
230 x 310 x 66 mm
Weight 0.93 pound
420 grams
1.15 pounds
520 grams
5.84 pounds
2.65 kg
Power Input AC Adapter: AC Input 100V to 240V,
DC Output 12V, 2A
Pepwave Passive PoE:
12V – 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)
802.3af PoE
Power Consumption 12W (max.) 15W (max.) 13W (max.)
Operating Temperature -4° – 149°F
-20° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% - 95% (non-condensing)
Certifications
FCC, CE, RoHS
RF Port Lighting Immunity:
ITU-T K.20 (+/- 1.5 kV)
Warranty 1-Year Limited Warranty

* Device Connector 300M and Device Connector 300M IP67 support only one of 802.11b/g/n and 802.11a/n Wi-Fi at a time.

^ Device Connector IP55 features built-in switchable, integrated 10dBi MIMO directional (75° horizontal x 35° vertical beamwidths) and 4dBi MIMO omni antennas.

Documentation:

Download the Pepwave Device Connector Datasheet (PDF).
