Peplink Pepwave MAX
Professional Bandwidth Bonding Router

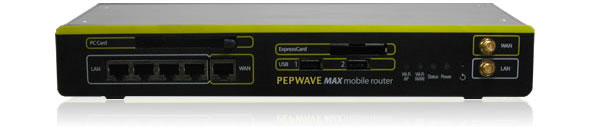

Pepwave MAX mobile router

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

Features

  • 6 WAN Load Balancing & Failover
  • Combine Bandwidth from Multiple Wireless Technologies
  • Automatically Switch to Best Available Link
  • Compatible with ExpressCard, USB, PC Card Modem
  • Connect to 3G HSDPA, EVDO ,Wi-Fi, WiMAX and/or Satellite
  • Dual Wi-Fi Built-in for Receiving Wi-Fi and Local Access Point
  • VPN Bonding for Bandwidth Aggregation
  • Bandwidth Allowance Control
  • 4-Port Ethernet LAN Switch
  • GPS Support

The Ultimate Mobile Router.
The Pepwave MAX mobile router gives you the ultimate in mobile connectivity. With the ability to combine a variety of wireless services, the MAX gives you maximum reliability through automatic link failover and scalability with multi-WAN load balancing and VPN bonding. The Pepwave MAX brings wireline reliability to environments where no other solution can.

Seamless Mobile Connectivity, Anywhere!
There are countless mobile Internet options today: 3G cellular, Wi-Fi, Satellite, WiMAX, LTE, and more. However, coverage and speeds vary drastically between providers and locations. The MAX allows you to combine multiple wireless Internet connections, and intelligently manages them to accommodate the changing, moving environment. Everything is automatic, so you can stay connected and productive.

Faster Wireless Internet with Bonding.
VPN Bandwidth Bonding aggregates all your 3G and wired links, overcoming wireless link performance issues. Uploading pictures, streaming videos, or providing Internet for outdoor events has never been faster and easier. Simply add extra 3G links when you need higher speed and accelerate to ultimate speed on the run!

No Software, No Middleware, No Hassles.
The MAX has the unique ability to manage multiple Internet connections and security policies all from one device. You don't need expensive software packages, or confusing connection managers installed on all of your computers. Simply setup your Internet connections and security policies, and you are ready to go. You can have truly robust mobile communications without bringing your IT staff along for the ride.

Features Details:



WAN

  • Support PPPoE, Static IP, DHCP

LAN

  • Built-in DHCP Server

Network

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • VoIP, SIP ALG, Vonage Support

VPN

  • VPN Bonding
  • IPSec and PPTP VPN Passthrough

Security

  • DoS Prevention
  • Stateful Firewall

Load Balance

  • Intelligent Failover
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Priority
    • Overflow
    • Persistence
    • Least Used
    • Lowest Latency

Management

  • Web Admin Interface
  • Email Notification
  • Web Reporting Services Syslog
  • SNMP v1, v2c and v3

Warranty

  • 1-Year Standard Warranty





Deployment:

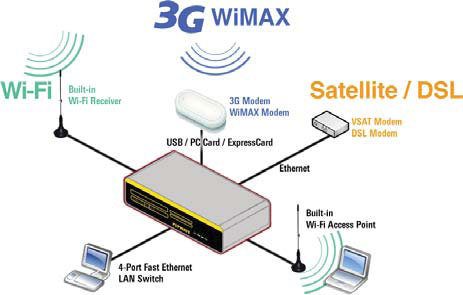

Pepwave MAX deployment

Applications:

Car

  • Reliable Internet on the Move
  • Share Internet Connection Using Local Wi-Fi Access Point
  • Fleet Tracking Using Optional GPS

Rail

  • Fast and Reliable Internet Service for Passengers
  • Stream Location Base Advertisement
  • Real Time News and Network Information
  • Video Surveillance over Central Site
  • Minimal Infrastructure Needed

Marine

  • Fast and Reliable Internet Service for Passengers
  • Automatic Failover to Different Internet at Different Location e.g. Wi-Fi at Port, 3G around Coast, Satellite at Sea
  • For use in Yachts, Cargo Ships, etc.

Public Transportation

  • Fast and Reliable Internet Service for Passengers
  • Stream Location Base Advertisement
  • Real Time News and Network Information
  • Video Surveillance over Central Site

Mobile Command

  • Reliability for Mission Critical Application
  • Seamless Integration into existing wireless infrastructure e.g. City Wi-Fi
  • For use in Police Command Units, Fire Vehicles and other Public Safety vehicles

Media

  • Live Digital Video Stream via Internet
  • Send Digital Footage to Studio using Internet
  • Faster Photo Transmission on the field
  • Essential for a complete Digital Broadcast Infrastructure

Landline Replacement

  • Take Advantage of the 3G Internet Speed
  • Scale Internet for Office Need
  • Broadband Internet Solutions for Event Organizer
  • Enjoy the Same Internet Even When You Move

Remote Area

  • Reliable Internet Access in Remote Location
  • More choice in for Remote Networks

Technical Specifications:

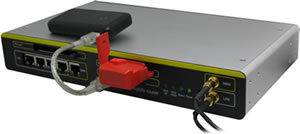

Pepwave MAX mobile router with Wi-Fi WAN, Wi-Fi AP, USB Modem, and Express Card modem placed.

Pepwave MAX mobile router with Wi-Fi WAN, Wi-Fi AP, USB Modem, and Express Card modem placed.

Pepwave MAX specs

Model Pepwave MAX 600
Product Code MAX-600
Functionality
Wi-Fi Receiver
Wi-Fi Access Point
Mode Router (NAT) Mode
Wi-Fi Specification
WAN

200mW 802.11 b/g
1 x Express Card 34
1 x PCMCIA Card (PC Card)
2 x USB
1 x Ethernet WAN

LAN 200mW 802.11 b/g
4-Port Fast Ethernet Switch
Operating Frequency 2412-2462Mhz
Hardware
Antenna 2 x 5dBi Indoor Magnetic-base Antenna
Antenna Connector 2 x RP-SMA Female Connector
Enclosure Ruggedized Metal Enclosure
Rack Ear Mount

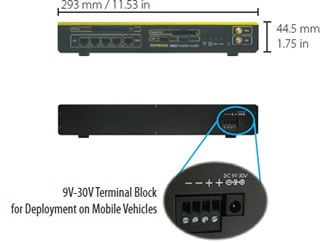

Dimensions

293W x 159.5D x 44.5H mm.
11.53W x 6.28D x 1.75H in.

Weight 1.2kg
2.64lb.
Operational Specifications
Power Input AC Adapter: AC Input 100-240V / DC Output 12V
Terminal Block : 9-30V DC
Power Consumption 23W (max.)
Operating Temperature -40~65°C
-40~149°F
Humidity 15 to 95%
Misc.
Certifications CE, FCC, RoHS
Warranty One-Year Limited Warranty

Support Services

Standard Support Services

  • Unlimited 8 x 5 Email Support
  • 90 Days Telephone Support Calls
  • Standard RMA Service
  • 1-Year Firmware Upgrade
  • 1-Year Hardware Warranty



Peplink TotalCare

  • Unlimited 24 x 7 Email Support
  • Telephone Support Calls
  • Advance RMA Hardware Replacement
  • Firmware Upgrade
  • Hardware Warranty
  • Valid for 1-Year or 3-Year

Documentation:

Download the Peplink Pepwave MAX Datasheet  (PDF).
