Peplink Max Transit 5G
5G Mobile Router Engineered for Transportation Deployments

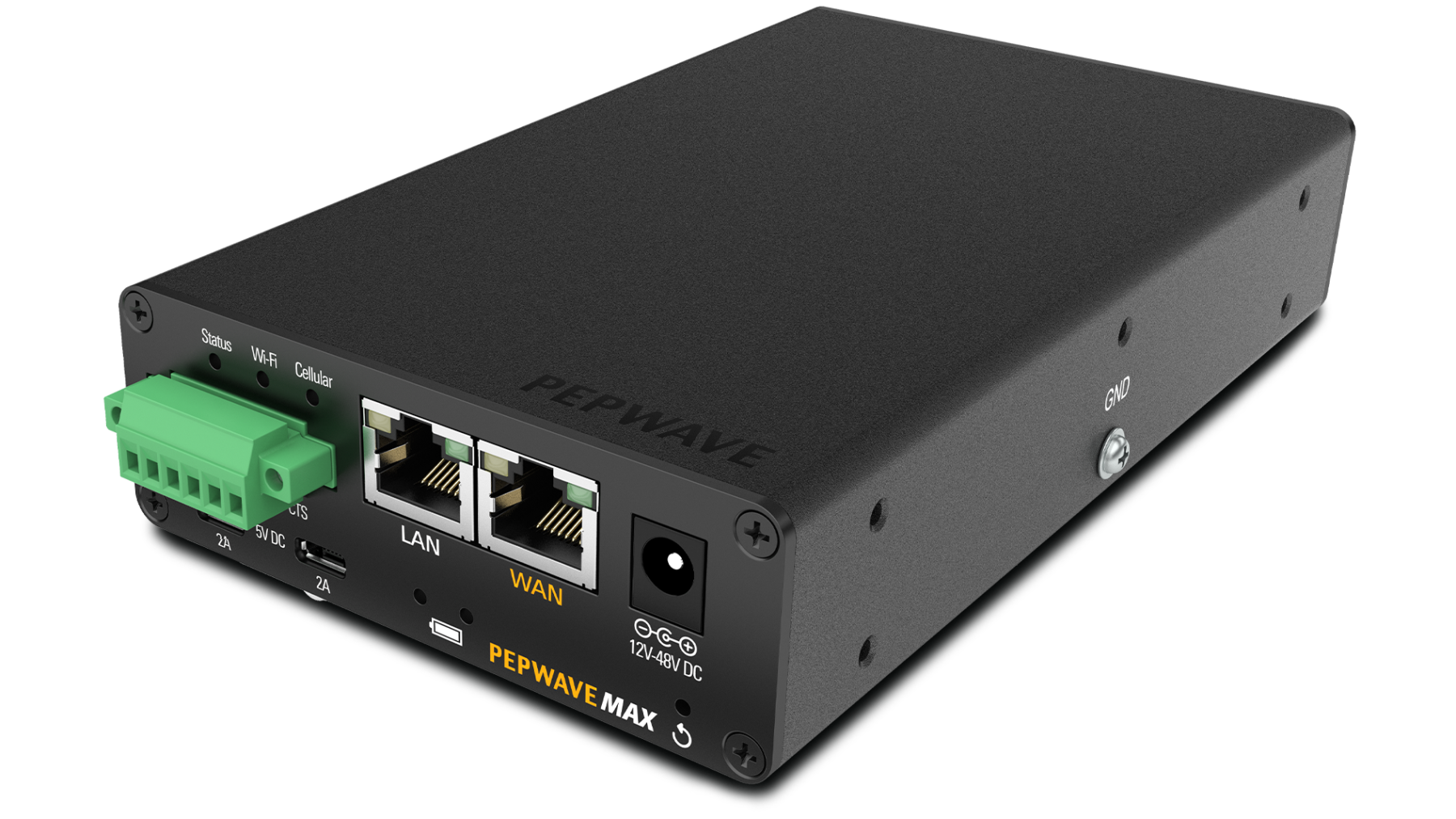

Peplink Max Transit 5G

Peplink Products
MAX Transit 5G
MAX Transit 5G
Single 5G Global / DL 4Gps modem
#MAX-TST-5GD-T-PRM
Get a Quote!

More pricing below, click here!

Overview:

Cellular Branch Networking Router

With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and embedded cellular modem, the MAX Transit is ready to deliver fast, reliable Wi-Fi hotspots to your passengers.

Achieve lower latency, faster speed, and more capability

Transit 5G now supports a wider range of bands offering lower latency to ensure users wield optimal network connectivity.

Now available with PrimeCare

Our one-stop central management and warranty subscription makes building and management of your SpeedFusion network simpler than ever. Enjoy SpeedFusion capability, InControl, FusionHub compatibility, and warranty support with our PrimeCare program.

FirstNet Ready

FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The MAX Transit supports band 14, providing additional coverage as the situation demands.

Simultaneous Dual-Band 11ac Wi-Fi

Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi gives you two independent networks that also work together, maximizing the throughput that your passengers can enjoy.

Benefits:



Integrated Captive Portal with Social Wi-Fi

The MAX Transit comes with a customizable captive portal what allows passengers to login with Facebook. As they login, you can use InControl 2 to see insightful reports on user demographics.


Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.


External Captive Portal for Advertising Servers

The MAX Transit also supports external captive portals, enabling you to connect to an advertising server. That way, your Wi-Fi hotspots can become a source of revenue.


Wi-Fi Mesh Support

Along with an AP Controller, this feature allows for a mesh extension to your network, which can expand network coverage and minimize dead zones.

Features:

Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • IPv6 Support

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Options
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • -Weighted
    • -Enforced
    • -Persistence
    • -Priority
    • -Overflow
    • -Least Used
    • -Lowest Latency
    • -Fastest Respond
  • Time

Complete VPN Solution

  • PepVPN
  • SpeedFusion
    • – Site-to-Site VPN
    • – SpeedFusion Hot Failover
    • – SpeedFusion WAN Smoothing^
    • – SpeedFusion Bandwidth Bonding ^
    • – 256-bit AES Encryption
    • – Pre-shared Key Authentication
    • – Dynamic Routing
    • – X.509 Certificate Support *
  • PPTP VPN Server
  • -RADIUS, LDAP Authentication
  • IPsec VPN (Network-to-Network) @
  • X.509 Certificate Support *

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server

Security

  • 128-bit WEP
  • WPA & WPA 2
  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

AP Controller

  • AP Controller Support
  • Wi-Fi Usage Statistics

Global Positioning System

  • Integrated GPS
  • Device Location Map
  • Location Tracking Data with InControl 2
  • Fleet Management with InControl 2

Captive Portal Support

  • Support for Wired and Wireless LAN Clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page
  • Social Wi-Fi Hotspot support
  • External Captive Portal support

Certifications

  • FCC, CE, RoHS, IC
  • E-Mark
  • EN 61373:1999 IEC 61373:1999 Shock and Vibration Resistance
  • EN 50155 Railway Applications – Electronic Equipment used on Rolling Stock
  • EN 61000 Electromagnetic Compatibility

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Managment
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Specifications:


Max Transit 5G Specifications
WAN Interface 1x 10/100/1000M Ethernet⁺
1x Embedded Cellular Modem with
Redundant SIM Slots
LAN Interface 1x 10/100/1000M Ethernet
Wi-Fi Interface 802.11ac/a/b/g/n 2x2 MIMO
Simultaneous Dual-Band
Transmit Power (2.4GHz / 5GHz) 19 dBm / 21 dBm
Router Throughput 400 Mbps
SpeedFusion Throughput (No Encryption) 100 Mbps
SpeedFusion Throughput (256-bit AES) 60 Mbps
SpeedFusion Features Hot Failover, WAN Smoothing^
Bandwidthing Bonding^
Number of PepVPN SpeedFusion Peers 5^
Cellular Data Rate@ (Downlink / Uplink) 5G: 4 Gbps / 700 Mbps
LTE CAT-20: 2 Gbps / 150 Mbps
Recommended Users 150
Antenna Connector 4x SMA Cellular, 1x SMA GPS,
2x RP-SMA Wi-Fi
Power Input Power Port: 12V - 48V DC
AC Adapter: AC Input 100V - 240V / DC Output 12V
Terminal Block: 12V - 48V DC
2x Micro-USB B with 5V, 2A each for Power Input
Power Consumption 7W (nominal), 18W (max.)
Dimensions 6.3 x 3.8 x 1.3 inches
160 x 97 x 33.5 mm
Weight 1.3 pounds / 590 grams
Operating Temperature -40° – 149°F / -40° – 65°C
Humidity 15% – 95% (non-condensing)
Warranty 1-Year Limited Warranty
Package Content MAX Transit 5G,
12V2A Power Supply (ACW-601),
2x Wi-Fi Dual Band Antennas (ACW-341),
1x GPS Antenna (ACW-232),
4x LTE/5G Antennas (ACW-235),
1 Pair of Mounting Brackets (ACW-724)

Documentation:

Download the Peplink Max Transit 5G Datasheet (PDF).
