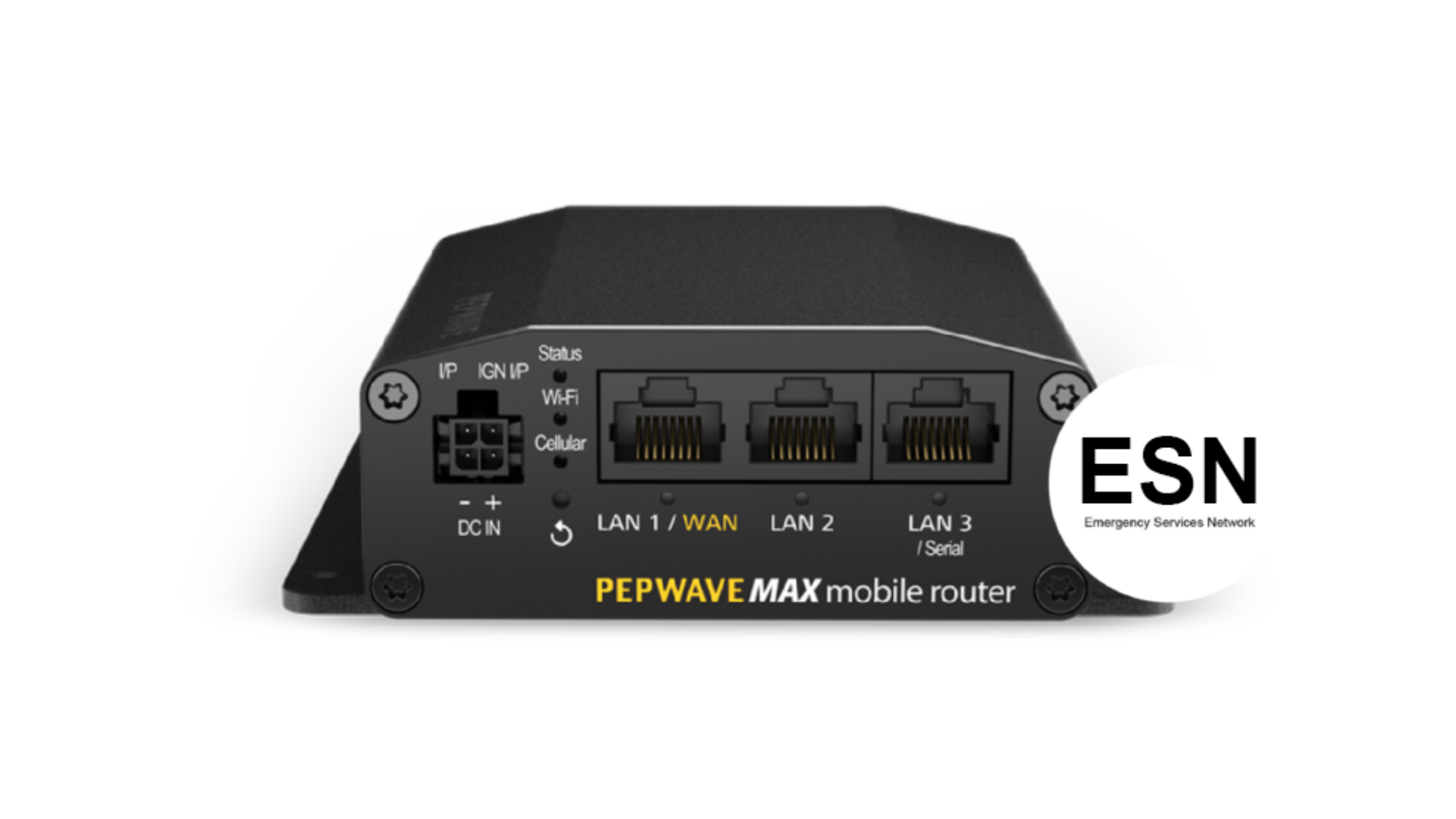

Pepwave MAX BR1 ESN
ESN Certified Routers for Emergency Services

Pepwave MAX BR1 ESN

Sorry, this product is no longer available, Please contact us for a replacement.


Sorry, this product is no longer available, please contact us for a replacement.


More pricing below, click here!

Overview:

Peplink has three routers certified for use in UK’s Emergency Services Network (ESN): the HD2 MBX, the HD4 MBX and the BR1 ESN. These routers have been approved for use in the country’s fleet of first responder and emergency service vehicles.

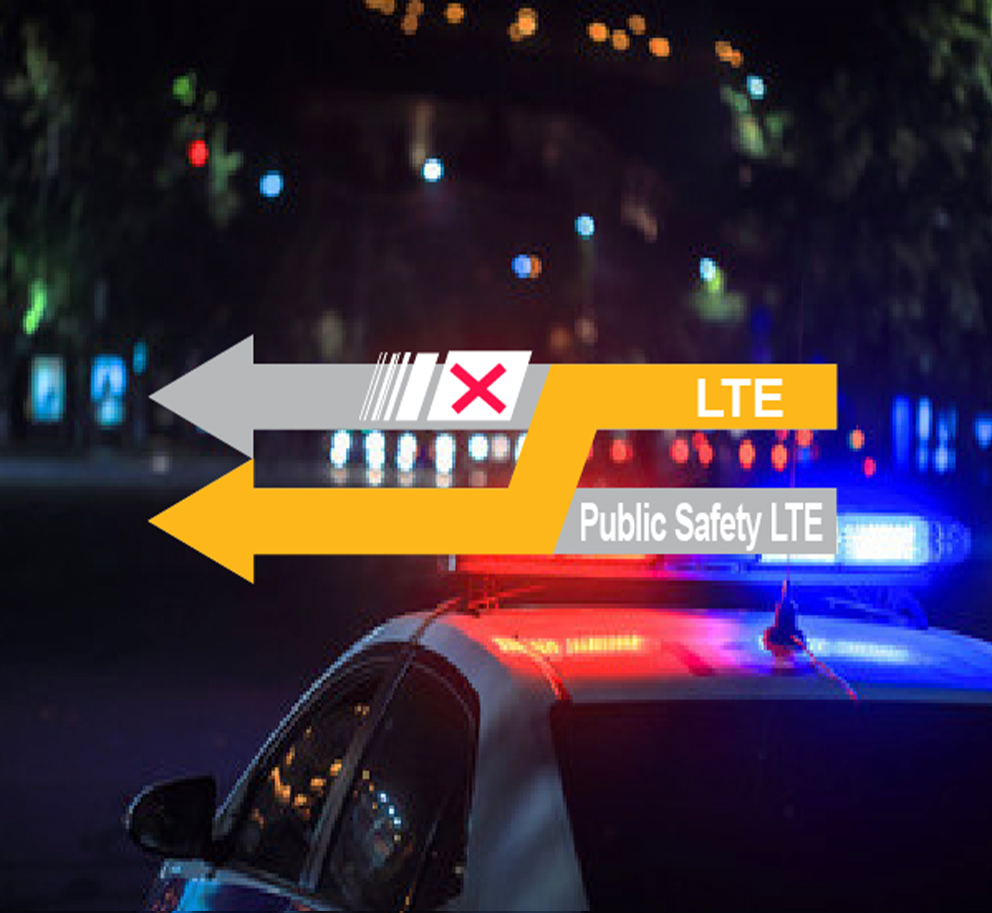

Achieve Unbreakable Connectivity

Use our patented SpeedFusion technology to combine ESN and commercial links into an unbreakable VPN connection that stays up even if a link goes down. As traffic goes from one WAN to the next, your session will continue streaming without any interruption. SpeedFusion also has greater coverage and bandwidth than that of a single cellular link.

carriers supported


Scalable Management

Videos/DVRs

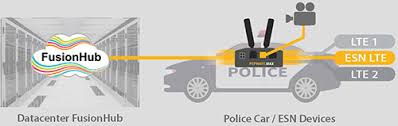

Currently, first responders can only record video on site; live streaming remains a challenge. Use SpeedFusion to bond multiple cellular links into a powerful VPN connection that can stream HD video back to headquarters. WAN Smoothing technology ensures that your video stream remains consistent and uninterrupted even as traffic moves between different WAN links.


Extend 2-Way Radios Anywhere

The MAX Transit Mini has specialized features for vehicular deployments. Ignition sensing, which detects the ignition status of the vehicle, enables the device to turn on and off as the vehicle starts up and shuts down. It is also equipped with GPS, enabling you to track its movements. With InControl’s fleet management, you can review the route history of all your vehicles from any web browser.

Scalable Management

Features:


Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP

Complete VPN Solution

  • PepVPN/SpeedFusion
    • Site-to-Site VPN
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support 1
  • IPsec VPN (Network-to-Network) 2
    • X.509 Certificate Support 1

Captive Portal Support

  • Support for Wired and Wireless LAN clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Package Content

  • MAX BR1 ESN
  • 12V2A Power Supply (ACW-601)
  • 1x 5dBi Wi-Fi Antenna (2.4G) (ACW-304)
  • 1x GPS Antenna (ACW-232)
  • 2x 2dBi 4G LTE Antennas (4G LTE) (ACW-813)

1Feature is available as an upgrade.
2 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

*All specifications are subject to change without notice.

Specifications:


  MAX BR1 ESN
WAN Interface 1x 10/100M Ethernet Port ^
LAN Interface 3x 10/100M Ethernet Port
(1x WAN Port shared with LAN Interface)
(1x Serial Port shared with LAN Interface)
Cellular WAN Interfaces Single LTE Modem
Redundant SIM Slots Yes
SpeedFusion Hot Failover Yes^
Drop-In Mode Yes
Wi-Fi Interface 802.11b/g/n Wi-Fi WAN or AP
Downlink/Uplink Data Rate: 600Mbps/150Mbps
Recommended Users 60
Stateful Firewall Throughput 100Mbps
Antenna Connectors 2x SMA Cellular, 1x SMA GPS, 1x RP-SMA Wi-Fi
Power Input Passive PoE Input (WAN Port, 12V – 28V DC) / Power + GPIO
Power Consumption 12W (max.)
Dimensions 4.1 x 4.3 x 1.2 inches |
105 x 110 x 30 mm
Weight 0.54 pound |
244 grams
Operating Temperature -40° – 149°F
-40° – 65°C
Certifications CE, RoHS, ESN
Warranty 1-Year Limited Warranty

Documentation:

Download the Pepwave MAX BR1 ESN (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).
