Pepwave MAX BR1 M2M
Compact LTE Router. Dedicated for M2M Deployments

Pepwave MAX BR1 M2M

Pepwave Products
Pepwave MAX BR1 M2M
MAX BR1 M2M
#MAX-BR1-M2M-LTE-E-T
Contact us for Pricing!
Feature Add-on
Advanced Feature Pack
Package includes a software license key for Advanced Car-Fi Roaming; and SpeedFusion and IPsec X.509 Certificate Support
#MAX-BR1-ADV
Contact us For Lowest Price
PepVPN License Key for Velocity and BR1 family
Enables up to 5 PepVPN peers
#PVN-LC-05
Contact us For Lowest Price

More pricing below, click here!

Overview:

The MAX BR1 M2M is compact (1.1 x 3.8 x 4.8 inches), and tough enough to be placed anywhere. It features a 9-pin serial connector for easy and durable M2M connectivity. Also, it can be remotely monitored and managed using InControl 2 Cloud management, saving service trips.

Redundant SIM Slots for Multiple Carriers.

Redundant SIM slots with automatic switching for reliable network. This is particularly useful for remote deployments where connectivity to any given carrier is unreliable. You can also set the MAX M2M mobile router to automatically switch SIM cards when you’re in danger of exceeding a data cap.

Remote Device Management

Remotely manage the MAX BR1 M2M by the InControl 2 cloud based management platform. Schedule automated firmware updates for groups of devices, and more.

Fast Setup and Cloud Management

The BR1 M2M has a straightforward and accessible interface. Anyone can get it up and running — no background in IT needed. Plus, the BR1 M2M cloud management capabilities make large-scale management a breeze. You can monitor and manage hundreds of devices on a single screen. Choose from on-premise or public cloud options.

IoT Ready

With the BR1 M2M you also get all the building blocks of SDN for the future Internet of Things: third party integration, API, and automation. As the IOT evolves, you can be confident your router will be ready.

Small but Sturdy

  • Wide Temperature Range-Device has as a wide temperature range (-40° to +149°F / -40° to +65°C) and can be deployed in even the harshest environments.
  • Din-Rail Mountable-Install your BR1 M2M in minutes with just a screwdriver. It attaches directly to any DIN rail for quick and secure deployment
  • 9-pin serial connector- BR1 M2M also features a 9-pin serial connector for easy and durable M2M connectivity.
  • SF Hot Failover- Automatically re-establishes IPsec VPN connection on lower priority link when your primary WAN fails. VPN stays up, and you stay seamlessly connected.
  • Application:

    Topology

    Bus Wi-Fi - Customize Captive Portal & Fleet Managment

    1.

    Connect your device to the BR1 M2M’s RS232 Serial port.

    2.

    The cable connection can failover to cellular.

    3.

    Establish a virtual COM port at headquarters to monitor and control the device connected to the BR1 M2M’s port.

    Specifications:


    Software

    • Pepwave MAX Firmware

    WAN

    • Support for PPPoE, Static IP, DHCP
    • WAN Link Health Check
    • Bandwidth Allowance Monitor
    • Support for Dynamic DNS services
    • WAN Port Convertible into LAN Port

    LAN

    • DHCP Server for LAN Clients
    • Extended DHCP Option
    • DHCP Reservation
    • DNS Proxy for LAN Clients
    • VLAN on LAN Support

    Networking

    • NAT and IP Forwarding
    • Static Routes
    • Port Forwarding
    • Many to One, One to One NAT
    • NAT Pool
    • SIP ALG, H.323 ALG
    • UPnP, NAT-PMP

    Complete VPN Solution

    • PepVPN/SpeedFusion
      • Site-to-Site VPN
      • Hot Failover
      • 256-bit AES Encryption
      • Pre-shared Key Authentication
    • IPsec VPN (Network-to-Network) 2

    Captive Portal Support

    • Support for Wired and Wireless LAN clients
    • Support RADIUS Authentication
    • Time and Usage Quotas on Open Access Mode
    • Built-in Customizable Splash Page

    Advanced QoS

    • Individual Bandwidth Limit
    • Application Prioritization
      • SIP, HTTPS, VPN QoS
      • Custom Application QoS

    Device Management

    • Web Administrative Interface
    • Command Line Interface
    • InControl Cloud Management
    • Email Notification
    • Active Client and Session Lists
    • Bandwidth Usage Statistics
    • Syslog Service
    • SNMP v1, v2c and v3

    Security

    • Stateful Firewall
    • DoS Prevention
    • Web Blocking

    Package Content

    • MAX BR1 M2M
    • 12V2A Power Supply
    • 2x 2dBi 4G LTE Antennas

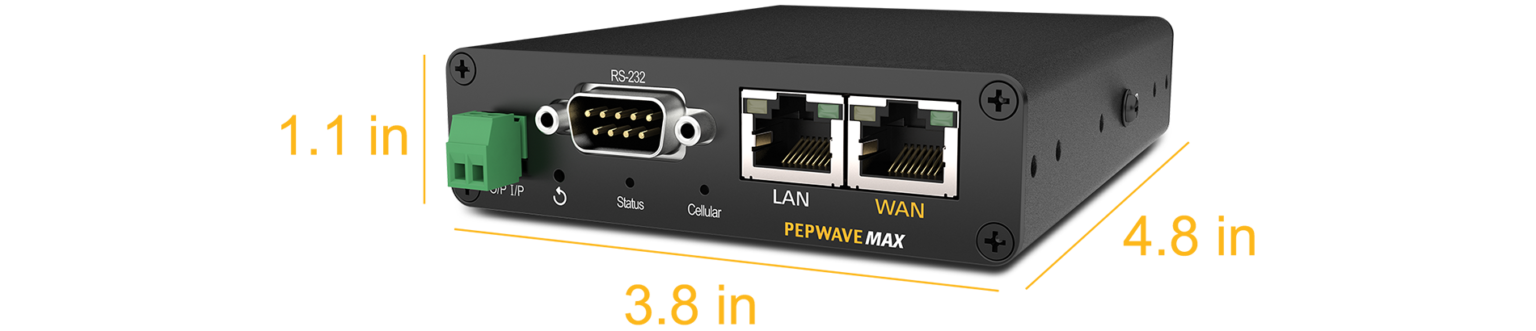

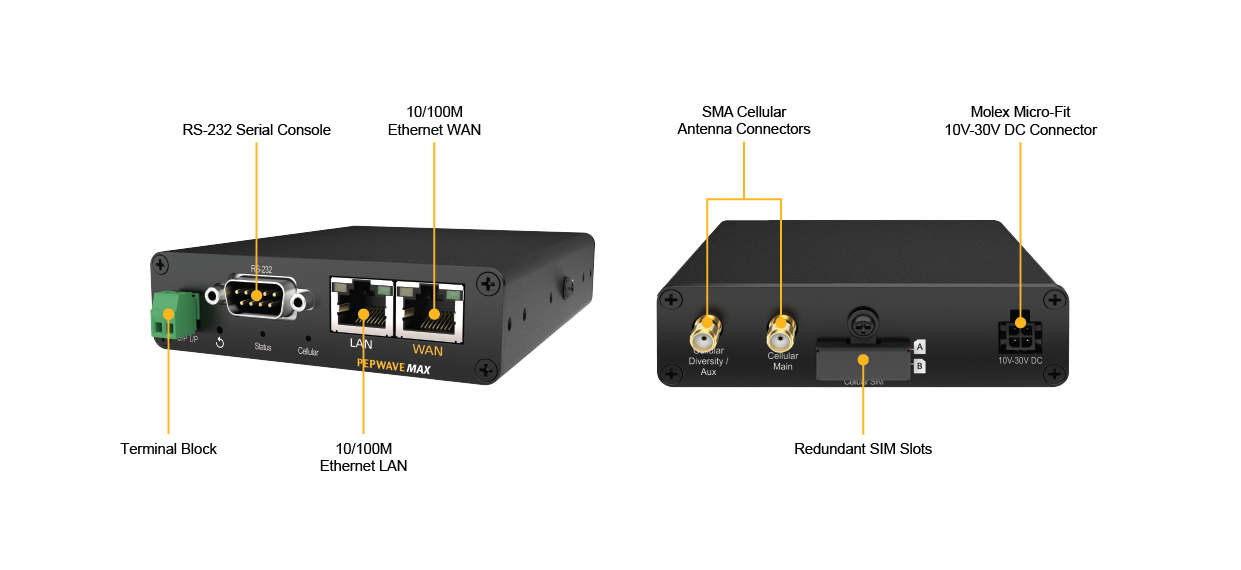

    MAX BR1 M2MSpecifications

    MAX BR1 M2MSpecifications

    All specifications are subject to change without notice.

    Model Comparison:


    Model MAX BR1 MAX BR1 MK2 MAX BR1 MINI MAX BR1 M2M MAX BR1 SLIM MAX BR1 ENT MAX BR1 PRO MAX HOTSPOT
    Product Code BR1-LTE/
    BR1-LTEA
    BR1-MK2-LTE/
    BR1-MK2-LTEA
    BR1-MINI-LTE/
    BR1-MINI-LTEA
    BR1-M2M BR1-SLIM-LTE BR1-ENT-LTE/
    BR1-ENT-LTEA
    BR1-PRO-LTE/
    BR1-PRO-LTEA
    MAX-HSP
    Ethernet WAN Ports 1 (FE) 1 (GE) 1 (FE) # 1 (FE) 1 (FE) 1 (GE) 1 (GE) 1 (GE)
    Ethernet LAN Ports 2 (FE) 1 (GE) 1-2 (FE) 1 (FE) 1 (FE) 2 (GE) 4 (GE) 1 (GE)
    Embedded 4G LTE/3G 1 1 1 1 1 1 1 1
    Cellular Modem @ LTE / LTE-A LTE / LTE-A LTE / LTE-A LTE LTE LTE / LTE-A LTE / LTE-A LTE / LTE-A
    SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
    Redundant SIM Slots Yes Yes Yes Yes Yes Yes Yes Yes
    USB WAN Modem Port No No No No No 1 No No
    Wi-Fi WAN1 Yes Yes Yes # No Yes No Yes Yes
    Wi-Fi AP1 Yes Yes Yes No Yes No Yes Yes
    Maximum number of SSID 16 16 16 N/A 16 No 16 16
    Transmit Power (2.4GHz) 25dBm 24dBm 24dBm No 25dBm No 26dBm 25dBm /
    17dBm (CE)
    Transmit Power (5GHz) No 17dBm No No No No 25dBm 23dBm
    Recommended Users2 1-60 1-60 1-60 M2M 1-60 25-100 1-60 1-60
    Router Throughput3 100Mbps 100Mbps 100Mbps 100Mbps 100Mbps 300Mbps 120Mbps 100Mbps
    Core Functionality
    802.1q VLANs Supported 16 16 16 16 16 16 16 16
    Drop-In Mode Yes # Yes # Yes # Yes # Yes # Yes # Yes # No
    High Availability Yes Yes Yes No No Yes Yes Yes
    IP Passthrough Yes Yes Yes Yes Yes Yes Yes Yes
    WAN as LAN Yes Yes Yes Yes Yes Yes Yes Yes
    Web Blocking Yes Yes Yes Yes Yes Yes Yes Yes
    Web Filtering Blacklist Lite Lite Lite Lite Lite Lite Lite Lite
    VPN Functionality
    PepVPN Yes Yes Yes Yes Yes Yes Yes Yes
    SpeedFusion Hot Failover Yes Yes Yes # Yes Yes Yes Yes Yes
    SpeedFusion WAN Smoothing Yes Yes Yes # No Yes Yes Yes No
    SpeedFusion Bandwidth Bonding No No No No No No No No
    Number of PepVPN SpeedFusion Peers 2/5 ! 2/5 ! 2/5 ! 2/5 ! 2/5 ! 2/5/20 - 2/5 ! 2
    PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 40Mbps 40Mbps 40Mbps 100Mbps 40Mbps 40Mbps
    PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 20Mbps 20Mbps 20Mbps 60Mbps 20Mbps 20Mbps
    Central Management
    InControl Cloud Management Yes Yes Yes Yes Yes Yes Yes Yes
    GPS Fleet Management Yes Yes Yes No Yes Yes Yes No
    Hardware Features
    Enclosure Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal IP50 Compact, Indoor Metal Compact, Indoor Metal Compact, Indoor Metal Plenum-rated, Indoor Plastic
    PoE Output No No No No No 802.3af PoE Output * No No
    Terminal Block Power Connector for
    Mobile/Vehicular Deployment
    Yes Yes Yes Yes Yes Yes Yes Yes
    Dimensions
    (Height x Width x Depth)
    4.1 x 4.3 x 1.2 inches
    105 x 110 x 30 mm
    1.6 x 5.8 x 5.0 inches
    40 x 147 x 128 mm
    4.1 x 4.3 x 1.2 inches
    105 x 110 x 30 mm
    4.8 x 3.8 x 1.1 inches
    120 x 97 x 26mm
    4.8 x 3.8 x 1.1 inches
    120 x 97 x 26mm
    1.6 x 5.8 x 5.0 inches
    40 x 147 x 128 mm
    1.6 x 10.2 x 5.6 inches
    40 x 260 x 143 mm
    6.8 (diameter) x 1.5 inches
    173 (diameter) x 38 mm
    Weight 0.54 pounds
    244 grams
    0.96 pounds
    435 grams
    0.54 pounds
    244 grams
    0.8 pound
    350 grams
    0.8 pound
    350 grams
    0.96 pounds
    435 grams
    2.65 pounds
    1.2 kg
    0.89 pounds
    405 grams
    Operations
    AC Adapter AC Input 100V-240V
    DC Output 12V, 2A
    AC Input 100V-240V
    DC Output 12V, 2A
    AC Input 100V-240V
    DC Output 12V, 2A
    AC Input 100V-240V
    DC Output 12V, 2A
    No AC Input 100V-240V
    DC Output 12V, 2A
    AC Input 100V – 240V
    DC Output 12V, 3A
    No
    Power Input DC 12V-30V 2A DC 10V-30V 2A DC 12V – 28V 2A DC 10V-30V, 2A Micro USB 5V 2A DC 10V-56V 2A DC 12-28 V PoE: 802.3at
    Terminal Block No DC 10V-30V 2A No DC 10V-30V, 2A DC 12V-24V 2A DC 10V-56V 2A DC 12-28 V, 2A No
    Power Consumption Max.: 12W Max.: 16W, Typical: 11W, Min.: 8W Max.: 12W Max.: 10W, Typical: 8.5W, Min.: 6W Max.: 10W, Typical: 8.5W, Min.: 6W Max.: 16W, Typical: 11W, Min.: 8W Max.: 25W Max.:18W
    Operating Temperature -40° – 149°F
    -40° – 65°C
    -40° – 131°F
    -40° – 55°C
    -40° – 149°F
    -40° – 65°C
    -40° – 149°F
    -40° – 65°C
    -40° – 149°F
    -40° – 65°C
    -40° – 149°F
    -40° – 65°C
    -40° – 149°F
    -40° – 65°C
    -5° – 113°F
    -5° – 45°C
    Humidity 15% – 95% (non-condensing)
    Certifications
    FCC, CE, RoHS Yes Yes Yes Yes Yes Yes Yes Yes
    Certifications – Motor Vehicle
    E-Mark Yes Yes Yes Yes Yes Yes No No
    Certifications – Rolling Stock
    EN 61373 Shock and Vibration Resistance Yes Yes Yes Yes Yes No No No
    EN 50155
    Railway Applications – Electronic
    Equipment used on Rolling Stock
    Yes Yes Yes No Yes No No No
    EN 61000
    Electromagnetic Compatibility
    Yes Yes Yes No Yes No No No
    Warranty 1-Year Limited Warranty

    [1] The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
    [2] Recommendation for sizing purposes only. No software restrictions applied.
    [3] Router Throughput is valid only for currently shipping devices running Firmware 7.0.1 or later. Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
    ^ Certifications pending.
    * Optional PoE Activation Kit is required to activate 802.3af PoE Output.
    ! 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05.
    ~ 2 PepVPN Peers are enabled by default. Can be increased to 5 Peers using license PVN-LC-05 or to 20 Peers using license MAX-HD-020-SPF.
    # Sold Separately.
    @ LTE-A option: 300Mbs / 50Mbs available. (LTE option: 100Mbs / 50Mbs)

    Documentation:

    Download the Pepwave MAX BR1 M2M (PDF).

    Download the Pepwave MAX Full Comparison Chart (PDF).
