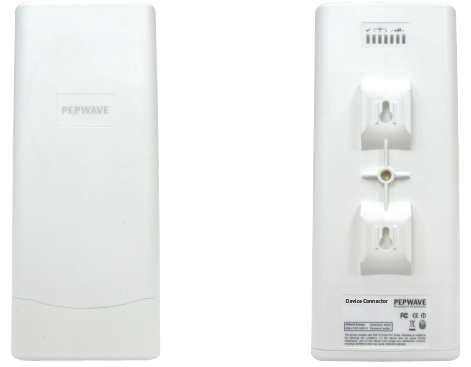

Pepwave MAX BR2 IP55
IP55 Outdoor 4G LTE/3G Router

Pepwave MAX BR2 IP155

Peplink Products
Pepwave MAX BR2
MAX BR2 Pro 5G
2x Embedded 5G Modems
#MAX-BR2-PRO-5GH-T-PRM
Get a Quote!

More pricing below, click here!

Overview:

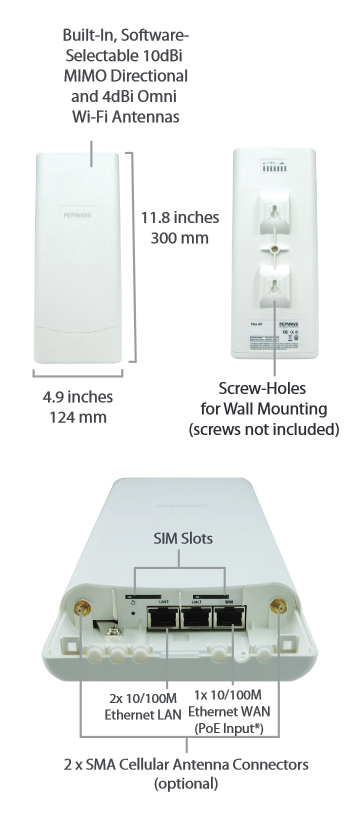

Waterproof IP55 Enclosure

Deploy the BR1 IP55 with confidence in harsh indoor and outdoor environments. Its waterproof IP55 metal enclosure stands up to dust, vibration, and inclement weather, making it a great choice for industrial, emergency, and other heavy-duty applications.

Embedded MIMO & Omni Antenna

Configure your antenna on the fly. The BR1 IP55's built-in MIMO directional and Omni antennas are software selectable, so it's easy to optimize antenna performance at any time.

Built-in PoE & 3-Port Switch

Cut down on cabling and simplify deployments. The BR1 IP55 includes a built-in 3-port LAN switch to reduce clutter and the need for extra equipment. It also offers 802.3af PoE input and output, so one wire is all you need for both connectivity and power you can share with security cameras and other devices.

Application:

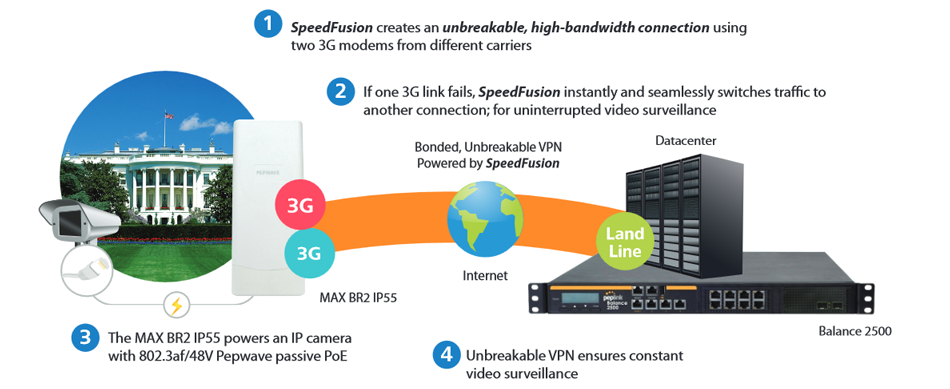

24/7 Unbreakable Video Surveillance powered by SpeedFusion Hot Failover

24/7 Unbreakable Video Surveillance powered by SpeedFusion Hot Failover

Specifications:

Software

  • Pepwave MAX Firmware

WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Option
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support

Load Balancing

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms
    • Weighted
    • Enforced
    • Persistence
    • Priority
    • Overflow

Advanced QoS

  • Individual Bandwidth Limit
  • Application Prioritization
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
    • Site-to-Site VPN
    • Hot Failover
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support 1
  • IPsec VPN (Network-to-Network) 2
    • X.509 Certificate Support 1

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking

Captive Portal Support

  • Support for Wired and Wireless LAN clients
  • Support RADIUS Authentication
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Device Management

  • Web Administrative Interface
  • Command Line Interface
  • InControl Cloud Management
  • Email Notification
  • Active Client and Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Power Requirements

  • Pepwave Passive PoE
    • 12V – 48V DC
    • 48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output

Package Content

  • MAX BR2 IP55
  • Pepwave Passive PoE Injector

1Feature is available as an upgrade.
2 IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.

MAX BR1/BR2 IP55 Specifications

All specifications are subject to change without notice.

Compare:


Model MAX BR1 IP55 MAX BR2 IP55 MAX HD2 IP67
Ethernet WAN Ports 1 (FE) 1 (FE) 1 (GE)
Ethernet LAN Ports 2 (FE) 2 (FE) 1 (GE)
Embedded 4G LTE/3G 1 2* 2
SIM Card Size Mini-SIM (2FF) Mini-SIM (2FF) Mini-SIM (2FF)
Wi-Fi WAN 1
Wi-Fi AP 1
Wi-Fi Standard 802.11b/g/n
300 Mbps 2x2 MINO
802.11b/g/n
300 Mbps 2x2 MINO
Transmit Power (2.4GHz) 28dBm 28dBm
Transmit Power (5GHz)
Recommended Users 2 1-25 1-25 1-50
Router Throughput 3 100Mbps 100Mbps 100Mbps
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion Bandwidth Bonding
Number of PepVPN SpeedFusion Peers 2 2 2
PepVPN/SpeedFusion Throughput (No Encryption) 40Mbps 40Mbps 60Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 20Mbps 30Mbps
Central Management
InControl Cloud Management
GPS Fleet Management
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Support 10
Hardware Features
Enclosure Outdoor IP55 All-Weather Outdoor IP55 All-Weather Outdoor IP67 All-Metal
PoE Output Up To Two 802.3af or 48V Pepwave Passive PoE Outputs Up To Two 802.3af or 48V Pepwave Passive PoE Outputs
Dimensions 1.6 x 10.2 x 5.7 inches
39.5 x 260 x 143 mm
1.6 x 5.0 x 5.8 inches
40 x 128 x 147 mm
9.0 x 12.2 x 2.6 inches
230 x 310 x 66 mm
Weight 2.65 pounds
1.2 kg
0.96 pounds
435 grams
5.84 pounds
2.65 kg
Operations
Power Input Pepwave Passive PoE: 12V - 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)^
Pepwave Passive PoE: 12V - 48V DC, 2A
(48V Pepwave Passive PoE Input is Needed for 802.3af or Pepwave Passive PoE Output)^
Power over Ethernet 802.3at^
DC: 10V - 30V, 3A
Power Consumption Max.: 16W, Typical: 11W, Min.: 8W Max.: 16W, Typical: 11W, Min.: 8W 25W (max.)
Operating Temperature -40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
RF Port Lightning Immunity:
ITU-T K.20 (+/- 1.5 kV)
Certifications – Motor Vehicle
E-Mark
Certifications – Rolling Stock
Shock and Vibration Resistance:
EN 61373 EN 61373:2010
EN 61000: Electromagnetic Compatibility
Warranty 1-Year Limited Warranty

1 The frequency range for 802.11b/g/n Wi-Fi is 2412−2472 MHz.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
4 Cache Throughput refers to the speed of routing content from hard disk to LAN.
* MAX BR2 IP55 supports two embedded 3G modems only.
^ 48V Pepwave Passive PoE for BR1/BR1 IP55 and 802.af PoE Injector for HD2 IP67 are available separately.

Documentation:

Download the Pepwave MAX BR1/BR2 IP55 Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).
