MAX HD1 Dome
Single Cellular Router for Mobile Outdoor Deployments


MAX HD1 Dome
Peplink Products
Peplink MAX HD1 Dome
Peplink MAX HD1 Dome
MAX HD1 DOME (CAT 18), 1x Embedded LTE Modems (WAN), 1x 10/100/1000M (LAN)
#MAX-HD1-DOM-M-GLTE-G
Contact us For Lowest Price

More pricing below, click here!

Overview:

Minimum Cable Loss, Best Cellular Signal Quality

The HD1 Dome provides single-cellular Bandwidth Bonding in an IP67 enclosure that has a minimal profile on the rooftop while providing maximum signal. With redundant SIM, the HD1 Dome supports single cellular radios and four SIM cards. Combine the HD1 Dome with the SIM Injector, and the number of cards increases to twelve.

MAX HD1Dome

Simple Installation Running a Single Ethernet Cable

The HD1 Dome has a M35 screw mount, and only requires a single Ethernet cable to install. For wall or pole mounted deployments, the HD1 Dome comes with an Ethernet splitter and a mounting rack that provides a multitude of installation options.

MAX HD1 Dome

8 Additional SIM With the SIM Injector

With the addition of the SIM Injector, the HD1 Dome can support up to 12 SIM at your fingertips. Simply connect an Ethernet cable between the SIM Injector and the HD1 Dome. The SIM Injector is capable of PoE output, so you don’t need to add another PoE switch to your deployment.

Features:

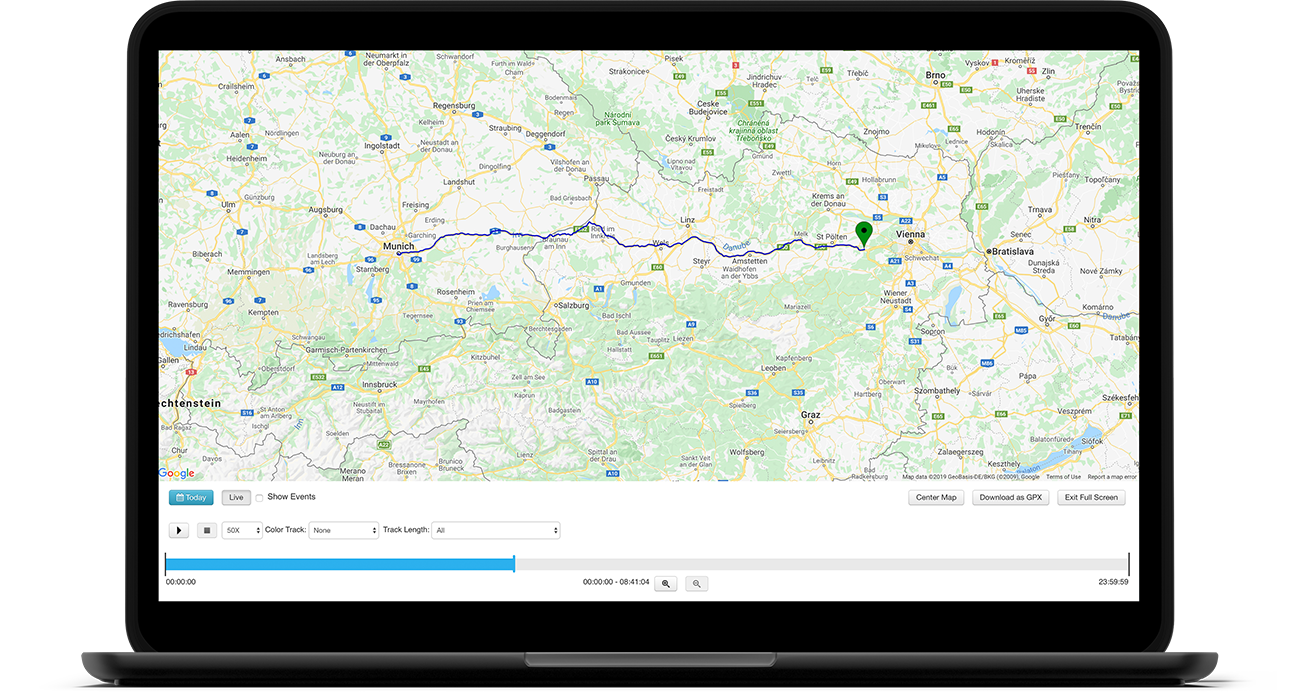

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device. InControl 2 is our cloud based device management, monitoring, and reporting tool designed specifically for Peplink and Pepwave devices.

Integrated Antennas

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot

Sim Injector

Multiple Mounting Options

The HD1 Dome offers significant deployment flexibility due to its modular construction. By itself, it has an M35 thread, making it easy to mount on top of any pole or on the rooftop of any vehicle.

The HD1 Dome comes with an Ethernet splitter that enables an additional GE LAN output. With the splitter installed, the HD2 Dome can then be used with the included mounting bracket to fix onto any wall, or to securely tie onto any pole.

The HD1 Dome, Ethernet splitter, and the mounting bracket are all included, so you can deploy this device just about anywhere.

Deploy it Anywhere

SIM Injector – More SIM, More Range

Together, the HD1 Dome and SIM Injector can make deployments significantly easier to set up and manage.

Sim Injector

Certified Toughness: In addition to rugged metal enclosure, the MAX HD1 is certified on:

  • Shock and vibration resistance
  • RF Port Lightning Immunity
  • Railway Applications
  • Electromagnetic Compatibility
  • Specifications:


      MAX HD 1 Dome
    WAN Interface 1x Embedded LTE Modems with Redundant SIM Slots#
    LAN Interface 1x 10/100/1000M Ethernet Port
    Downlink/Uplink Datarate 1.2 Gbps/150 Mbps (CAT-18)
    Enclosure Rugged outdoor IP67
    Recommended Users 150
    Cellular Antenna 4×4 Internal MIMO Antennas
    1x Internal GPS Antenna
    included Antenna Built-In Omni Antenna
    Antenna gain: 5dBi
    Power Input 1x Power over Ethernet 802.3at
    Power Consumption 20W (max)
    Dimensions 4.33in. (radius) x 4.49in. (height) | 110mm (radius) x 114mm (height)
    Weight With Ethernet Splitter (1700 grams, 3.75 pounds)) | Without Ethernet Splitter (1200 grams, 2.65 pounds)
    Operating Temperature -40° – 149°F | -40° – 65°C
    Humidity 15% – 95% (non-condensing)
    Certifications FCC, CE, RoHS
    Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
    RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)
    Package Content MAX HD1 Dome
    Ethernet Splitter
    Mounting Kit
    C14 power cord
    56V PSU
    Power Requirement 802.3atg
    Warranty 1-Year Limited Warranty

    Documentation:

    Download the MAX HD 1 Dome Datasheet (PDF).
