MAX HD4 IP67
Quad 4G/3G Mobile Outdoor Router


MAX HD4 IP67
Peplink Products
Peplink MAX HD4 IP67
Peplink MAX HD4 IP67
Dual 4G LTE Outdoor Mobile Router
#MAX-HD4-M-LTEA-W-IP67
Contact us for Pricing!

More pricing below, click here!

Overview:

MAX HD4 IP67

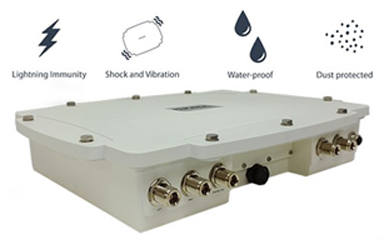

Dedicated for Heavy-Duty Applications

The HD4 IP67 outdoor router has a waterproof IP67 metal enclosure that stands up to dust, vibration, and inclement weather. And, it is certified shock and vibration resistant, making it a great choice for construction, drilling, and other heavy-duty applications.

  • Dust Protection
  • Shock & Vibration Protection
  • Water Proof (IP-67 Enclosure)

MAX HD4 IP67

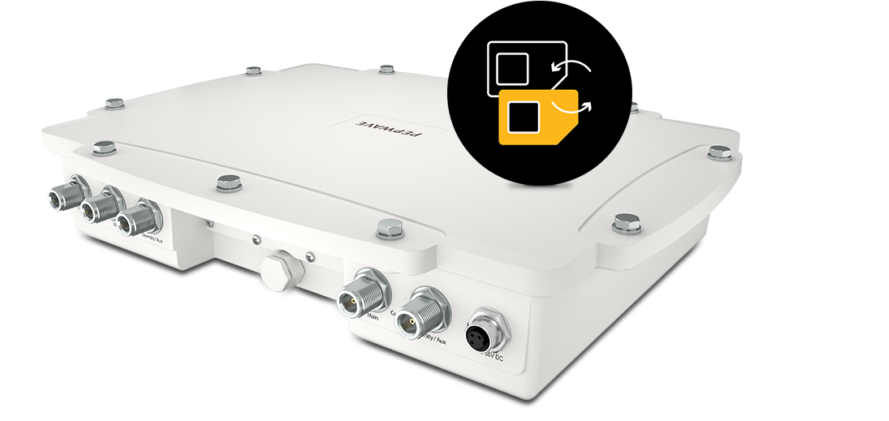

Quad Cellular and Redundant SIM slots for Multiple Carrier.

The HD4 IP67 includes four built-in outdoor 4G LTE/3G modems and four Redundant SIM slots. It allows you to use the same or different cellular providers for bandwidth bonding or eliminating blind spots. List of supported 4G LTE carriers at: peplink.com/lte-networks/


MAX HD4 IP67

Speed & Reliability. Brought by SpeedFusion™

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.


MAX HD4 IP67

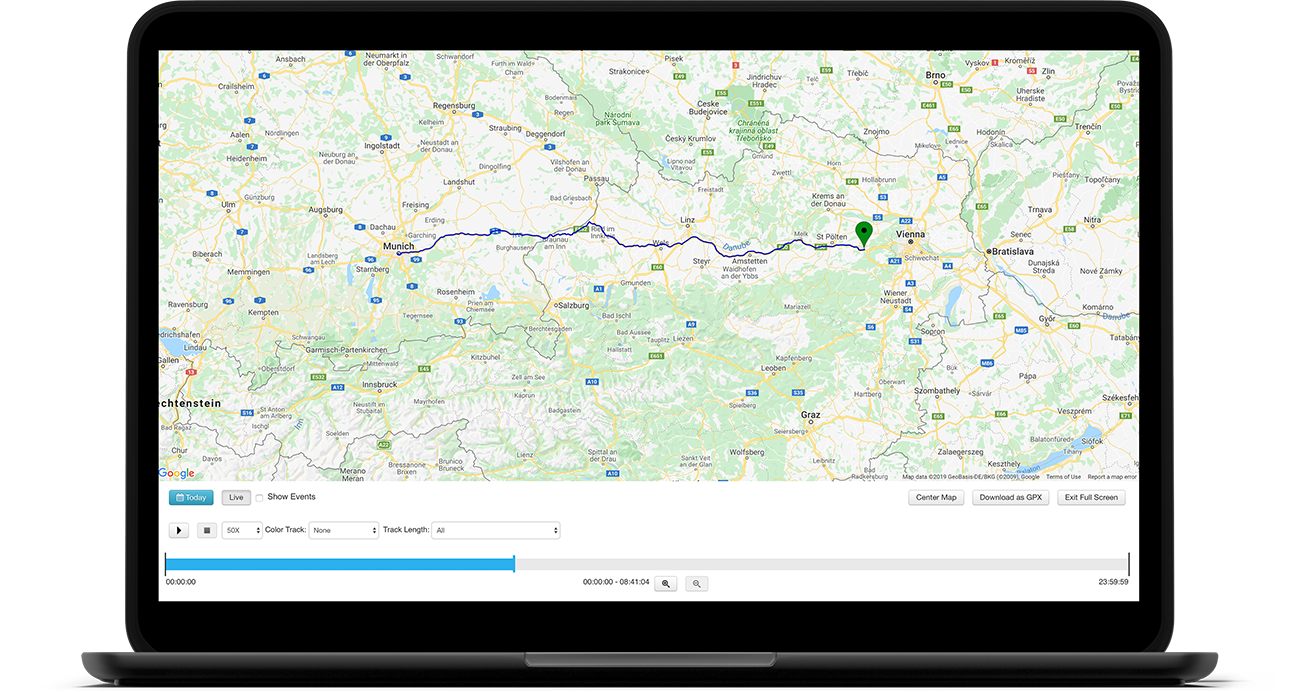

Fleet Tracking and Management

With built-in GPS fleet tracking and InControl 2 cloud-based management, you can keep tabs on location and manage your mobile network from any Internet-connected device.

Specifications:


  MAX HD IP67
Ethernet WAN Ports 1(GE)
Ethernet LAN Ports 1(GE)
Embedded 4G LTE 4
SIM Card Size Mini-SIM (2FF)
Recommended Users 500
Router Throughput ^ 400Mbps
802.1q VLANs Supported 128
Drop-in Mode Yes
High Availability Yes
WAN as LAN Yes
Web Blocking Yes
Web Filtering Blacklist Lite
PepVPN Yes
SpeedFusion - Hot Failover/WAN Smoothing/ Bandwidth Bonding Yes
Number of PepVPN SpeedFusion Peers 2/20 (&)
PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) 150Mbps | 120Mbps
InControl Cloud Management/GPS Fleet Management Yes
Manage Pepwave AP Series Yes
Maximum Number of AP Support 30
Enclosure. Ingress Protection Rating IP-67
PoE Output 1x 802.3at PoE Output (Requires 56V DC input for full 25.5W PoE+ Output)
Power Input DC: 12V – 56V #
Power Consumption 38W (max. w/o PoE)
Dimensions 11.6 x 15.3 x 2.6 inches | 295 x 390 x 66 mm
Weight 9.48 pounds | 4.3 kg
Operating Temperature -40° – 149°F | -40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS
EN 61373:2010 (Shock and Vibration Resistance)
Package Content MAX HD4 IP67
Waterproof Power Connector Kit
2x Waterproof Ethernet Connector Kit
Mounting Kit
Power Requirement 10V – 30V DC
Warranty 1-Year Limited Warranty

Documentation:

Download the MAX HD4 IP67 Datasheet (PDF).
