Pepwave MAX On-The-Go
Secure and Fast Internet or VPN Connections Anywhere You Work.

Pepwave MAX On-The-Go

Call us Today at 844-294-0779 for a price quote!

Pepwave Products
Pepwave MAX mobile router
MAX On-The-Go with Load Balancing (LTE/ 3G)
#MAX-OTG-U4
List Price: $399.00
Call for Lowest Price!
MAX On-The-Go, quad-USB 4G LTE/3G router. Supports PepVPN, SpeedFusion HotFailover, SpeedFusion WAN Smoothing and quad-WAN load balancing & failover
#MAX-OTG-U4-SF
List Price: $599.00
Call for Lowest Price!
Pepwave Max On-The-Go - 1 active USB (Worldwide Carrier)
#MAX-OTG-U1
List Price: $149.00
Call for Lowest Price!

More pricing below, click here!

Overview:

list of supported modemsTurbocharged Mobile Access. Anytime. Everywhere.

The Pepwave MAX On-The-Go/700 bonds the bandwidth four 4G LTE/3G USB modems using SpeedFusionTM technology to deliver secure and fast Internet or VPN connections anywhere. You can even create your own hotspot or boost your bandwidth with available Wi-Fi connections using built-in 802.11n networking, making the MAX On-The-Go/700 the ultimate mobile connectivity solution.

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion Bandwidth Bonding and Seamless Failover

SpeedFusion bandwidth bonding technology bonds all connected bandwidth into a single superfast stream, using the same or different cellular providers.

Unparalleled Modem Compatibility

Unparalleled Modem Compatibility

Supports 250+ USB cellular modems from more than 100 carriers. You can plug in and start surfing instantly. But if not, just connect your modem and turn on Remote Assistance – our engineers will get right to work on adding support for your modem.

Central Management

Central Management

InControl 2 is our cloud based device management, monitoring, and reporting tool. Manage your network with ease using the InControl 2.

Customize Captive Portal

Customize Captive Portal

Branding your captive portal is as easy as uploading your logo and terms & conditions. You can easily set bandwidth allowance and access duration per user or manage access using RADIUS.

Certified Toughness

Certified Toughness

In addition to rugged metal enclosure, HD4 has certifications on: Shock and vibration resistance (EN 61373:1999, IEC 61373:1999) Railway applications (EN 50155) Electromagnetic Compatibility (EN 61000)


Features:


WAN

  • Support for PPPoE, Static IP, DHCP
  • WAN Link Health Check
  • Bandwidth Allowance Monitor
  • USB 4G/3G Modem Support
  • IPv6 Support*
  • Support for Dynamic DNS services
  • WAN Port Convertible into LAN Port*

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Options
  • DHCP Reservation
  • DNS Proxy for LAN Clients
  • VLAN on LAN Support
  • Per-Port VLAN Support

AP Controller*

  • AP Controller Support
  • Wi-Fi Usage Statistics

Load Balancing*

  • Intelligent Failover
  • Session Persistence
  • Per-Service Load Distribution
  • Multiple Algorithms

Complete VPN Solution

  • PepVPN/SpeedFusion Hot Failover*/
  • SpeedFusion Bandwidth Bonding*
    • Site-to-Site VPN
    • Bandwidth Aggregation*
    • Hot Failover*
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
    • X.509 Certificate Support*
  • IPsec VPN (Network-to-Network)
    • X.509 Certificate Support*

Advanced QoS

  • User Groups
    • Bandwidth Reservation*
    • Individual Bandwidth Limit*
  • Application Prioritization
    • By User Groups*
    • SIP, HTTPS, VPN QoS
    • Custom Application QoS

Captive Portal Support*

  • Support for Wired and Wireless LAN Clients
  • Support for RADIUS Authentication
  • Support for LDAP Authentication*
  • Time and Usage Quotas on Open Access Mode
  • Built-in Customizable Splash Page

Certification

  • FCC, CE, RoHS
  • Shock and Vibration Resistance*
  • RF Port Lightning Immunity*

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
  • WINS Server*
  • VRRP HA support*
  • BGP, OSPFv2 and RIPv2 Support

Security

  • Stateful Firewall
  • DoS Prevention
  • Web Blocking
  • Web Filtering Blacklist

*Available on selected models.

Applications:

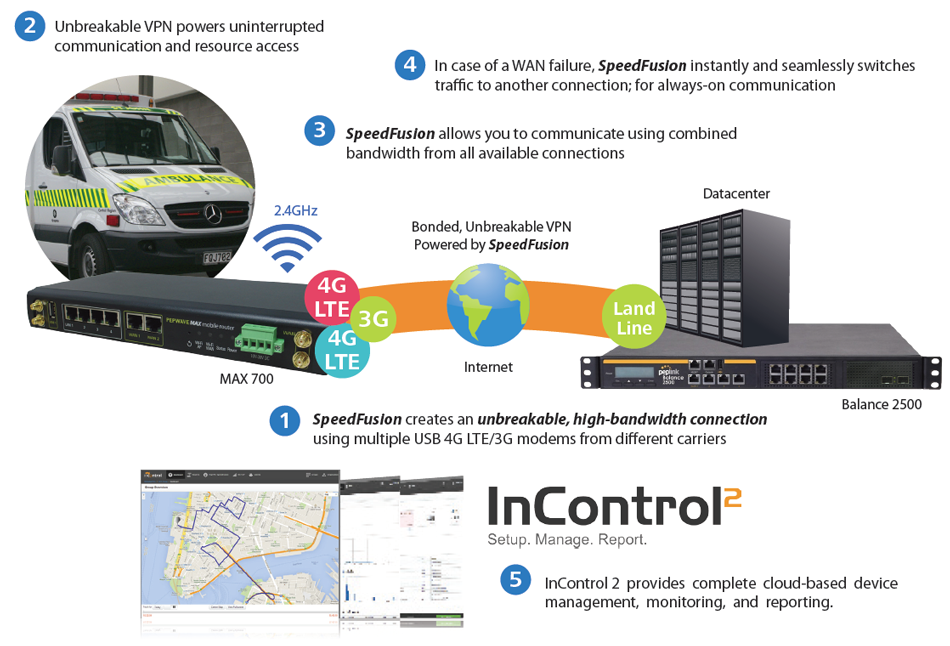

First Responders – Unbreakable VPN for Mission-Critical Emergency Communication

First Responders – Unbreakable VPN for Mission-Critical Emergency Communication

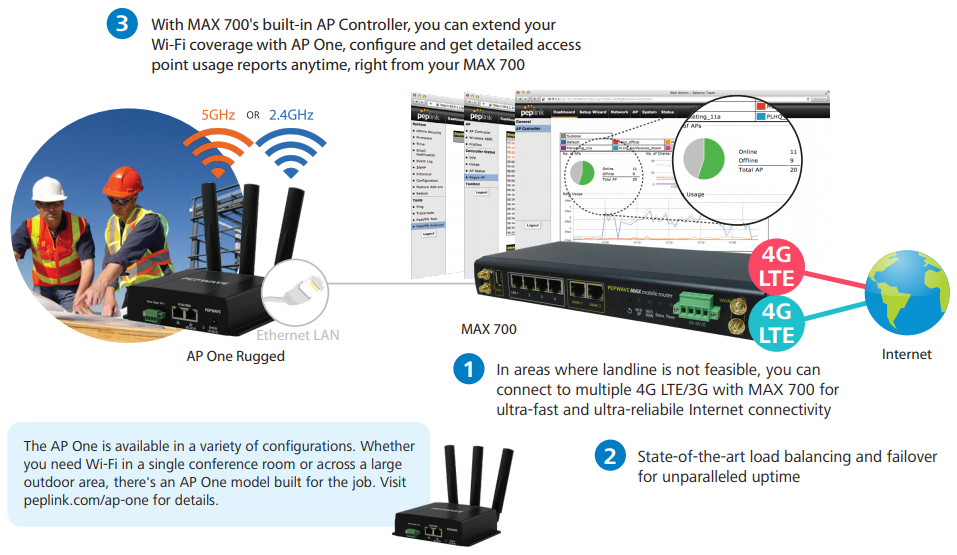

SMBs – Landline Alternative for Construction Site and Remote/Temporary Workstation

SMBs – Landline Alternative for Construction Site and Remote/Temporary Workstation

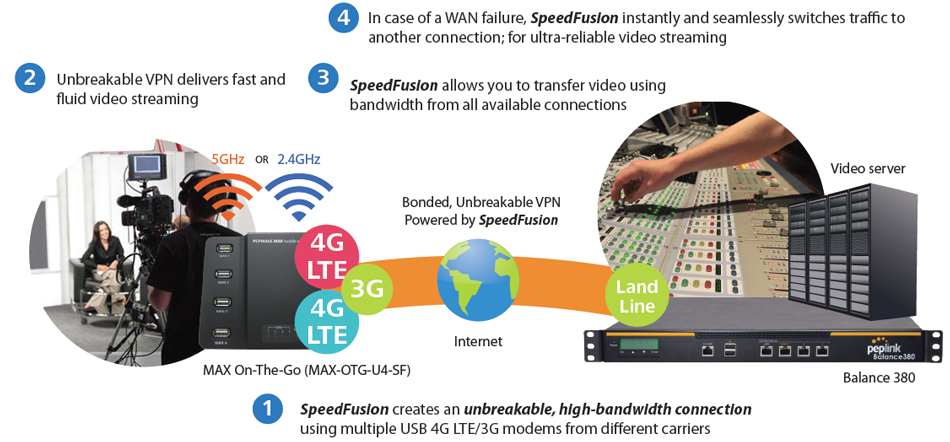

Broadcasting and Media – Blazing Fast Video Broadcast on Multiple 4G LTE/3G Links

Broadcasting and Media – Blazing Fast Video Broadcast on Multiple 4G LTE/3G Links



Specifications:


Model MAX On-The-Go MAX 700
WAN Interface 4x USB Interfaces
1x 10/100M Ethernet Port
4x USB Interfaces
2x 100/1000M Ethernet Ports
LAN Interface 1x 10/100M Ethernet Port 4x 100/1000M Ethernet Ports
W-Fi Interface 1x 802.11a/n or b/g/n 150Mbps
Wi-Fi WAN and/or AP
802.11a/b/g/n 300Mbps Wi-Fi WAN
802.11ac/a/b/g/n 866Mbps Wi-Fi AP
Wi-Fi AP Operating Frequency 2412 – 2472 MHz or 5180 - 5825 MHz 2412 – 2472 MHz and 5180 - 5825 MHz
Simultaneous Dual-Band Wi-Fi AP
Router Throughput 100Mbps 200Mbps
Recommended Users 1-25 25-150
PepVPN
SpeedFusion Hot Failover
SpeedFusion WAN Smoothing
SpeedFusion Bandwidth Bonding
Number of PepVPN/SpeedFusion Peers 2 2/20 +
PepVPN/SpeedFusion Throughput (no encryption) 40Mbps 100Mbps
PepVPN/SpeedFusion Throughput (256-bit AES) 20Mbps 60Mbps
Wi-Fi Antenna Integrated 1dBi Omni Antenna
Switchable to RP-SMA Connector for External Wi-Fi Antenna
4x RP-SMA Connectors
Enclosure Low-Profile, All-Purpose Indoor Metal
Dimension 1.2 x 4.3 x 4.3 inches
30 x 110 x 110 mm
1.6 x 10.2 x 5.7 inches
39.5 x 260 x 143 mm
Weight 0.43 pounds
195 grams
2.65 pounds
1.2 kg
Power Input Device: 10V – 24V DC
AC Adapter: AC Input 100V – 240V,
DC Output 12V, 2A
Device: 12V – 48V DC, 3A
AC Adapter: AC Input 100V –
240V / DC Output 12V
Terminal Block: 12V – 48V DC, 3A
Power Consumption 20W (max.) 28W (max.)
Power Output Up to four 802.3af PoE Outputs*
Operating Temperature -14° – 149°F
-10° – 65°C
-40° – 149°F
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications FCC, CE, RoHS
RF Port Lighting Immunity: ITU-T K.20 (+/- 1.5 kV)
Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999
Warranty 1-Year Limited Warranty

# Feature is available only on MAX-OTG-U4-SF. *PoE Activation Kit is available separately. + The MAX 700 comes with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, it supports up to 20 peers.

Views:

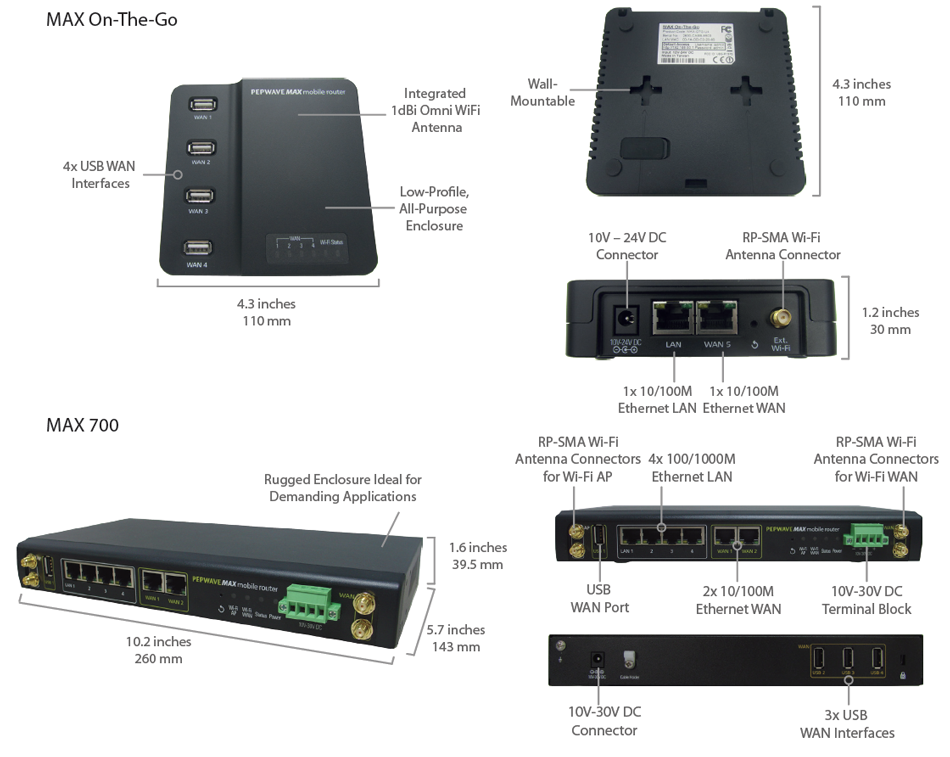

MAX On-The-Go/700 Specifications

Documentation:

Download the Pepwave On-The-Go/700 Datasheet (PDF).

Download the Pepwave MAX Full Comparison Chart (PDF).

Pricing Notes:

Pepwave MAX On-The-Go
MAX On-The-Go with Load Balancing (LTE/ 3G)
#MAX-OTG-U4
List Price: $399.00
Call for Lowest Price!
MAX On-The-Go, quad-USB 4G LTE/3G router. Supports PepVPN, SpeedFusion HotFailover, SpeedFusion WAN Smoothing and quad-WAN load balancing & failover
#MAX-OTG-U4-SF
List Price: $599.00
Call for Lowest Price!
Pepwave Max On-The-Go - 1 active USB (Worldwide Carrier)
#MAX-OTG-U1
List Price: $149.00
Call for Lowest Price!
License Key
Upgrades MAX-OTG-U4 to MAX-OTG-U4-SF
#MAX-OTG-U4-LC-SF
List Price: $249.00
Call for Lowest Price!
Load Balancing License Key for MAX On-The-Go
#MAX-OTG-U1-LC-LB
List Price: $299.00
Call for Lowest Price!
Load Balancing and SpeedFusion WAN Smoothing License Key for MAX On-The-Go
#MAX-OTG-U1-LC-SF
List Price: $499.00
Call for Lowest Price!
Peplink SmartCare
Peplink SmartCare 1-Year for MAX On-The-Go
#PSC-204
List Price: $99.00
Call for Lowest Price!
Peplink SmartCare 3-Year for MAX On-The-Go
#PSC-367
List Price: $279.00
Call for Lowest Price!
Extended Warranty
Extended Warranty for MAX On-The-Go, 1 year
#SVL-727
List Price: $79.00
Call for Lowest Price!
Extended Warranty for MAX On-The-Go, 2 years
#SVL-637
List Price: $139.00
Call for Lowest Price!
