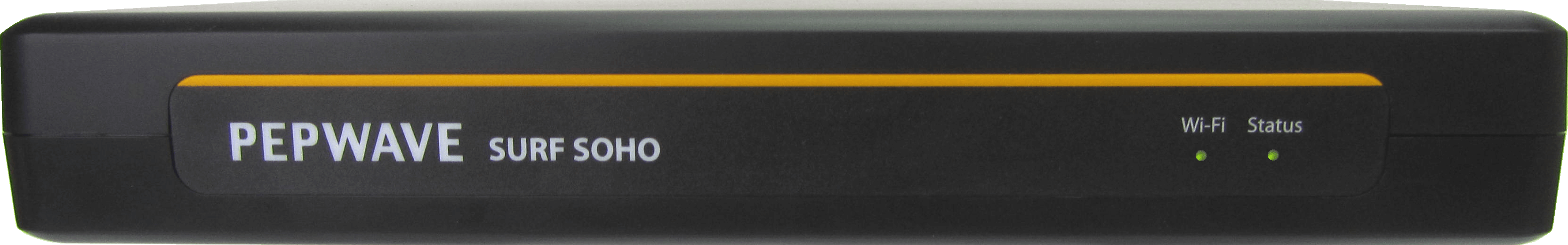

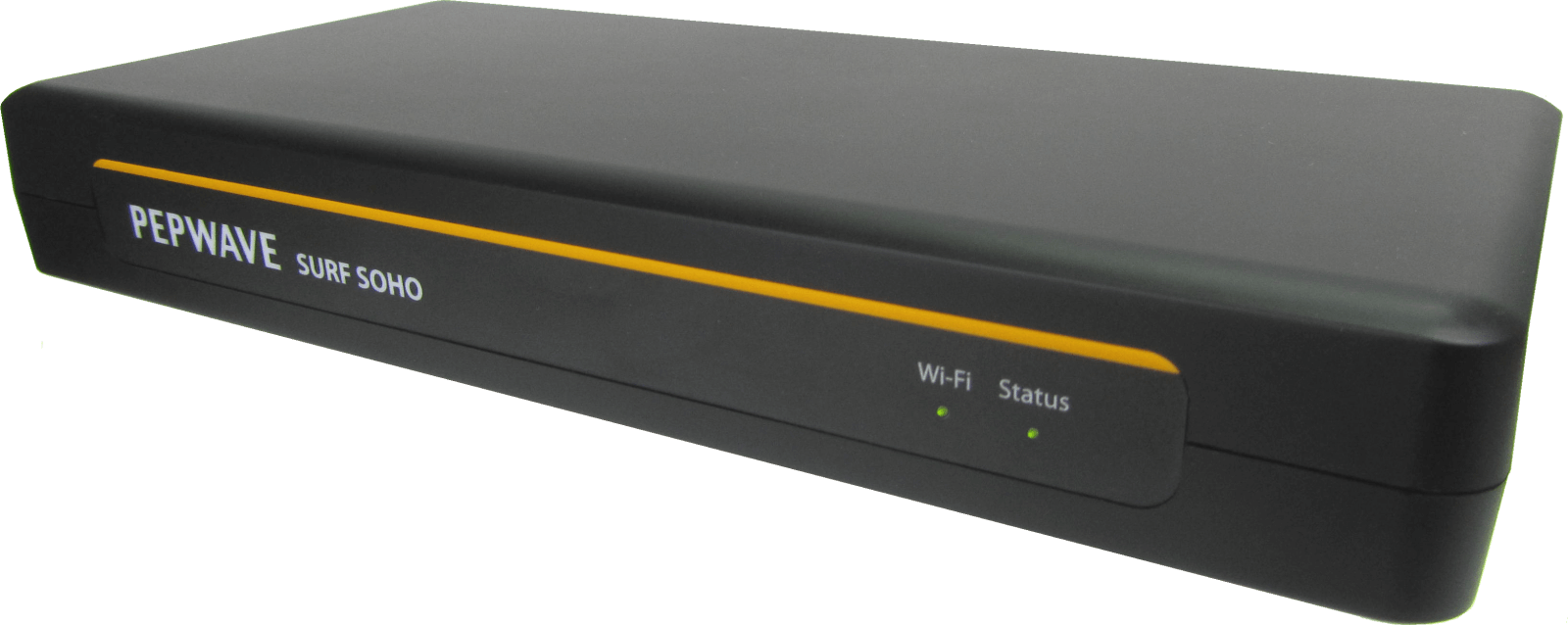

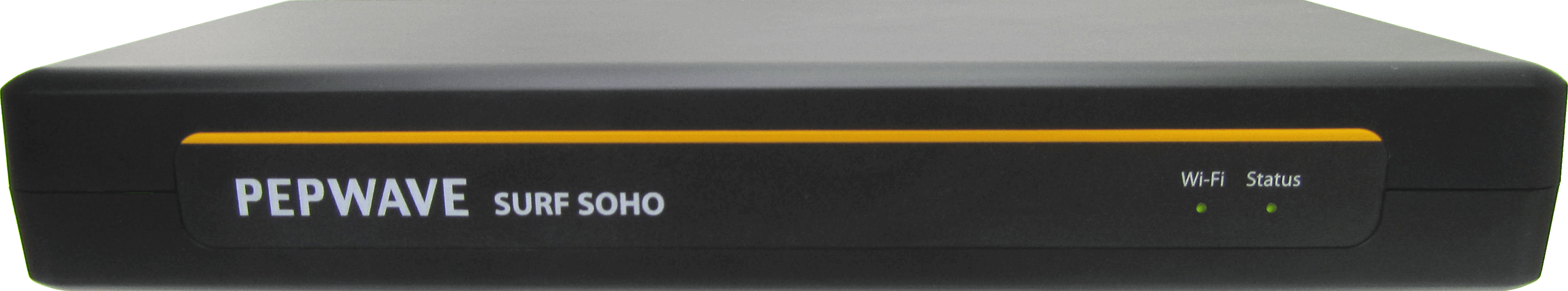

Pepwave Surf SOHO
4G LTE/3G Small Office / Home Office Wi-Fi Router

Pepwave Surf SOHO
Peplink Products
SURF SOHO
SURF SOHO
#SUS-SOHO-T
Contact us for Pricing!

More pricing below, click here!

Overview:

The Surf SOHO is an entry-level router that is secure, reliable, and easy to use. This router will stay with you for the long run.

l1 R1

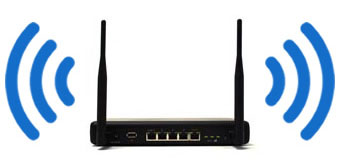

Stay Connected

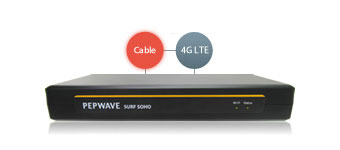

The Surf SOHO supports various connection inputs such as USB cellular modem, ethernet and Wi-Fi to provide fast and up-to-date 11ac Wi-Fi connectivity

Multiple Firmwares

The Surf SOHO also maintains two copies of the current firmware and settings. This is especially useful when configuring or upgrading firmware, where if anything goes wrong, you can restore the previous settings with no hassle.
SURF SOHO SURF SOHO

Wi-Fi Mesh Support

Along with an AP Controller, this feature allows for a mesh extension to your network, which can expand network coverage and minimize dead zones.

Stay Safe and Secure

The Surf SOHO supports various connection inputs such as USB cellular modem, ethernet and Wi-Fi to provide fast and up-to-date 11ac Wi-Fi connectivity
SURF SOHO SURF SOHO

Secure Remote User VPN

With a built-in L2TP server, the Surf SOHO allows multiple VPN connections at the same time, keeping sensitive data safe. Peplink’s advanced SpeedFusion technologies are also supported, such as SpeedFusion Cloud and PepVPN.

Built to Last

Long term firmware support is also provided in the form of new features, enhancements and bug fixes, empowering the Surf SOHO to do more for a long time.


WAN
  • USB 4G / 3G Modem Support
  • Support for PPPoE, Static IP, DHCP
  • Support for Dynamic DNS services
  • WAN Link Health Check

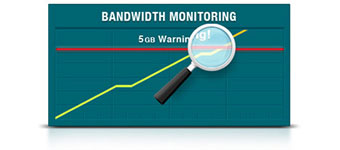

  • Bandwidth Allowance Monitor
  • Intelligent Failover

Security

  • Stateful Firewall
  • DoS Prevention
Complete VPN Solution
  • PepVPN
    • Site-to-Site VPN
    • 256-bit AES Encryption
    • Pre-shared Key Authentication
    • Dynamic Routing
  • PPTP VPN Server

Networking

  • NAT and IP Forwarding
  • Static Routes
  • Port Forwarding
  • Many to One, One to One NAT
  • NAT Pool
  • SIP ALG, H.323 ALG
  • UPnP, NAT-PMP
Advanced QoS
  • Application Prioritization
  • Custom Application QoS
  • SIP, HTTPS, VPN QoS

LAN

  • DHCP Server for LAN Clients
  • Extended DHCP Options
  • DHCP Reservation
  • DNS Proxy for LAN Clients
Device Management
  • Web Administrative Interface
  • Command Line Interface
  • Router Utility Mobile App
  • Email Notification
  • Active Client & Session Lists
  • Bandwidth Usage Statistics
  • Syslog Service
  • SNMP v1, v2c and v3

Cerfications

  • FCC, CE, RoHS

Specifications:


Technical Specifications:
Surf SOHO
xs

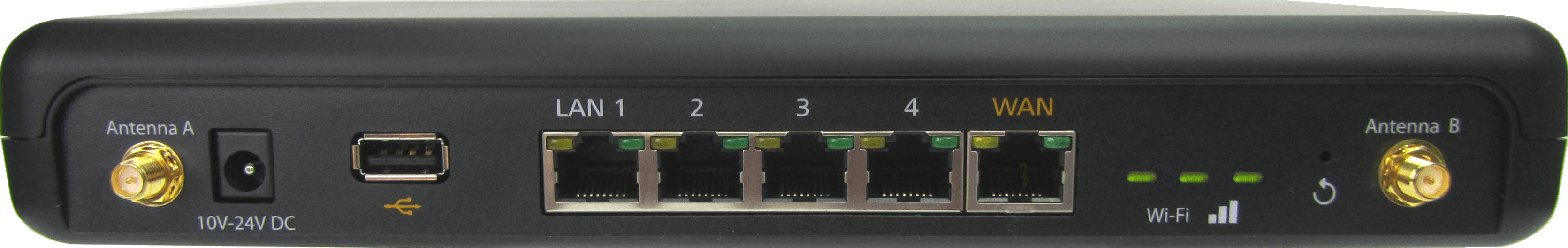

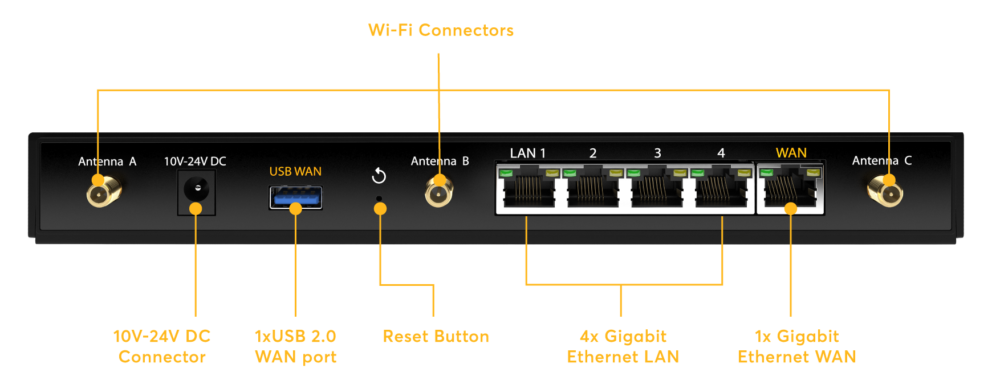

WAN Interface 1x 10/100M Ethernet Port
Wi-Fi as WAN
1x USB Interface
LAN Interface 4x 10/100M Ethernet Ports
Simultaneous Dual-Band 11ac Wi-Fi AP
Wi-Fi AP Operating Frequency 2412 − 2472MHz and 5180 − 5825MHz
Wi-Fi Data Rate 3x3 MIMO, 2.4GHz: 450Mbps or 5GHz: 1300Mbps
Wi-Fi Antenna 3x External Wi-Fi Antenna
Recommended Users 1-25
Router Throughput # 120 Mbps
OpenVPN Server Yes
Number of Simultaneous PPTP VPN Users 3 (Max)
Number of PepVPN Peers 2 (5 with upgrade license)
PepVPN Throughput (256-bit AES) / (No Encryption) 20Mbps / 40Mbps
Power Input DC Jack: 10V − 24VDC
AC Adapter: AC Input 100V − 240V, DC Output 12V, 3A
Power Consumption

26W (max) with USB WAN
22W (max) without USB WAN

Dimension 9.17 x 5.6 x 1.18 inches |
233 x 142.2 x 30 mm
Weight 0.86 pounds | 388 grams
Operating Temperature -14° – 149°F
-10° – 65°C
Humidity 15% - 95% (non-condensing)
Certifications FCC, CE, RoHS
Warranty 1-Year Limited Warranty
Supporting cell suport

Documentation:

Download the Pepwave Surf SOHO Datasheet (PDF).
